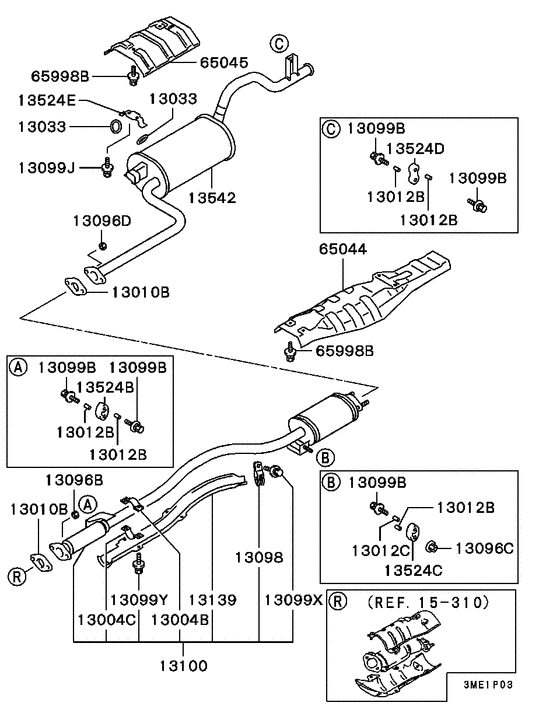

Exhaust pipe & muffler (MPI) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- QA(ABS),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- QA
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13004B
|
13004B
MB313806 BRACKET, EXHAUST PIPE COVER |
MB313806 |
US $13.91 |
||
|
13004C
|
13004C
MB252929 BRACKET, EXHAUST PIPE COVER |
MB252929 |
US $10.51 |
||
|
13010B
|
13010B
MB313070 GASKET, EXHAUST PIPE |
MB313070 |
US $8.73 |
||
|
13010B
|
13010B
MB687000 GASKET, EXHAUST PIPE |
MB687000 |
from US $6.28 |
||
|
13012B
|
13012B
MB313649 COLLAR, EXHAUST PIPE |
MB313649 |
US $1.92 |
||
|
13012B
|
13012B
MB549177 COLLAR, EXHAUST PIPE |
MB549177 |
US $2.60 |
||
|
13012C
|
13012C
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13033
|
13033
MB313732 O-RING, EXHAUST PIPE34 |
MB313732 |
US $3.55 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
13096D
|
13096D
MB313077 NUT, EXHAUST PIPESelf locking,8 |
MB313077 |
US $2.96 |
||
|
13098
|
13098
MB548682 CLAMP, EXHAUST PIPE |
MB548682 |
US $8.88 |
||
|
13099B
|
13099B
MF243657 BOLT, TIMING POWER TRAIN CASEWasher assembled,8x35 |
MF243657 |
US $0.82 |
||
|
13099B
|
13099B
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099B
|
13099B
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.44 |
||
|
13099J
|
13099J
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
13099X
|
13099X
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
13099Y
|
13099Y
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
13100
|
13100
MB577630 PIPE, EXHAUST, FR |
MB577630 |
US $607.15 |
||
|
13139
|
13139
MB548720 PROTECTOR, EXHAUST FR PIPE, FR LWR |
MB548720 |
US $34.04 |
||
|
13524B
|
13524B
MB651141 HANGER, EXHAUST MUFFLER |
MB651141 |
US $18.50 |
||
|
13524C
|
13524C
MB611783 HANGER, EXHAUST MUFFLER |
MB611783 |
US $18.50 |
||
|
13524D
|
13524D
MB313648 HANGER, EXHAUST MUFFLER |
MB313648 |
US $5.92 |
||
|
13524E
|
13524E
MB376004 HANGER, EXHAUST MUFFLER |
MB376004 |
US $14.21 |
||
|
13542
|
13542
MB687727 MUFFLER, EXHAUST MAIN |
MB687727 |
US $400.40 |
||
|
65044
|
65044
MB588885 PROTECTOR, UNDER FLOOR HEAT, FR |
MB588885 |
US $80.66 |
||
|
65045
|
65045
MB310984 PROTECTOR, UNDER FLOOR HEAT, RR |
MB310984 |
US $79.18 |
||
|
65998B
|
65998B
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
