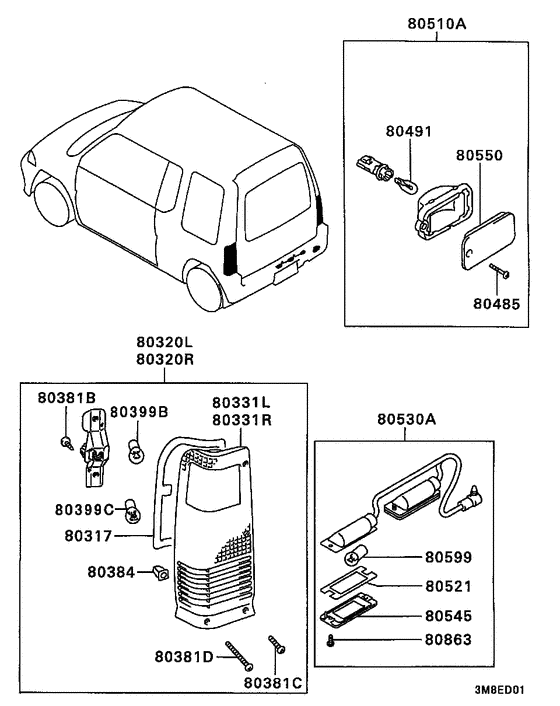

Rear exterior lamp (COMBINATION LAMP,LICENSE PLATE LAMP,ETC.) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- QA(ABS),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- QA
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317
|
80317
MB671877 GASKET, RR COMBINATION LAMP |
MB671877 |
US $10.21 |
||
|
80320L
|
80320L
MB598309 LAMP KIT, COMBINATION, RR LH12v-21/5w,23w |
MB598309 |
US $224.96 |
||
|
80320R
|
80320R
MB598310 LAMP KIT, COMBINATION, RR RH12v-21/5w,23w |
MB598310 |
US $224.96 |
||
|
80331L
|
80331L
MB671873 LAMP UNIT, COMBINATION, RR LH |
MB671873 |
US $168.72 |
||
|
80331R
|
80331R
MB671874 LAMP UNIT, COMBINATION, RR RH |
MB671874 |
US $168.72 |
||
|
80381B
|
80381B
MS450930 SCREW, FR DOOR TRIMTapping,4x12 |
MS450930 |
from US $1.40 |
||
|
80381C
|
80381C
MB671878 SCREW, TAIL LAMPTapping,5x30 |
MB671878 |
US $3.40 |
||
|
80381D
|
80381D
MB671879 SCREW, TAIL LAMPTapping,5x60 |
MB671879 |
US $3.40 |
||
|
80384
|
80384
MB196738 GROMMET, ENG IDLE CONTROL EQUIP5 |
MB196738 |
US $2.24 |
||
| replacement | |||||
|
80384
|
80384
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
80384
|
80384
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
80399B
|
80399B
MF820332 BULB, RR END PANEL GARNISH12v-23w |
MF820332 |
US $4.24 |
||
|
80399C
|
80399C
MS820038 BULB, RR END PANEL GARNISH12v-21/5w |
MS820038 |
from US $3.30 |
||
|
80485
|
80485
MC845427 SCREW, BACKUP LAMP4x5 |
MC845427 |
US $2.52 |
||
|
80491
|
80491
MS820078 BULB, STOP LAMP12v-16w(w16w) |
MS820078 |
from US $3.43 |
||
|
80510A
|
80510A
MB572821 LAMP ASSY, BACKUP12v-16w(18w) |
MB572821 |
US $43.66 |
||
|
80521
|
80521
MB031496 GASKET, LICENSE PLATE LAMP LENS |
MB031496 |
US $6.70 |
||
|
80530A
|
80530A
MB800313 LAMP ASSY, LICENSE PLATE12v-10w |
MB800313 |
US $92.50 |
||
|
80530A
|
80530A
MB882939 LAMP ASSY, LICENSE PLATE12v-10w |
MB882939 |
US $102.12 |
||
|
80545
|
80545
MB070870 LENS, LICENSE PLATE LAMP |
MB070870 |
from US $5.25 |
||
|
80550
|
80550
MB606853 LENS, BACKUP LAMP |
MB606853 |
US $10.06 |
||
|
80599
|
80599
MF820183 BULB, FR TURN SIGNAL LAMP12v-10w |
MF820183 |
from US $2.66 |
||
|
80863
|
80863
MB070412 SCREW, RR END EXTERIOR LAMP4x12 |
MB070412 |
US $2.66 |
||
|
80863
|
80863
MB183548 SCREW, LICENSE PLATE LAMP4x14 |
MB183548 |
US $2.37 |
||
