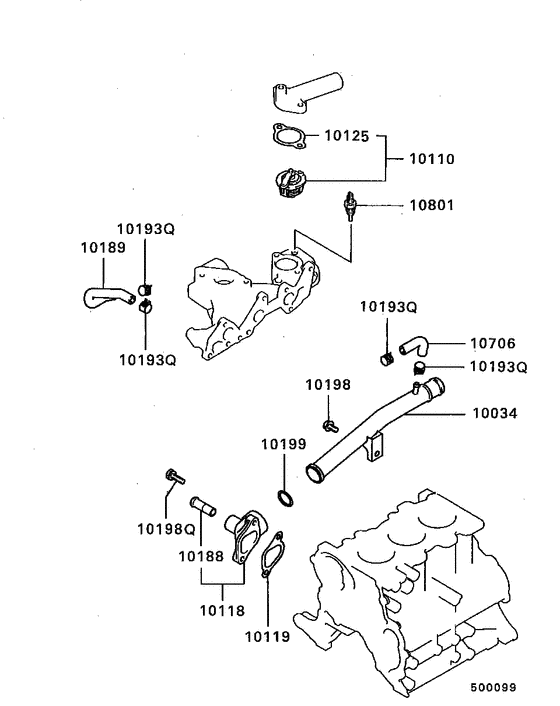

Water pipe & thermostat (SOHC) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- QA(ABS),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- QA
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD113928 PIPE, WATER PUMP INLET |
MD113928 |
US $96.44 |
||
|
10110
|
10110
MD997683
THERMOSTAT KIT
|
MD997683 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A025 THERMOSTAT |
1305A025 |
from US $44.05 |
||
|
10110
|
10110
MD997684
THERMOSTAT KIT
|
MD997684 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A026
THERMOSTAT KIT
|
1305A026 |
— | ||
|
10118
|
10118
MD107414
FITTING, COOLING WATER INLET HOSE
|
MD107414 |
— | ||
|
10119
|
10119
MD107415
GASKET, COOLING WATER INLET HOSE FITTING
|
MD107415 |
— | ||
| replacement | |||||
|
10119
|
10119
MD180278 GASKET, COOLING WATER INLET HOSE FITTING |
MD180278 |
US $3.97 |
||
|
10119
|
10119
MD151429 GASKET, COOLING WATER INLET HOSE FITTING |
MD151429 |
US $2.96 |
||
|
10119
|
10119
MD180278 GASKET, COOLING WATER INLET HOSE FITTING |
MD180278 |
US $3.97 |
||
|
10125
|
10125
MD107395
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD107395 |
— | ||
| replacement | |||||
|
10125
|
10125
MN115087 GASKET, COOLING WATER INLET HOSE FITTING |
MN115087 |
US $3.69 |
||
|
10188
|
10188
MD110306 NIPPLE, COOLING WATER LINE14 |
MD110306 |
US $5.48 |
||
|
10189
|
10189
MD107419 HOSE, COOLING WATER LINE |
MD107419 |
US $17.76 |
||
|
10193Q
|
10193Q
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
10198
|
10198
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
10198Q
|
10198Q
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
10199
|
10199
MD008434 O-RING, COOLING WATER LINE28.6 |
MD008434 |
US $6.43 |
||
|
10706
|
10706
MD136774 HOSE, INLET MANIFOLD WATER BY-PASS |
MD136774 |
US $7.93 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
