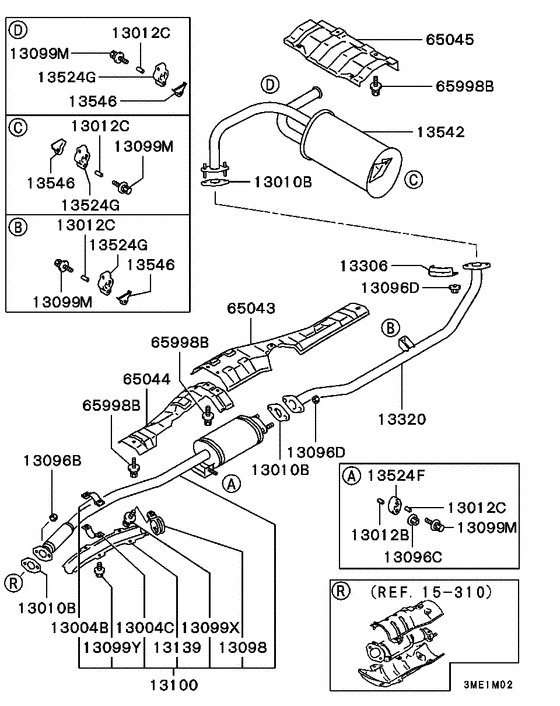

Exhaust pipe & muffler (ALL) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- Q2-4(4WD/DOHC-MPI),3FA/T
- drive
- 4WD/4WD
- transmission
- 3FA/T
- grade
- Q2-4
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13004B
|
13004B
MB549134 BRACKET, EXHAUST PIPE COVER |
MB549134 |
US $14.36 |
||
|
13004C
|
13004C
MB376206 BRACKET, EXHAUST PIPE COVER |
MB376206 |
US $13.17 |
||
|
13010B
|
13010B
MB313070 GASKET, EXHAUST PIPE |
MB313070 |
US $8.73 |
||
|
13010B
|
13010B
MB687000 GASKET, EXHAUST PIPE |
MB687000 |
from US $5.97 |
||
|
13012B
|
13012B
MB313649 COLLAR, EXHAUST PIPE |
MB313649 |
US $1.92 |
||
|
13012B
|
13012B
MB549177 COLLAR, EXHAUST PIPE |
MB549177 |
US $2.60 |
||
|
13012C
|
13012C
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $2.11 |
||
|
13096C
|
13096C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
13096D
|
13096D
MB313077 NUT, EXHAUST PIPESelf locking,8 |
MB313077 |
US $2.96 |
||
|
13098
|
13098
MB252930 CLAMP, EXHAUST PIPE |
MB252930 |
US $6.81 |
||
|
13099M
|
13099M
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099M
|
13099M
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.44 |
||
|
13099X
|
13099X
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
13099Y
|
13099Y
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
13100
|
13100
MB611627 PIPE, EXHAUST, FR |
MB611627 |
US $607.15 |
||
|
13139
|
13139
MB611637 PROTECTOR, EXHAUST FR PIPE, FR LWR |
MB611637 |
US $34.78 |
||
|
13306
|
13306
MB651162 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB651162 |
US $18.50 |
||
|
13320
|
13320
MB611813 PIPE, EXHAUST, CTR |
MB611813 |
US $214.60 |
||
|
13524F
|
13524F
MB611783 HANGER, EXHAUST MUFFLER |
MB611783 |
US $18.50 |
||
|
13524G
|
13524G
MB313278 HANGER, EXHAUST MUFFLER |
MB313278 |
US $18.50 |
||
|
13524G
|
13524G
MB514063
HANGER, EXHAUST MUFFLER
|
MB514063 |
— | ||
| replacement | |||||
|
13524G
|
13524G
MR281858 HANGER, EXHAUST MUFFLER |
MR281858 |
US $11.22 |
||
|
13542
|
13542
MB810518 MUFFLER, EXHAUST MAIN |
MB810518 |
US $422.24 |
||
|
13546
|
13546
MB313866 PROTECTOR, EXHAUST MUFFLER HANGER |
MB313866 |
US $16.28 |
||
|
65043
|
65043
MB311421 PROTECTOR, UNDER FLOOR HEAT, CTR |
MB311421 |
US $75.48 |
||
|
65044
|
65044
MB588159 PROTECTOR, UNDER FLOOR HEAT, FR |
MB588159 |
US $72.52 |
||
|
65045
|
65045
MB311423 PROTECTOR, UNDER FLOOR HEAT, RR |
MB311423 |
US $79.18 |
||
|
65998B
|
65998B
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
