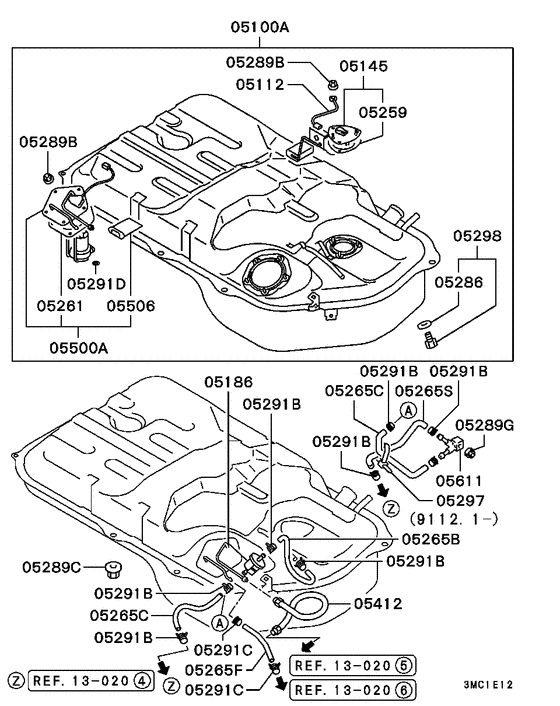

Fuel tank (FUEL TANK) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- Q2-4(4WD/DOHC-MPI),3FA/T
- drive
- 4WD/4WD
- transmission
- 3FA/T
- grade
- Q2-4
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100A
|
05100A
MB658472 FUEL TANK ASSY |
MB658472 |
US $1,468.80 |
||
|
05100A
|
05100A
MB893452 FUEL TANK ASSY |
MB893452 |
US $1,512 |
||
|
05100A
|
05100A
MB893453 FUEL TANK ASSY |
MB893453 |
US $1,512 |
||
|
05112
|
05112
MB330744 CABLE, FUEL TANK GAUGE |
MB330744 |
US $5.75 |
||
|
05145
|
05145
MB530614
GAUGE UNIT, FUEL TANK
|
MB530614 |
— | ||
|
05186
|
05186
MB248865
VALVE, FUEL TANK VAPOR HOSE 2-WAY
|
MB248865 |
— | ||
| replacement | |||||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05259
|
05259
MB382513 GASKET, FUEL TANK GAUGE |
MB382513 |
from US $4.45 |
||
|
05261
|
05261
MB400686 GASKET, FUEL TANK PUMP |
MB400686 |
from US $5.09 |
||
|
05265B
|
05265B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265C
|
05265C
MB893457 HOSE, FUEL TANK |
MB893457 |
US $12.58 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265F
|
05265F
MB678747 HOSE, FUEL TANK |
MB678747 |
US $22.20 |
||
|
05265S
|
05265S
MB893458 HOSE, FUEL TANK |
MB893458 |
US $8.58 |
||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
05289G
|
05289G
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
05291B
|
05291B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291C
|
05291C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291D
|
05291D
MB595892 CLIP, FUEL TANK |
MB595892 |
US $1.92 |
||
|
05297
|
05297
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
05412
|
05412
MB554995 HOSE, FUEL HIGH PRESSURE |
MB554995 |
US $133.20 |
||
|
05500A
|
05500A
MB595539 FUEL PUMP ASSY |
MB595539 |
US $988.62 |
||
|
05506
|
05506
MB595891
FILTER, FUEL PUMP
|
MB595891 |
— | ||
|
05611
|
05611
MB400815 CHECK VALVE, FUEL VAPOR CONTROL |
MB400815 |
from US $13.26 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
