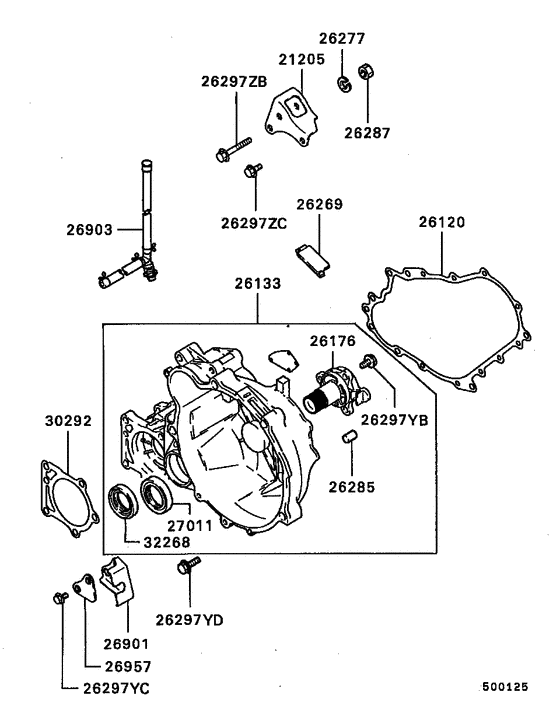

A/t case (ALL (CONVERTER HOUSING ETC.)) Diagram Mitsubishi MINICA TOPPO
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- C2-4(4WD/TOKUSOU-200KG),3FA/T
- drive
- 4WD/4WD
- transmission
- 3FA/T
- grade
- C2-4
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21205
|
21205
MD737537 BRACKET, T/M MOUNTING ROLL ROD |
MD737537 |
US $36.26 |
||
|
26120
|
26120
MD731934 GASKET, A/T CASE TO CLUTCH HOUSING |
MD731934 |
US $21.46 |
||
|
26120
|
26120
MR305848 GASKET, A/T CASE TO CLUTCH HOUSING |
MR305848 |
US $21.46 |
||
|
26133
|
26133
MD735325 HOUSING, A/T TORQUE CONVERTER |
MD735325 |
US $684.32 |
||
|
26176
|
26176
MD726199 SHAFT, A/T CONVERTER HOUSING REACTION |
MD726199 |
US $204.24 |
||
|
26269
|
26269
MD715349 COVER, CLUTCH HOUSING INSPECTION HOLE |
MD715349 |
US $5.18 |
||
|
26277
|
26277
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
26285
|
26285
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
26287
|
26287
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
26297YB
|
26297YB
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
26297YC
|
26297YC
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
26297YD
|
26297YD
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
from US $1.01 |
||
|
26297YD
|
26297YD
MR110892 BOLT, A/T CASEWasher assmbled,8x28 |
MR110892 |
US $6.22 |
||
|
26297ZB
|
26297ZB
MF140270 BOLT, ENG SUPPORT RODFlange,10x60 |
MF140270 |
from US $2.01 |
||
|
26297ZC
|
26297ZC
MF140257 BOLT, M/T CASEFlange,10x18 |
MF140257 |
from US $1.33 |
||
|
26901
|
26901
MD732263 BRACKET, A/T CONTROL CABLE SUPPORT |
MD732263 |
US $12.14 |
||
|
26903
|
26903
MD736404 HOSE, A/T BREATHER |
MD736404 |
US $45.88 |
||
|
26957
|
26957
MD735648 INSULATOR, A/T CONTROL CABLE SUPPORT BRACKET |
MD735648 |
US $10.80 |
||
|
27011
|
27011
MD707575 OIL SEAL, A/T OIL PUMP BODY |
MD707575 |
from US $10.51 |
||
| replacement | |||||
|
27011
|
27011
MR967673 OIL SEAL, A/T CONVERTER HOUSING |
MR967673 |
from US $8.29 |
||
|
30292
|
30292
MD733782 GASKET, T/F CASE |
MD733782 |
US $6.66 |
||
| replacement | |||||
|
30292
|
30292
3201A016 GASKET, T/F CASE |
3201A016 |
US $7.52 |
||
|
30292
|
30292
MR110541 GASKET, T/F CASE |
MR110541 |
US $5.92 |
||
| replacement | |||||
|
30292
|
30292
3201A016 GASKET, T/F CASE |
3201A016 |
US $7.52 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
