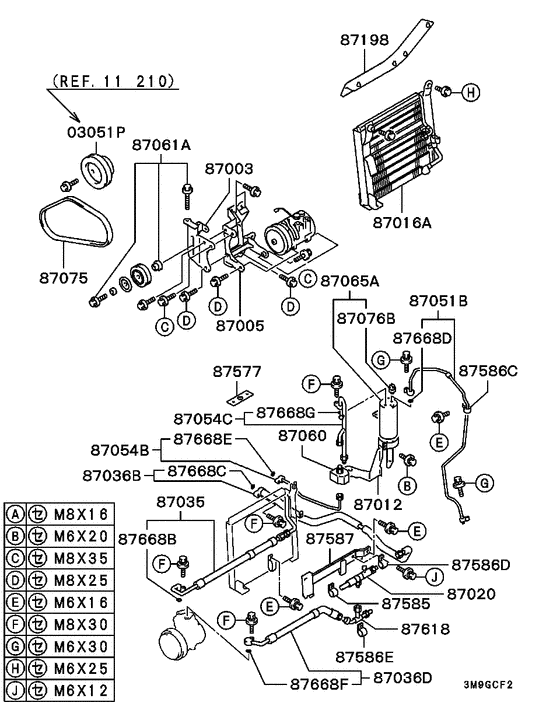

A/c cond, piping(manual:a) (INSULATED TRUCK..A/C PIPING ETC.) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1991
- Sales region
- Japan
- Note
- C2-4(4WD/TOKUSOU BASE),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- C2-4
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03051P
|
03051P
MB657792
PULLEY, CRANKSHAFT
|
MB657792 |
— | ||
|
87003
|
87003
MB609895
BRACKET, A/C COMPRESSOR TENSION PULLEY
|
MB609895 |
— | ||
|
87003
|
87003
MB847248
BRACKET, A/C COMPRESSOR TENSION PULLEY
|
MB847248 |
— | ||
|
87005
|
87005
MB568767
BRACKET, A/C COMPRESSOR
|
MB568767 |
— | ||
|
87005
|
87005
MB847247
BRACKET, A/C COMPRESSOR
|
MB847247 |
— | ||
|
87012
|
87012
MB657799
BRACKET, A/C RECEIVER
|
MB657799 |
— | ||
|
87012
|
87012
MB847233
BRACKET, A/C RECEIVER
|
MB847233 |
— | ||
|
87016A
|
87016A
MB813431
CONDENSER ASSY, A/C REFRIGERANT
|
MB813431 |
— | ||
|
87016A
|
87016A
MB899349
CONDENSER ASSY, A/C REFRIGERANT
|
MB899349 |
— | ||
|
87020
|
87020
MB847243
REGULATOR, A/C EVAPORATOR COMPRESSION
|
MB847243 |
— | ||
|
87035
|
87035
MB813107
HOSE, A/C COMPRESSOR DISCHARGE
|
MB813107 |
— | ||
|
87035
|
87035
MB847238
HOSE, A/C COMPRESSOR DISCHARGE
|
MB847238 |
— | ||
|
87035
|
87035
MB849820
HOSE, A/C COMPRESSOR DISCHARGE
|
MB849820 |
— | ||
|
87036B
|
87036B
MB813109
HOSE, A/C COMPRESSOR SUCTION
|
MB813109 |
— | ||
|
87036B
|
87036B
MB847242
PIPE, A/C COMPRESSOR SUCTION
|
MB847242 |
— | ||
|
87036D
|
87036D
MB847240
HOSE, A/C COMPRESSOR SUCTION
|
MB847240 |
— | ||
|
87051B
|
87051B
MB657800
PIPE, A/C CONDENSER OUTLET
|
MB657800 |
— | ||
|
87054B
|
87054B
MB657801
PIPE, A/C RECEIVER OUTLET
|
MB657801 |
— | ||
|
87054B
|
87054B
MB847241
PIPE, A/C CONDENSER OUTLET
|
MB847241 |
— | ||
|
87054C
|
87054C
MB847234
PIPE, A/C RECEIVER OUTLET
|
MB847234 |
— | ||
|
87060
|
87060
MB847235
VALVE, A/C RECEIVER SOLENOID
|
MB847235 |
— | ||
|
87061A
|
87061A
MB609129
PULLEY ASSY, A/C COMPRESSOR TENSION
|
MB609129 |
— | ||
|
87065A
|
87065A
MB657797
RECEIVER ASSY, A/C
|
MB657797 |
— | ||
|
87075
|
87075
MB379907
BELT, A/C
|
MB379907 |
— | ||
|
87075
|
87075
MB879876
BELT, A/C
|
MB879876 |
— | ||
|
87076B
|
87076B
MB276842
SWITCH, A/C REFRIGERANT PIPE PRESSURE
|
MB276842 |
— | ||
|
87198
|
87198
MB568762
SEAL, A/C CONDENSER
|
MB568762 |
— | ||
|
87577
|
87577
MB847250
SPACER, A/C PIPING
|
MB847250 |
— | ||
|
87585
|
87585
MB123730
CLIP, T/M OIL COOLER LINE
|
MB123730 |
— | ||
|
87586C
|
87586C
MU470035
CLAMP, A/C PIPING
|
MU470035 |
— | ||
|
87586D
|
87586D
MB568119
CLAMP, A/C PIPING
|
MB568119 |
— | ||
|
87587
|
87587
MB847245
BRACKET, A/C PIPING
|
MB847245 |
— | ||
|
87618
|
87618
MB847244
PIPE, A/C COMPRESSOR SUCTION
|
MB847244 |
— | ||
|
87668B
|
87668B
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
||
|
87668C
|
87668C
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
||
|
87668D
|
87668D
MB276731
O-RING, A/C PIPING
|
MB276731 |
— | ||
|
87668D
|
87668D
MB869686
O-RING, A/C PIPING
|
MB869686 |
— | ||
|
87668E
|
87668E
MB276213 O-RING, A/C PIPING8 |
MB276213 |
from US $1.23 |
||
|
87668E
|
87668E
MB869686
O-RING, A/C PIPING
|
MB869686 |
— | ||
|
87668F
|
87668F
MB630421
O-RING, A/C PIPING
|
MB630421 |
— | ||
|
87668G
|
87668G
MB276213 O-RING, A/C PIPING8 |
MB276213 |
from US $1.23 |
||
|
