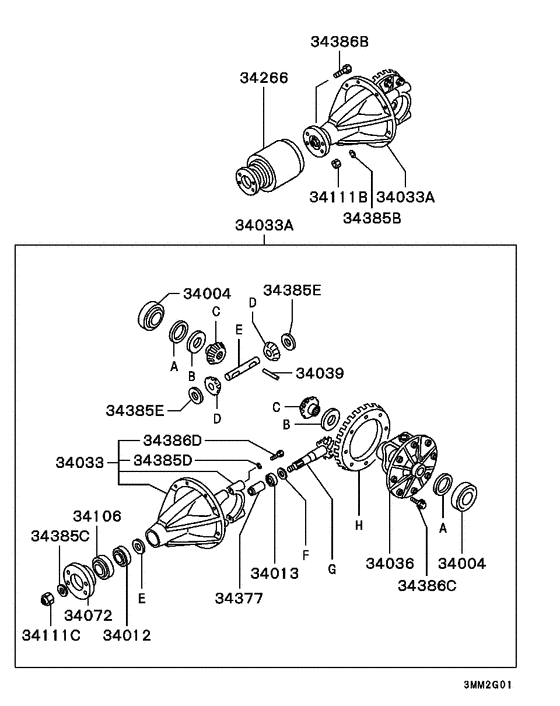

Rear axle differential (STD DIFFERENTIAL ASSY) Diagram Mitsubishi MINICA TOPPO
- Year
- 1990 - 1991
- Sales region
- Japan
- Note
- C2-4(4WD/TOKUSOU BASE),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- C2-4
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34004
|
34004
MB092275 BEARING, RR DIFF CASETaper roller,62.00x18.00-35.00 |
MB092275 |
US $51.06 |
||
|
34012
|
34012
MV033164 BEARING, FR DIFF DRIVE PINION, FRTaper roller,52x19.25-25 |
MV033164 |
US $41.72 |
||
|
34013
|
34013
MV033164 BEARING, FR DIFF DRIVE PINION, FRTaper roller,52x19.25-25 |
MV033164 |
US $41.72 |
||
|
34033
|
34033
MB664322 CARRIER, RR DIFF |
MB664322 |
US $390.21 |
||
|
34033A
|
34033A
MB664319 CARRIER ASSY, RR DIFF4.222 |
MB664319 |
US $1,540.80 |
||
|
34036
|
34036
MB569445 CASE, RR DIFF |
MB569445 |
US $113.22 |
||
|
34039
|
34039
MT206970 PIN, FR DIFF4x32 |
MT206970 |
US $2.37 |
||
|
34072
|
34072
MB664324 FLANGE, RR DIFF COMPANION |
MB664324 |
US $79.18 |
||
|
34072
|
34072
MR110791 FLANGE, RR DIFF COMPANION |
MR110791 |
US $70.30 |
||
|
34106
|
34106
MB092620
OIL SEAL, RR DIFF DRIVE PINION
|
MB092620 |
— | ||
| replacement | |||||
|
34106
|
34106
3515A059 OIL SEAL, FR DIFF DRIVE PINION |
3515A059 |
from US $14.55 |
||
|
34111B
|
34111B
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
34111C
|
34111C
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.76 |
||
|
34266
|
34266
MB664514 COUPLING UNIT, RR DIFF HYDRAULIC |
MB664514 |
US $1,454.40 |
||
|
34266
|
34266
MB664709 COUPLING UNIT, RR DIFF HYDRAULIC |
MB664709 |
US $1,684.80 |
||
|
34377
|
34377
MB664335 SPACER, RR DIFF PINION BEARING48.2 |
MB664335 |
US $27.36 |
||
|
34377
|
34377
MB664336 SPACER, RR DIFF PINION BEARING48.8 |
MB664336 |
US $7.10 |
||
|
34385B
|
34385B
MS450042 WASHER, PROPELLER SHAFTSpring,8 |
MS450042 |
from US $1.79 |
||
|
34385C
|
34385C
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.76 |
||
|
34385D
|
34385D
MS450042 WASHER, PROPELLER SHAFTSpring,8 |
MS450042 |
from US $1.79 |
||
|
34385E
|
34385E
MB073182 WASHER, M/T POWER TRAINPlain,15 |
MB073182 |
from US $3.35 |
||
|
34386B
|
34386B
MB393979 BOLT, RR DIFF8x22 |
MB393979 |
US $2.52 |
||
|
34386C
|
34386C
MB001256 BOLT, FR DIFFFlange,8x16 |
MB001256 |
US $2.52 |
||
|
34386D
|
34386D
MB290316 BOLT, RR DIFFCap,8x45 |
MB290316 |
US $3.85 |
||
