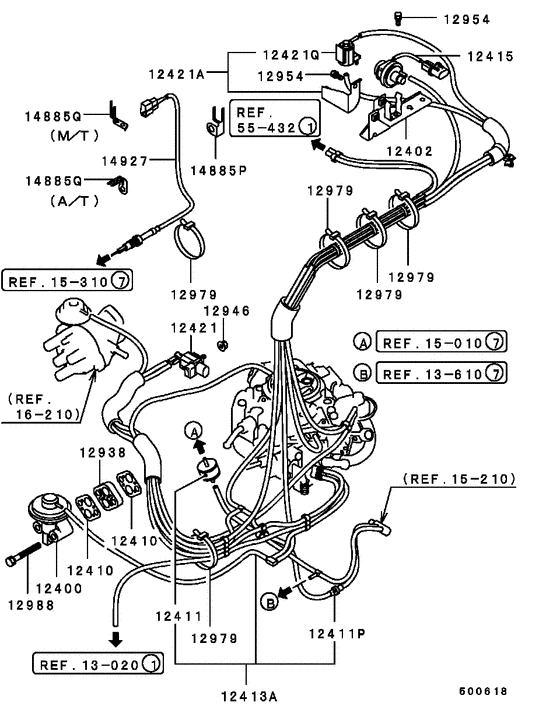

Emission control (ALL) Diagram Mitsubishi MINICA TOPPO
- Year
- 1995 - 1998
- Sales region
- Japan
- Note
- Q(3DOOR),3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- Q
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD306561 VALVE, EGR |
MD306561 |
US $156.88 |
||
|
12402
|
12402
MD301217 BRACKET, EMISSION VACUUM CONTROL SWITCH |
MD301217 |
US $16.28 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411
|
12411
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12411P
|
12411P
MB188950 CHECK VALVE, EMISSION CONTROL |
MB188950 |
from US $13.27 |
||
|
12413A
|
12413A
MD190993 HOSE ASSY, EMISSION VACUUM CONTROL |
MD190993 |
US $105.08 |
||
|
12415
|
12415
MD116503 SWITCH, EMISSION VACUUM CONTROL |
MD116503 |
US $85.10 |
||
|
12421
|
12421
MD320312 VALVE, EMISSION SOLENOID |
MD320312 |
US $64.38 |
||
|
12421A
|
12421A
MD304681 VALVE ASSY, EMISSION SOLENOID |
MD304681 |
US $72.52 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12938
|
12938
MD304688 SPACER, EGR EQUIP11 |
MD304688 |
US $36.26 |
||
|
12946
|
12946
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
12954
|
12954
MS240094 BOLT, FUEL TANKWasher assembled,6x12 |
MS240094 |
US $2.60 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MD129756 CLAMP, A/T CONTROL EQUIP |
MD129756 |
US $3.40 |
||
|
12988
|
12988
MF241265 BOLT, ROCKER COVERWasher assembled,8x60 |
MF241265 |
from US $1.42 |
||
|
14885P
|
14885P
MR126723 CLAMP, EXHAUST HIGH TEMPERATURE SENSOR |
MR126723 |
US $4.14 |
||
|
14885Q
|
14885Q
MR160207 CLAMP, EXHAUST HIGH TEMPERATURE SENSOR |
MR160207 |
US $3.26 |
||
|
14927
|
14927
MB925502 SENSOR, EXHAUST HIGH TEMPERATURE |
MB925502 |
US $236.80 |
||
|
