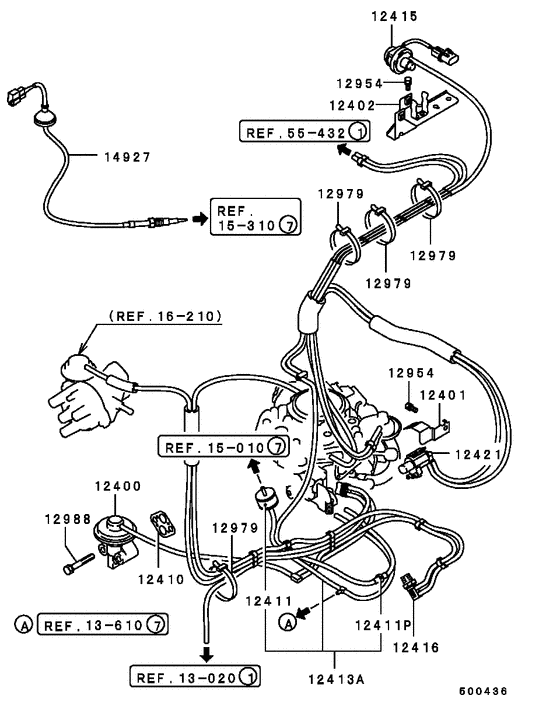

Emission control (-9408.3 W/ A/C,P/S) Diagram Mitsubishi MINICA TOPPO
- Year
- 1993 - 1998
- Sales region
- Japan
- Note
- U2(2DOOR/SUPER HIGH ROOF),3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- U2
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD121295 VALVE, EGR |
MD121295 |
US $182.04 |
||
|
12401
|
12401
MD305043 BRACKET, EMISSION CONTROL EQUIP |
MD305043 |
US $7.55 |
||
|
12402
|
12402
MD301217 BRACKET, EMISSION VACUUM CONTROL SWITCH |
MD301217 |
US $16.28 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12411
|
12411
MD041839 CHECK VALVE, EMISSION CONTROL |
MD041839 |
US $20.72 |
||
|
12411P
|
12411P
MB188950 CHECK VALVE, EMISSION CONTROL |
MB188950 |
from US $13.27 |
||
|
12413A
|
12413A
MD190992 HOSE ASSY, EMISSION VACUUM CONTROL |
MD190992 |
US $168.72 |
||
|
12413A
|
12413A
MD199722 HOSE ASSY, EMISSION VACUUM CONTROL |
MD199722 |
US $162.80 |
||
|
12415
|
12415
MD132631 SWITCH, EMISSION VACUUM CONTROL |
MD132631 |
US $106.56 |
||
|
12416
|
12416
MD120694 THERMO-VALVE, EMISSION CONTROL |
MD120694 |
US $23.26 |
||
|
12421
|
12421
MD121540 VALVE, EMISSION SOLENOID |
MD121540 |
US $66.60 |
||
|
12421
|
12421
MD320312 VALVE, EMISSION SOLENOID |
MD320312 |
US $64.38 |
||
|
12954
|
12954
MS240094 BOLT, FUEL TANKWasher assembled,6x12 |
MS240094 |
US $2.60 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
14927
|
14927
MB925500 SENSOR, EXHAUST HIGH TEMPERATURE |
MB925500 |
US $236.80 |
||
|
