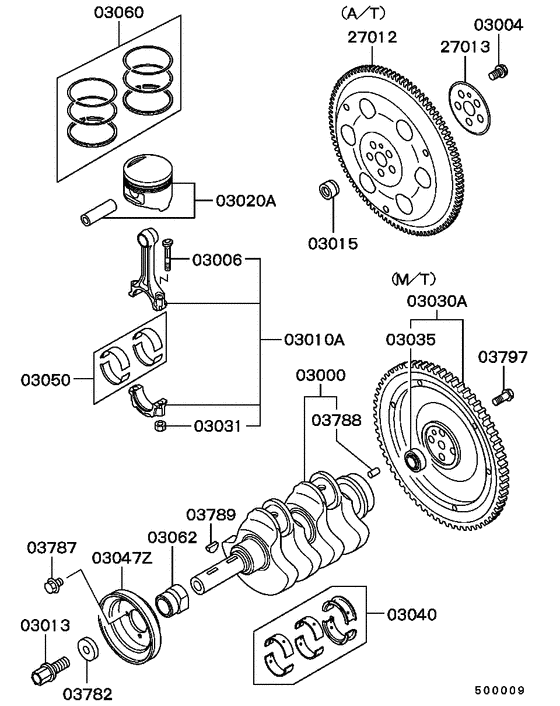

Piston & crankshaft (ALL) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1987
- Sales region
- Japan
- Note
- SUPER DELUX(1-GATE),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- SUPER DELUX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD079616 CRANKSHAFT |
MD079616 |
US $1,094.91 |
||
|
03006
|
03006
MD000705 BOLT, CONNROD |
MD000705 |
from US $5.18 |
||
|
03010A
|
03010A
MD019630 CONNECTING ROD ASSY |
MD019630 |
US $149.48 |
||
|
03013
|
03013
MD071606 CENTER BOLT, CRANKSHAFT PULLEY12x32 |
MD071606 |
US $17.76 |
||
|
03020A
|
03020A
MD074024 PISTON & PIN ASSYStd b |
MD074024 |
US $78.44 |
||
|
03020A
|
03020A
MD097640
PISTON & PIN ASSY
|
MD097640 |
— | ||
|
03030A
|
03030A
MD079617 FLYWHEEL ASSY |
MD079617 |
US $452.82 |
||
|
03030A
|
03030A
MD102425 FLYWHEEL ASSY |
MD102425 |
US $452.82 |
||
|
03031
|
03031
MD000704 NUT, CONNROD8 |
MD000704 |
from US $2.22 |
||
|
03035
|
03035
MD016653 BEARING, FLYWHEEL DRIVE PINIONBall,8x28 |
MD016653 |
from US $7.10 |
||
|
03040
|
03040
MD079646 BEARING SET, CRANKSHAFTPlain,std |
MD079646 |
US $93.24 |
||
|
03040
|
03040
MD079647 BEARING SET, CRANKSHAFTPlain,u/size 0.25 |
MD079647 |
US $111.74 |
||
|
03040
|
03040
MD079648 BEARING SET, CRANKSHAFTPlain,u/size 0.50 |
MD079648 |
US $111.74 |
||
|
03040
|
03040
MD079649 BEARING SET, CRANKSHAFTPlain,u/size 0.75 |
MD079649 |
US $111.74 |
||
|
03047Z
|
03047Z
MD087657 PULLEY, CRANKSHAFT |
MD087657 |
US $36.26 |
||
|
03047Z
|
03047Z
MD096100 PULLEY, CRANKSHAFTV-ditch |
MD096100 |
US $91.02 |
||
|
03050
|
03050
MD079650
BEARING SET, CONNROD
|
MD079650 |
— | ||
|
03050
|
03050
MD079651 BEARING SET, CONNRODPlain,u/size 0.25 |
MD079651 |
US $39.22 |
||
|
03050
|
03050
MD079652 BEARING SET, CONNRODPlain,u/size 0.50 |
MD079652 |
US $39.22 |
||
|
03050
|
03050
MD079653 BEARING SET, CONNRODPlain,u/size 0.75 |
MD079653 |
US $39.22 |
||
|
03060
|
03060
MD019610 RING SET, PISTONStd |
MD019610 |
US $149.48 |
||
|
03062
|
03062
MD061759 SLEEVE, CRANKSHAFT OIL PUMP DRIVE GEAR |
MD061759 |
US $54.76 |
||
|
03782
|
03782
MD016641
WASHER, CRANKSHAFT PULLEY
|
MD016641 |
— | ||
|
03787
|
03787
MF140404 BOLT, CRANKSHAFTFlange,6x14 |
MF140404 |
US $2.19 |
||
|
03788
|
03788
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
03789
|
03789
MD016640 KEY, CRANKSHAFT4x7 |
MD016640 |
US $4.59 |
||
|
03797
|
03797
MD075878 BOLT, FLYWHEELFlange,10x20 |
MD075878 |
US $4.14 |
