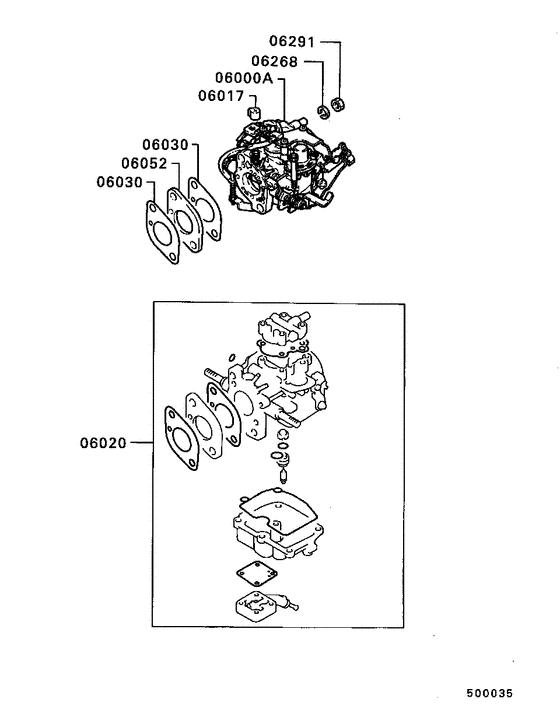

Carburetor (8508.1- (ASSEMBLY)) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- SUPER(3-GATE/ZENNOU),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- SUPER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06000A
|
06000A
MD079657 CARBURETOR ASSY |
MD079657 |
US $1,327.87 |
||
|
06000A
|
06000A
MD099010 CARBURETOR ASSY |
MD099010 |
US $1,429.79 |
||
|
06017
|
06017
MD001010 CAP, CARB IDLE LIMITER |
MD001010 |
US $4.59 |
||
|
06020
|
06020
MD612168 GASKET KIT, CARB |
MD612168 |
US $152.44 |
||
|
06020
|
06020
MD612319 GASKET KIT, CARB |
MD612319 |
US $152.44 |
||
|
06020
|
06020
MD612480 GASKET KIT, CARB |
MD612480 |
US $152.44 |
||
|
06020
|
06020
MD612671 GASKET KIT, CARB |
MD612671 |
US $152.44 |
||
|
06030
|
06030
MD065446 GASKET, CARB |
MD065446 |
US $4 |
||
|
06030
|
06030
MD099014 GASKET, CARB |
MD099014 |
US $3.70 |
||
|
06052
|
06052
MD099013 INSULATOR, CARB HEAT |
MD099013 |
US $10.06 |
||
|
06268
|
06268
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
06268
|
06268
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06291
|
06291
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
06291
|
06291
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
