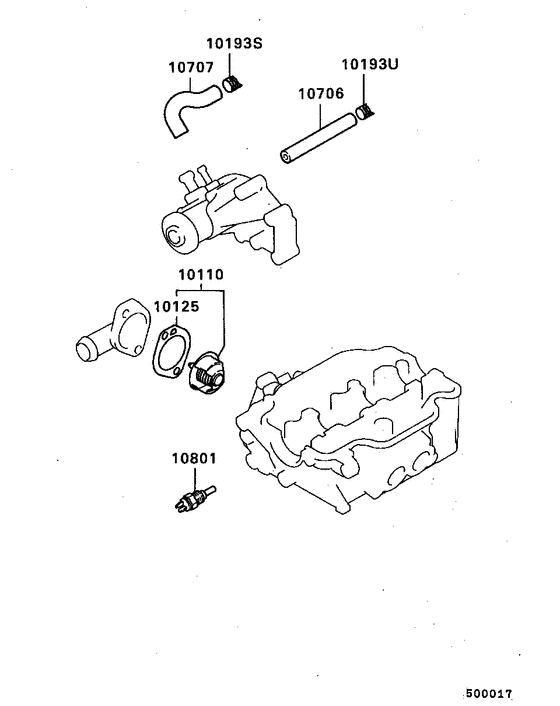

Water pipe & thermostat (ALL) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1987
- Sales region
- Japan
- Note
- STANDARD(CAB&CHASSIS),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- STANDARD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10110
|
10110
MD075460 THERMOSTAT82 |
MD075460 |
US $40.70 |
||
|
10110
|
10110
MD997219 THERMOSTAT KIT82 |
MD997219 |
US $47.36 |
||
|
10125
|
10125
MD017328 GASKET, THERMOSTAT WATER HOSE FITTING |
MD017328 |
US $3.11 |
||
|
10193S
|
10193S
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.62 |
||
|
10193U
|
10193U
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
10706
|
10706
MD064829 HOSE, INLET MANIFOLD WATER BY-PASS |
MD064829 |
US $8.14 |
||
|
10707
|
10707
MD076248 HOSE, CYLINDER HEAD WATER BY-PASS |
MD076248 |
US $17.02 |
||
|
10801
|
10801
MD017920 GAUGE UNIT, WATER TEMPERATURE |
MD017920 |
US $54.76 |
||
|
10801
|
10801
MD104001 GAUGE UNIT, WATER TEMPERATURE |
MD104001 |
US $111 |
