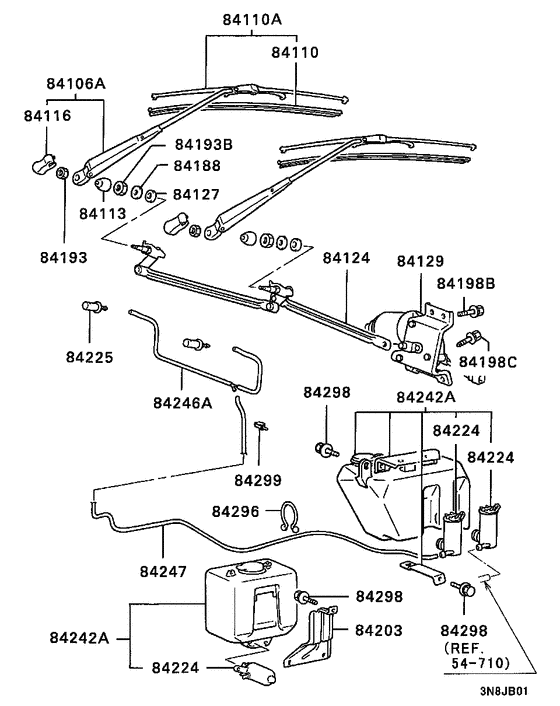

Windshield wiper & washer (8508.1-) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1987
- Sales region
- Japan
- Note
- STANDARD(CAB&CHASSIS),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- STANDARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106A
|
84106A
MB337577 ARM ASSY, WINDSHIELD WIPER |
MB337577 |
US $47.36 |
||
|
84106A
|
84106A
MB543887
ARM ASSY, WINDSHIELD WIPER
|
MB543887 |
— | ||
|
84110
|
84110
MB262904
BLADE, WINDSHIELD WIPER
|
MB262904 |
— | ||
| replacement | |||||
|
84110
|
84110
MB415742 BLADE, WINDSHIELD WIPER |
MB415742 |
from US $9.24 |
||
|
84110A
|
84110A
MB141142 BLADE ASSY, WINDSHIELD WIPER392 |
MB141142 |
US $29.41 |
||
|
84110A
|
84110A
MB543884
BLADE ASSY, WINDSHIELD WIPER
|
MB543884 |
— | ||
| replacement | |||||
|
84110A
|
84110A
MB141142 BLADE ASSY, WINDSHIELD WIPER392 |
MB141142 |
US $29.41 |
||
|
84113
|
84113
MB359387 CAP, WINDSHIELD WIPER PIVOT SEAL |
MB359387 |
US $5.77 |
||
|
84116
|
84116
MB261589
COVER, WINDSHIELD WIPER ARM HEAD
|
MB261589 |
— | ||
|
84124
|
84124
MB337575 LINK, WINDSHIELD WIPER |
MB337575 |
US $90.28 |
||
|
84124
|
84124
MB542233 LINK, WINDSHIELD WIPER |
MB542233 |
US $126.54 |
||
|
84127
|
84127
MB359390 GASKET, WINDSHIELD WIPER PIVOT |
MB359390 |
US $2.96 |
||
|
84127
|
84127
MB542235 GASKET, WINDSHIELD WIPER PIVOT |
MB542235 |
US $4.88 |
||
|
84129
|
84129
MB337568 MOTOR, WINDSHIELD WIPER |
MB337568 |
US $329.06 |
||
|
84188
|
84188
MB359389 WASHER, WINDSHIELD WIPERPlain,14.2 |
MB359389 |
US $3.11 |
||
|
84188
|
84188
MB571715 WASHER, WINDSHIELD WIPERWith/packing,14 |
MB571715 |
US $3.70 |
||
|
84193
|
84193
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
84193B
|
84193B
MB359388 NUT, WINDSHIELD WIPERSpecial,14 |
MB359388 |
US $4.29 |
||
|
84198B
|
84198B
MF247226 BOLT, FUEL LINEWasher assembled,6x20 |
MF247226 |
US $1.92 |
||
|
84198B
|
84198B
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
|
84198C
|
84198C
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
84224
|
84224
MB358361 MOTOR, WINDSHIELD WASHER |
MB358361 |
from US $100.55 |
||
|
84225
|
84225
MB337574 NOZZLE, WINDSHIELD WASHER |
MB337574 |
US $25.90 |
||
|
84242A
|
84242A
MB337605 TANK ASSY, WINDSHIELD WASHER |
MB337605 |
US $180.56 |
||
|
84242A
|
84242A
MB487794 TANK ASSY, WINDSHIELD WASHER |
MB487794 |
US $179.08 |
||
|
84246A
|
84246A
MB337608 TUBE ASSY, WINDSHIELD WASHER |
MB337608 |
US $15.54 |
||
|
84247
|
84247
MB399785 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2150 |
MB399785 |
US $8.73 |
||
|
84296
|
84296
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
84298
|
84298
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
84298
|
84298
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
84298
|
84298
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
|
54 710
|
Wiring & attaching parts
54 710
|
||||
