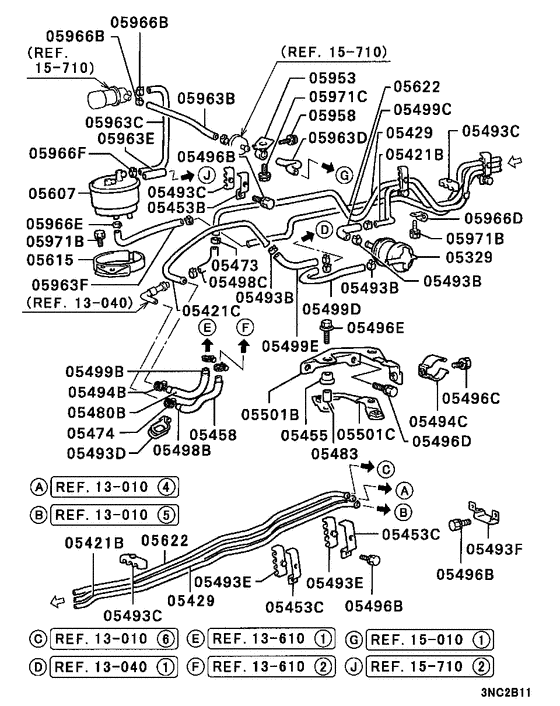

Fuel line & vapor gas control (ALL) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- ESTATE(SUNROOF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- ESTATE
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05329
|
05329
MB554970 STRAINER, FUEL |
MB554970 |
US $12.18 |
||
|
05329
|
05329
MT126160 FUEL FILTER |
MT126160 |
US $11.40 |
||
|
05421B
|
05421B
MB329875 TUBE, FUEL MAIN |
MB329875 |
US $49.58 |
||
|
05421C
|
05421C
MB329888 TUBE, FUEL MAIN |
MB329888 |
US $46.62 |
||
|
05429
|
05429
MB329876 TUBE, FUEL LINE |
MB329876 |
US $49.58 |
||
|
05453B
|
05453B
MB248639 SUPPORT, FUEL LINE |
MB248639 |
US $4 |
||
|
05453C
|
05453C
MB248638 SUPPORT, FUEL LINE |
MB248638 |
US $4.29 |
||
|
05455
|
05455
MB247172 CUSHION, FUEL TANK |
MB247172 |
US $6.81 |
||
|
05458
|
05458
MB032607 TUBE, FUEL RETURN LINESof vinyl,13.5x580 |
MB032607 |
US $4 |
||
|
05473
|
05473
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05474
|
05474
MS660002 CLAMP, FUEL RETURN LINE11 |
MS660002 |
US $2.81 |
||
|
05480B
|
05480B
MB044005
TUBE, FUEL TANK
|
MB044005 |
— | ||
| replacement | |||||
|
05480B
|
05480B
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05483
|
05483
MB043435 SPACER, FUEL TANK8x17 |
MB043435 |
US $10.80 |
||
|
05493B
|
05493B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05493C
|
05493C
MB248632 CLIP, FUEL LINE6.3-4.7-4.7 |
MB248632 |
US $4.10 |
||
|
05493D
|
05493D
MB329886 CLIP, FUEL LINE |
MB329886 |
US $6.66 |
||
|
05493E
|
05493E
MB248637 CLIP, FUEL LINE4.7-6.3-4.7-6.3 |
MB248637 |
US $4.29 |
||
|
05493F
|
05493F
MB329884 CLIP, FUEL LINE |
MB329884 |
US $5.92 |
||
|
05494B
|
05494B
MS660004 CLAMP, FUEL TANK13 |
MS660004 |
US $2.52 |
||
|
05494C
|
05494C
MA141492 CLAMP, FUEL LINE39 |
MA141492 |
US $5.48 |
||
|
05496B
|
05496B
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
05496C
|
05496C
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
05496D
|
05496D
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.01 |
||
|
05496E
|
05496E
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
05498B
|
05498B
MS604098 HOSE, FUEL LINERubber,5x2000 |
MS604098 |
from US $33.95 |
||
|
05498C
|
05498C
MS604098 HOSE, FUEL LINERubber,5x2000 |
MS604098 |
from US $33.95 |
||
|
05499B
|
05499B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05499C
|
05499C
MB248620 HOSE, FUEL TANK5.6x90 |
MB248620 |
US $17.76 |
||
|
05499D
|
05499D
MB348956 HOSE, FUEL LINERubber,5.5x50-160 |
MB348956 |
US $28.86 |
||
|
05499E
|
05499E
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05501B
|
05501B
MB348690 BRACKET, FUEL PUMP |
MB348690 |
US $15.54 |
||
|
05501C
|
05501C
MB348691 BRACKET, FUEL PUMP |
MB348691 |
US $12.88 |
||
|
05607
|
05607
MB248710
CANISTER, FUEL VAPOR
|
MB248710 |
— | ||
|
05615
|
05615
MB400356 HOLDER, FUEL VAPOR CANISTER |
MB400356 |
US $28.86 |
||
|
05622
|
05622
MB329877 PIPE, FUEL VAPOR |
MB329877 |
US $27.38 |
||
|
05953
|
05953
MB400545 HOLDER, EMISSION THERMOSTAT VALVE |
MB400545 |
US $4.59 |
||
|
05958
|
05958
MF350747 SCREW, FUEL VAPOR CONTROL LINEWasher assembled,4x16 |
MF350747 |
US $1.92 |
||
|
05963B
|
05963B
MS605746 HOSE, FUEL TANK8x2000 |
MS605746 |
US $45.14 |
||
|
05963C
|
05963C
MB400337 HOSE, FUEL VAPOR CONTROL LINE |
MB400337 |
US $12.88 |
||
|
05963D
|
05963D
MB400333 HOSE, FUEL VAPOR CONTROL LINE |
MB400333 |
US $13.02 |
||
|
05963E
|
05963E
MS605580 HOSE, FUEL TANK11x2000 |
MS605580 |
US $72.50 |
||
|
05963F
|
05963F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966B
|
05966B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05966D
|
05966D
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
05966E
|
05966E
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966F
|
05966F
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05971B
|
05971B
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
05971C
|
05971C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
