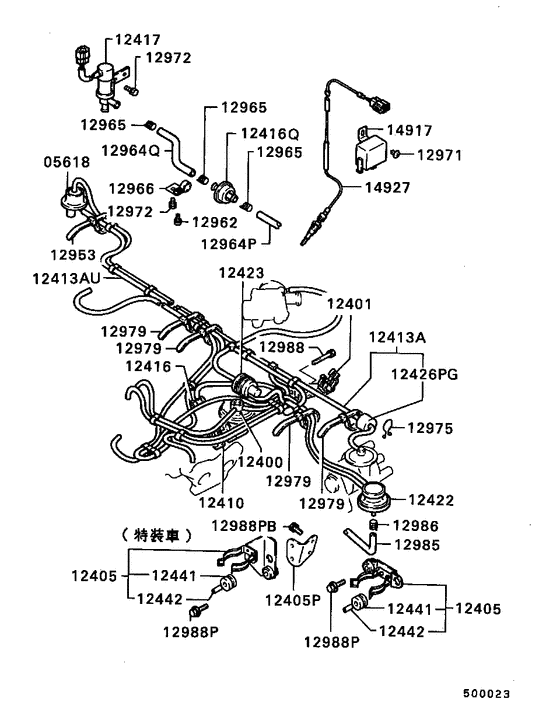

Emission control (ALL) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- ESTATE-CS(SUNROOF),4FM/T
- drive
- 4WD
- transmission
- 4FM/T
- grade
- ESTATE-CS
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD077055 VALVE, PURGE CONTROL |
MD077055 |
US $79.18 |
||
|
12400
|
12400
MD084271 VALVE, EGR |
MD084271 |
US $130.24 |
||
|
12400
|
12400
MD098742 VALVE, EGR |
MD098742 |
US $120.62 |
||
|
12410
|
12410
MD003358
GASKET, EGR VALVE
|
MD003358 |
— | ||
| replacement | |||||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $2.74 |
||
|
12410
|
12410
MD026567 GASKET, EGR VALVE |
MD026567 |
US $2.74 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD086468 HOSE ASSY, EMISSION VACUUM CONTROL |
MD086468 |
US $81.40 |
||
|
12413AU
|
12413AU
MD087653 HOSE ASSY, EMISSION VACUUM CONTROL |
MD087653 |
US $48.10 |
||
|
12416
|
12416
MD067337 THERMO-VALVE, EMISSION CONTROL |
MD067337 |
US $116.18 |
||
|
12416
|
12416
MD110082 THERMO-VALVE, EMISSION CONTROL |
MD110082 |
US $102.86 |
||
|
12416Q
|
12416Q
MD084591 THERMO-VALVE, EMISSION CONTROL |
MD084591 |
US $76.22 |
||
|
12416Q
|
12416Q
MD089484 THERMO-VALVE, EMISSION CONTROL |
MD089484 |
US $94.72 |
||
|
12417
|
12417
MD085055 VALVE, EMISSION CONTROL OTR VENTILATOR |
MD085055 |
US $144.30 |
||
|
12962
|
12962
MF350025 SCREW, FUEL TANKWasher assembled,4x12 |
MF350025 |
US $2.07 |
||
|
12962
|
12962
MF350747 SCREW, FUEL VAPOR CONTROL LINEWasher assembled,4x16 |
MF350747 |
US $1.92 |
||
|
12964P
|
12964P
MD103947 HOSE, FUEL VAPOR CONTROL |
MD103947 |
US $10.80 |
||
|
12964Q
|
12964Q
MD103946 HOSE, FUEL VAPOR CONTROL |
MD103946 |
US $17.02 |
||
|
12965
|
12965
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
12966
|
12966
MD106995 CLIP, FUEL VAPOR CONTROL |
MD106995 |
US $6.66 |
||
|
12971
|
12971
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
12972
|
12972
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
12972
|
12972
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
12975
|
12975
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12979
|
12979
MB249337 BAND, ROCKER COVERL=290 |
MB249337 |
US $2.37 |
||
|
12979
|
12979
MD005473 BAND, ROCKER COVER140 |
MD005473 |
US $3.26 |
||
|
12988
|
12988
MF241236 BOLT, ENG OIL PUMPWasher assembled,6x45 |
MF241236 |
US $1.78 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
14917
|
14917
MD080671 RELAY, HIGH TEMPERATURE LAMPK8t51071 |
MD080671 |
US $39.22 |
||
|
14927
|
14927
MD084640 SENSOR, EXHAUST HIGH TEMPERATURE |
MD084640 |
US $242.72 |
||
