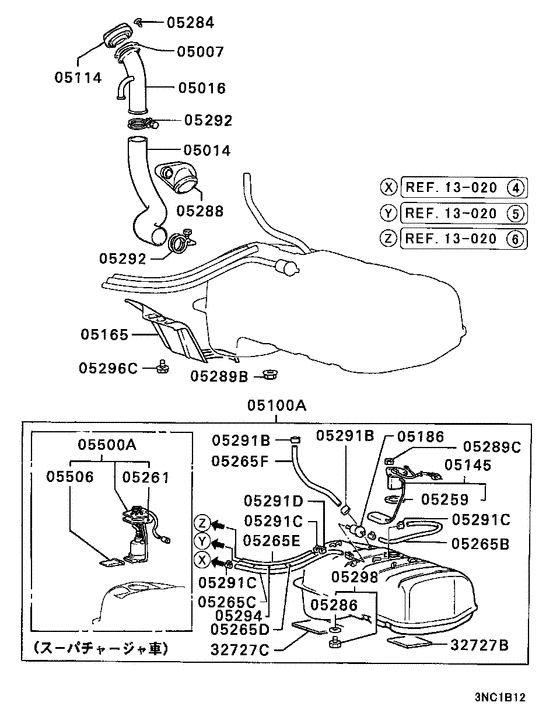

Fuel tank (ALL) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1987
- Sales region
- Japan
- Note
- ESTATE-CX(HIGH-ROOF),4FM/T
- drive
- 4WD
- transmission
- 4FM/T
- grade
- ESTATE-CX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB247374 GASKET, FUEL FILLER NECK |
MB247374 |
US $5.77 |
||
|
05014
|
05014
MB348473 HOSE, FUEL FILLER |
MB348473 |
US $76.96 |
||
|
05016
|
05016
MB348471 NECK, FUEL FILLER |
MB348471 |
US $85.10 |
||
|
05100A
|
05100A
MB433871 FUEL TANK ASSY |
MB433871 |
US $582.40 |
||
|
05114
|
05114
MB043006 CAP, FUEL TANK |
MB043006 |
US $13.02 |
||
|
05114
|
05114
MB247387 CAP, FUEL TANK |
MB247387 |
from US $33.07 |
||
|
05114
|
05114
MB503384 CAP, FUEL TANK |
MB503384 |
US $14.36 |
||
|
05145
|
05145
MB337945 GAUGE UNIT, FUEL TANK |
MB337945 |
US $74 |
||
|
05165
|
05165
MB348537 PROTECTOR, FUEL TANK |
MB348537 |
US $18.50 |
||
|
05186
|
05186
MB248865
VALVE, FUEL TANK VAPOR HOSE 2-WAY
|
MB248865 |
— | ||
| replacement | |||||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05259
|
05259
MB382513 GASKET, FUEL TANK GAUGE |
MB382513 |
from US $5.21 |
||
|
05265B
|
05265B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05265E
|
05265E
MS604098 HOSE, FUEL LINERubber,5x2000 |
MS604098 |
from US $33.95 |
||
|
05265F
|
05265F
MB348960 HOSE, FUEL TANK |
MB348960 |
US $20.72 |
||
|
05284
|
05284
MB400514
SCREW, FUEL TANK
|
MB400514 |
— | ||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05288
|
05288
MB348474 GROMMET, FUEL TANK |
MB348474 |
US $22.94 |
||
|
05289B
|
05289B
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
05289C
|
05289C
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05291B
|
05291B
MS660174 CLIP, ENG OIL LINED=19.8 |
MS660174 |
US $2.81 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291D
|
05291D
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05292
|
05292
MF661028 CLAMP, FUEL TANKD=60 |
MF661028 |
US $2.74 |
||
|
05296C
|
05296C
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
05500A
|
05500A
MD085173
FUEL PUMP ASSY
|
MD085173 |
— | ||
|
05500A
|
05500A
MD098980
FUEL PUMP ASSY
|
MD098980 |
— | ||
|
32727B
|
32727B
MB348994 PAD, SPARE TIRE |
MB348994 |
US $10.36 |
||
|
32727C
|
32727C
MB348995 PAD, SPARE TIRE |
MB348995 |
US $10.36 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
