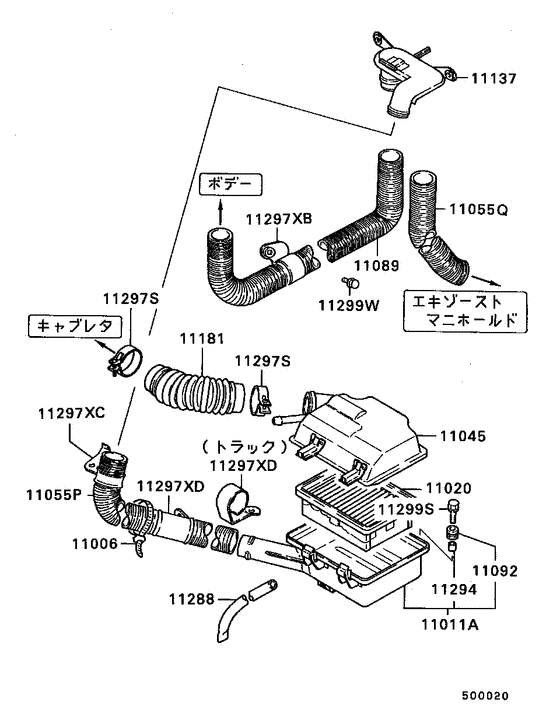

Air cleaner (-8507.3) Diagram Mitsubishi MINICAB
- Year
- 1984 - 1987
- Sales region
- Japan
- Note
- ESTATE-CX(HIGH-ROOF),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- ESTATE-CX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD603953 BODY ASSY, AIR CLEANER |
MD603953 |
US $199.80 |
||
|
11020
|
11020
MD603816
ELEMENT, AIR CLEANER
|
MD603816 |
— | ||
|
11045
|
11045
MD603820 COVER, AIR CLEANER |
MD603820 |
US $236.80 |
||
|
11055P
|
11055P
MD086941 HEAT DUCT, AIR CLEANER |
MD086941 |
US $28.86 |
||
|
11055Q
|
11055Q
MD091037 HEAT DUCT, AIR CLEANER |
MD091037 |
US $31.08 |
||
|
11055Q
|
11055Q
MD110392 HEAT DUCT, AIR CLEANER |
MD110392 |
US $46.62 |
||
|
11089
|
11089
MD098355 HOSE, ENG AIR INTAKE |
MD098355 |
US $13.76 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11137
|
11137
MD098358 SHUTTER, AIR CLEANER INTAKE |
MD098358 |
US $86.58 |
||
|
11181
|
11181
MD017279 DUCT, AIR CLEANER TO CARB |
MD017279 |
US $30.34 |
||
|
11288
|
11288
MD088077 TUBE, AIR CLEANER |
MD088077 |
US $6.51 |
||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297S
|
11297S
MS660110 CLAMP, AIR CLEANER55 |
MS660110 |
US $2.96 |
||
|
11297XB
|
11297XB
MD098445 CLIP, AIR CLEANER |
MD098445 |
US $9.32 |
||
|
11297XC
|
11297XC
MD088699 CLIP, AIR CLEANER |
MD088699 |
US $12.43 |
||
|
11297XD
|
11297XD
MD086943 CLIP, AIR CLEANER48 |
MD086943 |
US $14.21 |
||
|
11299S
|
11299S
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
|
11299W
|
11299W
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
