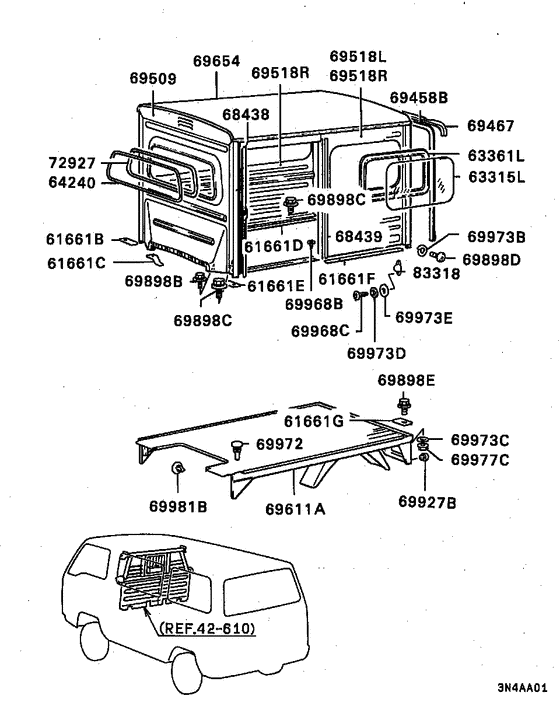

Panel van body (REAR BODY ROOF,FLOOR ETC.) Diagram Mitsubishi MINICAB
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- (HIGH-ROOF/4DOOR),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- HIGH-ROOF/4DOOR
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61661B
|
61661B
MB335940 SEAL, RR BODY MOUNTING |
MB335940 |
US $11.84 |
||
|
61661C
|
61661C
MB335938 SEAL, RR BODY MOUNTING |
MB335938 |
US $60.68 |
||
|
61661D
|
61661D
MB335943 SEAL, RR BODY MOUNTING |
MB335943 |
US $40.70 |
||
|
61661E
|
61661E
MB335939 SEAL, RR BODY MOUNTING |
MB335939 |
US $11.84 |
||
|
61661F
|
61661F
MB335941 SEAL, RR BODY MOUNTING |
MB335941 |
US $31.08 |
||
|
61661G
|
61661G
MB335944 SEAL, RR BODY MOUNTING |
MB335944 |
US $12.43 |
||
|
64240
|
64240
MB335945 WEATHERSTRIP, RR WINDOW |
MB335945 |
US $107.30 |
||
|
68438
|
68438
MB044255 WEATHERSTRIP, RR DOOR, FR |
MB044255 |
US $95.46 |
||
|
68438
|
68438
MB336902 WEATHERSTRIP, RR DOOR, FR |
MB336902 |
US $133.94 |
||
|
68439
|
68439
MB044256 WEATHERSTRIP, RR DOOR, RR |
MB044256 |
US $117.66 |
||
|
69458B
|
69458B
MB044228 WEATHERSTRIP, RR GATE |
MB044228 |
US $216.08 |
||
|
69467
|
69467
MB044238 RAIL, RR BODY ROOF DRIP |
MB044238 |
US $91.76 |
||
|
69509
|
69509
MB336162 PANEL, RR BODY FR END |
MB336162 |
US $784.78 |
||
|
69518L
|
69518L
MB336158 PANEL, RR BODY SIDE, LH |
MB336158 |
US $2,620.80 |
||
|
69518R
|
69518R
MB336903 PANEL, RR BODY SIDE, RH |
MB336903 |
US $2,908.80 |
||
|
69611A
|
69611A
MB593054 FLOOR ASSY, RR BODY |
MB593054 |
US $3,081.60 |
||
|
69654
|
69654
MB132022 PANEL, RR BODY ROOF |
MB132022 |
US $1,205.57 |
||
|
69898B
|
69898B
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
69898C
|
69898C
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
69898D
|
69898D
MA439854 BOLT, RR BODY GUARD FRAMECorss recesed head,8x15 |
MA439854 |
US $6.22 |
||
|
69898E
|
69898E
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.64 |
||
|
69927B
|
69927B
MB197297 STOPPER, TRUNK LID HINGE |
MB197297 |
US $3.40 |
||
|
69968B
|
69968B
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.44 |
||
|
69968C
|
69968C
MF455406 SCREW, FUEL TANKTapping,6x14 |
MF455406 |
US $2.37 |
||
|
69972
|
69972
MT147734 PLUG, RR BODYRubber |
MT147734 |
US $5.77 |
||
|
69973B
|
69973B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
69973C
|
69973C
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
69973D
|
69973D
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
69973E
|
69973E
MF450004 WASHER, ROCKER COVERPlain,6 |
MF450004 |
from US $0.82 |
||
|
69977C
|
69977C
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
69981B
|
69981B
MB124091 CLIP, SPLASH SHIELD7 |
MB124091 |
US $3.01 |
||
|
42 610
|
Loose panel
42 610
|
||||
