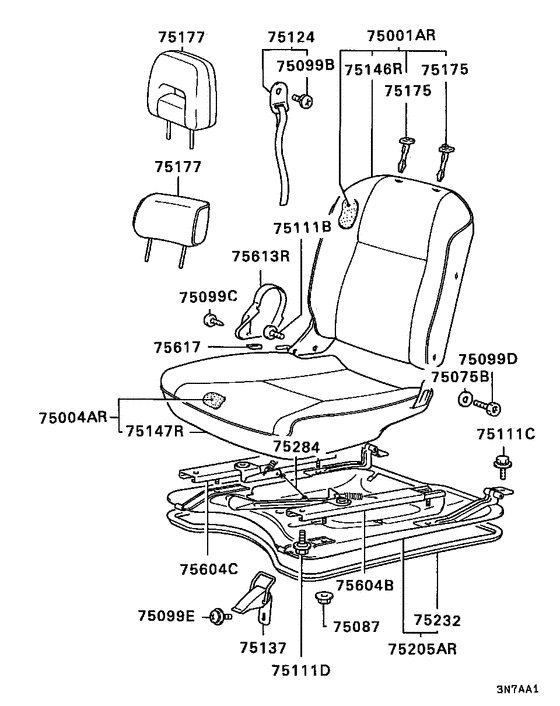

Front seat (LOW BACK..RH(W/RECLINING)) Diagram Mitsubishi MINICAB
- Year
- 1990
- Sales region
- Japan
- Note
- BRAVO-ZR(SUPER-CHARGER/S-AERO-RF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- BRAVO-ZR
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB758981 BACK ASSY, FR SEAT, RH |
MB758981 |
US $637.73 |
||
|
75004AR
|
75004AR
MB758968 CUSHION ASSY, FR SEAT, RH |
MB758968 |
US $589.68 |
||
|
75075B
|
75075B
MF450064 WASHER, CRUISE CONTROL EQUIPPlain,6 |
MF450064 |
US $1.78 |
||
|
75087
|
75087
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
75099B
|
75099B
MF350311 SCREW, TRUNK LIDWasher assembled,6x12 |
MF350311 |
US $1.92 |
||
|
75099B
|
75099B
MF350313 SCREW, ASSIST GRIPWasher assembled,6x16 |
MF350313 |
US $2.22 |
||
|
75099C
|
75099C
MF456216 SCREW, RADIATOR GRILLETapping,4x10 |
MF456216 |
US $2.05 |
||
|
75099D
|
75099D
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099E
|
75099E
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
75111B
|
75111B
MB237760 BOLT, FR SEAT8x20 |
MB237760 |
US $5.62 |
||
|
75111B
|
75111B
MB372121 BOLT, FR SEAT10x16 |
MB372121 |
US $2.96 |
||
|
75111C
|
75111C
MB131256 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MB131256 |
US $4.38 |
||
|
75111D
|
75111D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
75124
|
75124
MB324999 BRACKET, FR SEAT SUPPORT |
MB324999 |
US $15.54 |
||
|
75124
|
75124
MB648657 BRACKET, FR SEAT SUPPORT |
MB648657 |
US $17.02 |
||
|
75137
|
75137
MB342349 CLAMP, FR SEAT |
MB342349 |
US $7.10 |
||
|
75146R
|
75146R
MB758985 COVER, FR SEAT BACK, RH |
MB758985 |
US $350.90 |
||
|
75147R
|
75147R
MB758997 COVER, FR SEAT CUSHION, RH |
MB758997 |
US $273.80 |
||
|
75175
|
75175
MB495078 GUIDE, FR SEAT HEADRESTW/o lock |
MB495078 |
US $9.92 |
||
|
75175
|
75175
MB495081 GUIDE, FR SEAT HEADRESTW/lock |
MB495081 |
US $10.95 |
||
|
75177
|
75177
MB473774 HEADREST, FR SEAT |
MB473774 |
US $146.52 |
||
|
75205AR
|
75205AR
MB519566 PAN ASSY, FR SEAT CUSHION, RH |
MB519566 |
US $567.84 |
||
|
75232
|
75232
MB410034 SEAL, FR SEAT PAN |
MB410034 |
US $59.94 |
||
|
75284
|
75284
MB410037 WIRE, FR SEAT |
MB410037 |
US $4.88 |
||
|
75604B
|
75604B
MB410035 ADJUSTER, FR SEAT SLIDE |
MB410035 |
US $107.30 |
||
|
75604C
|
75604C
MB410056 ADJUSTER, FR SEAT SLIDE, RH |
MB410056 |
US $83.62 |
||
|
75613R
|
75613R
MB495386 COVER, FR SEAT RECLINING ADJUSTER, RH |
MB495386 |
US $16.28 |
||
|
75617
|
75617
MB472077 KNOB, FR SEAT RECLINING ADJUSTER |
MB472077 |
US $15.54 |
