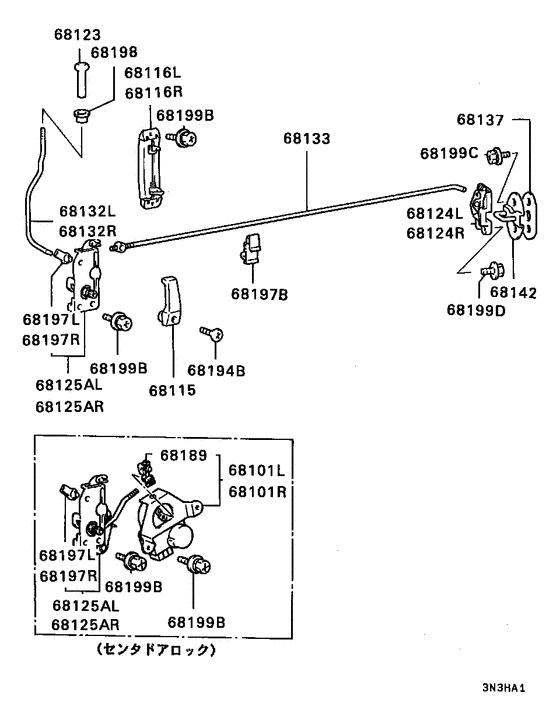

Rear door locking (EXC POST MINISTRY) Diagram Mitsubishi MINICAB
- Year
- 1990
- Sales region
- Japan
- Note
- BRAVO-ZR(SUPER-CHARGER/S-AERO-RF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- BRAVO-ZR
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68101L
|
68101L
MB611051 ACTUATOR, RR DOOR LOCK, LH |
MB611051 |
US $173.16 |
||
|
68101R
|
68101R
MB611052 ACTUATOR, RR DOOR LOCK, RH |
MB611052 |
US $173.16 |
||
|
68115
|
68115
MB494453 HANDLE, RR DOOR INSIDE |
MB494453 |
US $16.28 |
||
|
68116L
|
68116L
MB746242 HANDLE, RR DOOR OUTSIDE, LH |
MB746242 |
US $87.32 |
||
|
68116L
|
68116L
MB746244 HANDLE, RR DOOR OUTSIDE, LH |
MB746244 |
US $87.32 |
||
|
68116L
|
68116L
MB746245 HANDLE, RR DOOR OUTSIDE, LH |
MB746245 |
US $87.32 |
||
|
68116L
|
68116L
MB755744 HANDLE, RR DOOR OUTSIDE, LH |
MB755744 |
US $87.32 |
||
|
68116R
|
68116R
MB746249 HANDLE, RR DOOR OUTSIDE, RH |
MB746249 |
US $87.32 |
||
|
68116R
|
68116R
MB746251 HANDLE, RR DOOR OUTSIDE, RH |
MB746251 |
US $87.32 |
||
|
68116R
|
68116R
MB746252 HANDLE, RR DOOR OUTSIDE, RH |
MB746252 |
US $87.32 |
||
|
68116R
|
68116R
MB755745 HANDLE, RR DOOR OUTSIDE, RH |
MB755745 |
US $87.32 |
||
|
68123
|
68123
MB258708 KNOB, FR DOOR INSIDE LOCK |
MB258708 |
from US $3.84 |
||
|
68124L
|
68124L
MB331253 LATCH, RR DOOR, LH |
MB331253 |
US $99.16 |
||
|
68124R
|
68124R
MB331254 LATCH, RR DOOR, RH |
MB331254 |
US $99.16 |
||
|
68125AL
|
68125AL
MB611057 LINK ASSY, RR DOOR LOCK, LH |
MB611057 |
US $65.86 |
||
|
68125AR
|
68125AR
MB611058 LINK ASSY, RR DOOR LOCK, RH |
MB611058 |
US $65.86 |
||
|
68132L
|
68132L
MB611061 ROD, RR DOOR INSIDE LOCK, LH |
MB611061 |
US $11.84 |
||
|
68132R
|
68132R
MB611062 ROD, RR DOOR INSIDE LOCK, RH |
MB611062 |
US $11.84 |
||
|
68133
|
68133
MB331245 ROD, RR DOOR LATCH |
MB331245 |
US $11.84 |
||
|
68137
|
68137
MB320170 SHIM, FR DOOR LATCH STRIKER1.6 |
MB320170 |
US $3.70 |
||
|
68142
|
68142
MB331248 STRIKER, CTR DOOR, RR |
MB331248 |
US $10.36 |
||
|
68189
|
68189
MU481020 HOLDER, FR DOOR LOCK |
MU481020 |
US $2.74 |
||
|
68194B
|
68194B
MF200311 SCREW, H-L GEARSHIFT LINKMachine,5x10 |
MF200311 |
US $3.83 |
||
|
68197B
|
68197B
MB364400 CLIP, RR DOOR LOCKING |
MB364400 |
US $4.29 |
||
|
68197L
|
68197L
MS470431 CLIP, FR DOOR LOCKING2.2 |
MS470431 |
US $4.92 |
||
|
68197R
|
68197R
MS470432 CLIP, FR DOOR LOCKING2.2 |
MS470432 |
US $4.92 |
||
|
68198
|
68198
MB134043 BUSHING, FR DOOR LOCKING |
MB134043 |
US $2.87 |
||
|
68199B
|
68199B
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
68199C
|
68199C
MB085681 BOLT, BODY METALWasher assembled,8x25 |
MB085681 |
US $3.01 |
||
|
68199D
|
68199D
MS240268 BOLT, RR DOOR LOCKINGWasher assembled,6x18 |
MS240268 |
US $1.92 |
