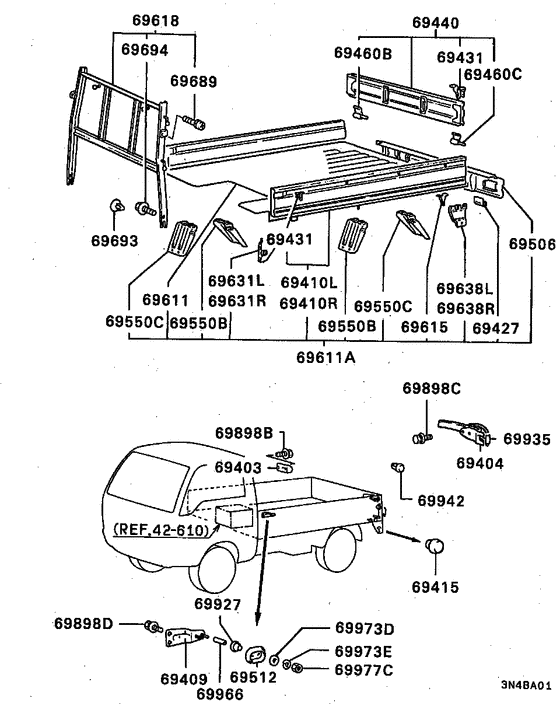

Rear body (1-GATE TYPE) Diagram Mitsubishi MINICAB
- Year
- 1990
- Sales region
- Japan
- Note
- STANDARD(1-GATE),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- STANDARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69403
|
69403
MB312869 BRACKET, RR BODY GATE STOPPER |
MB312869 |
US $7.99 |
||
|
69404
|
69404
MB312870 CATCH, RR BODY GATE |
MB312870 |
US $60.68 |
||
|
69409
|
69409
MB331687 ARM, RR BODY SIDE GATE CONNECTING |
MB331687 |
US $18.50 |
||
|
69410L
|
69410L
MB312989 GATE, RR BODY SIDE, LH |
MB312989 |
US $869.23 |
||
|
69410R
|
69410R
MB312990 GATE, RR BODY SIDE, RH |
MB312990 |
US $869.23 |
||
|
69415
|
69415
MB335632 CUSHION, RR BODY GATE |
MB335632 |
US $6.57 |
||
|
69427
|
69427
MB312844 HINGE, RR GATE FEMALE |
MB312844 |
US $7.55 |
||
|
69431
|
69431
MB312852 HOOK, RR BODY GATE ROPE |
MB312852 |
US $8.44 |
||
|
69440
|
69440
MB312845 GATE, RR BODY, RR |
MB312845 |
US $534.35 |
||
|
69460B
|
69460B
MB312853 HINGE, RR BODY SIDE GATE |
MB312853 |
US $13.91 |
||
|
69460C
|
69460C
MB312855 HINGE, RR BODY SIDE GATE |
MB312855 |
US $13.91 |
||
|
69506
|
69506
MB312843 PANEL, RR BODY RR SKIRT |
MB312843 |
US $505.23 |
||
|
69512
|
69512
MB331690 PLATE, RR BODY SIDE SKIRT SHIELD |
MB331690 |
US $12.14 |
||
|
69550B
|
69550B
MB312840 FENDER, RR BODY |
MB312840 |
US $73.26 |
||
|
69550C
|
69550C
MB312839 FENDER, RR BODY |
MB312839 |
US $73.26 |
||
|
69611
|
69611
MB593052 FLOOR, RR BODY |
MB593052 |
US $1,102.19 |
||
|
69611A
|
69611A
MB312833 FLOOR ASSY, RR BODY |
MB312833 |
US $3,211.20 |
||
|
69615
|
69615
MB312851 HOOK, RR BODY FLOOR ROPE |
MB312851 |
US $6.51 |
||
|
69618
|
69618
MB377917 FRAME KIT, RR BODY GUARD |
MB377917 |
US $532.90 |
||
|
69631L
|
69631L
MB312849 REINFORCEMENT, RR BODY FLOOR FR CORNER, LH |
MB312849 |
US $54.02 |
||
|
69631R
|
69631R
MB312850 REINFORCEMENT, RR BODY FLOOR FR CORNER, RH |
MB312850 |
US $54.02 |
||
|
69638L
|
69638L
MB312837 REINFORCEMENT, RR BODY FLOOR RR CORNER, LH |
MB312837 |
US $30.34 |
||
|
69638R
|
69638R
MB312838 REINFORCEMENT, RR BODY FLOOR RR CORNER, RH |
MB312838 |
US $30.34 |
||
|
69689
|
69689
MF350097 SCREW, M/T GEARSHIFT EQUIPWasher assembled,8x20 |
MF350097 |
US $2.66 |
||
|
69694
|
69694
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
69898B
|
69898B
MS240021 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240021 |
US $2.05 |
||
|
69898C
|
69898C
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
69898D
|
69898D
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
69898D
|
69898D
MF247224 BOLT, FUEL TANKWasher assembled,6x16 |
MF247224 |
from US $1.40 |
||
|
69927
|
69927
MB331688 CUSHION, RR BODY |
MB331688 |
US $8.14 |
||
|
69935
|
69935
MB251014 SPACER, RR BODY GATE7.5 |
MB251014 |
US $4.79 |
||
|
69942
|
69942
MB344322 CLIP, RR BODY GATE |
MB344322 |
US $2.96 |
||
|
69966
|
69966
MB331689 COLLAR, RR BODY |
MB331689 |
US $3.40 |
||
|
69977C
|
69977C
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
