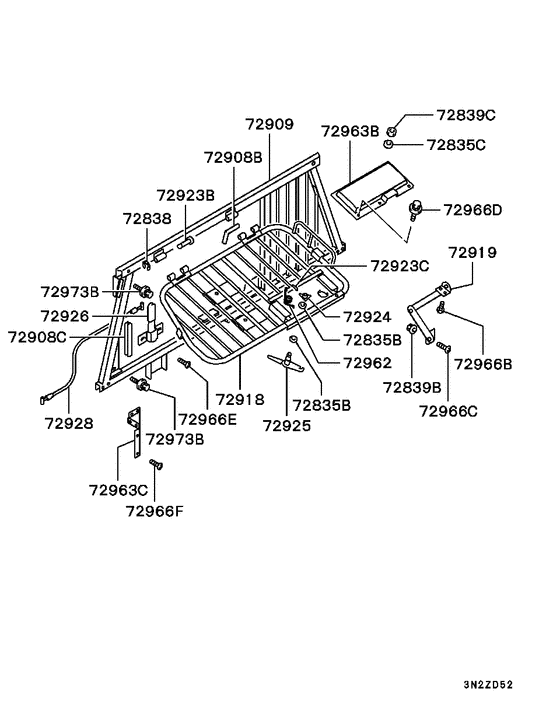

Loose panel (POST MINISTRY PARTITION BAR(-9406.3)) Diagram Mitsubishi MINICAB
- Year
- 1991 - 1995
- Sales region
- Japan
- Note
- PANEL VAN(3DOOR/YUUSEISHOU),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- PANEL
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72835B
|
72835B
MB288075 WASHER, STEERING COLUMN INRPlain,12.5 |
MB288075 |
US $2.52 |
||
|
72835C
|
72835C
MF450003 WASHER, EXTERIOR MARKPlain,5 |
MF450003 |
from US $0.64 |
||
|
72838
|
72838
MF522402 SNAP RING, CARB INRD=4 |
MF522402 |
US $1.37 |
||
|
72839B
|
72839B
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
72839C
|
72839C
MF430003 NUT, FUEL TANK5 |
MF430003 |
from US $0.82 |
||
|
72908B
|
72908B
MB639450 CUSHION, PARTITION PANEL |
MB639450 |
US $12.73 |
||
|
72908C
|
72908C
MB847062 CUSHION, PARTITION PANEL |
MB847062 |
US $9.62 |
||
|
72909
|
72909
MB800648 FRAME, PARTITION |
MB800648 |
US $1,221.58 |
||
|
72909
|
72909
MR107068 FRAME, PARTITION |
MR107068 |
US $1,256.53 |
||
|
72918
|
72918
MB800615 LID, PARTITION |
MB800615 |
US $888.16 |
||
|
72918
|
72918
MR107079 LID, PARTITION |
MR107079 |
US $624.62 |
||
|
72919
|
72919
MB639448 LINK, PARTITION LID |
MB639448 |
US $88.06 |
||
|
72923B
|
72923B
MT123431 PIN, RR BODY6x100 |
MT123431 |
US $3.11 |
||
|
72923C
|
72923C
MF472523 PIN, PARTITION PANELSpring,2.5x20 |
MF472523 |
US $1.92 |
||
|
72924
|
72924
MB639434 GUIDE, PARTITION PANEL SPRING |
MB639434 |
US $6.22 |
||
|
72925
|
72925
MB639437 HANDLE, PARTITION PANEL LOCK |
MB639437 |
US $22.20 |
||
|
72926
|
72926
MB884192 LEVER, PARTITION LID |
MB884192 |
US $60.68 |
||
|
72928
|
72928
MB847037 CABLE, PARTITION LID OPENING |
MB847037 |
US $58.46 |
||
|
72962
|
72962
MB639441 SPRING, PARTITION PANEL |
MB639441 |
US $3.85 |
||
|
72963B
|
72963B
MB639442 COVER, PARTITION PANEL |
MB639442 |
US $38.48 |
||
|
72963C
|
72963C
MB885770 COVER, PARTITION PANEL |
MB885770 |
US $22.94 |
||
|
72966B
|
72966B
MF350791 SCREW, FUEL TANKWasher assembled,6x14 |
MF350791 |
US $1.78 |
||
|
72966C
|
72966C
MF350079
SCREW, ENG OIL PUMP INR
|
MF350079 |
— | ||
|
72966D
|
72966D
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
72966E
|
72966E
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
72966F
|
72966F
MF453076 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453076 |
from US $1.76 |
||
|
72973B
|
72973B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
