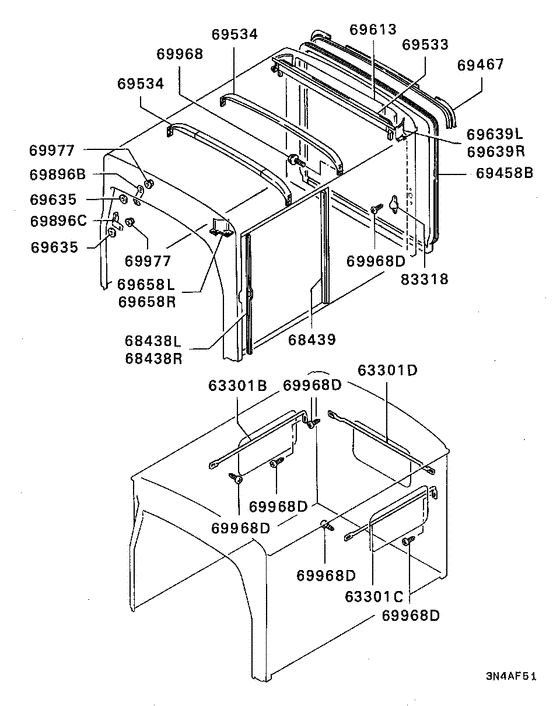

Panel van body (REAR BODY FRAME,GUARD BAR ETC.) Diagram Mitsubishi MINICAB
- Year
- 1991 - 1995
- Sales region
- Japan
- Note
- PANEL VAN(3DOOR/YUUSEISHOU),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- PANEL
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63301B
|
63301B
MB044251 BAR, WINDOW GLASS GUARD |
MB044251 |
US $92.50 |
||
|
63301C
|
63301C
MB044250 BAR, RR SIDE WINDOW GUARD |
MB044250 |
US $92.50 |
||
|
63301D
|
63301D
MB044252 BAR, WINDOW GLASS GUARD |
MB044252 |
US $91.76 |
||
|
68438L
|
68438L
MB044255 WEATHERSTRIP, RR DOOR, FR |
MB044255 |
US $95.46 |
||
|
68438L
|
68438L
MR157345 WEATHERSTRIP, RR DOOR, FR LH |
MR157345 |
US $102.12 |
||
|
68439
|
68439
MB044256 WEATHERSTRIP, RR DOOR, RR |
MB044256 |
US $117.66 |
||
|
68439
|
68439
MB901917 WEATHERSTRIP, RR DOOR, RR |
MB901917 |
US $105.82 |
||
|
68439
|
68439
MR242304 WEATHERSTRIP, RR DOOR, RR |
MR242304 |
US $120.62 |
||
|
69458B
|
69458B
MB833016 WEATHERSTRIP, RR GATE |
MB833016 |
US $232.36 |
||
|
69467
|
69467
MB044238 RAIL, RR BODY ROOF DRIP |
MB044238 |
US $91.76 |
||
|
69533
|
69533
MB132644 FRAME, RR BODY ROOF, RR INR |
MB132644 |
US $108.04 |
||
|
69534
|
69534
MB132654 FRAME, RR BODY ROOF CROSS |
MB132654 |
US $116.92 |
||
|
69613
|
69613
MB132636 FRAME, RR BODY GUARD |
MB132636 |
US $260.48 |
||
|
69613
|
69613
MB132656 FRAME, RR BODY ROOF, RR |
MB132656 |
US $295.57 |
||
|
69635
|
69635
MB833017 SHIM, RR BODY MOUNTING |
MB833017 |
US $3.26 |
||
|
69639L
|
69639L
MB132641 STIFFENER, RR BODY RR CORNER, LH |
MB132641 |
US $28.86 |
||
|
69639R
|
69639R
MB132642 STIFFENER, RR BODY RR CORNER, RH |
MB132642 |
US $25.16 |
||
|
69658L
|
69658L
MB132647 STIFFENER, RR BODY, FR UPR LH |
MB132647 |
US $28.86 |
||
|
69658R
|
69658R
MB132648 STIFFENER, RR BODY, FR UPR RH |
MB132648 |
US $25.16 |
||
|
69896B
|
69896B
MB833012 BRACKET, RR BODY |
MB833012 |
US $8.29 |
||
|
69896C
|
69896C
MB833013 BRACKET, RR BODY |
MB833013 |
US $8.29 |
||
|
69968
|
69968
MF350791 SCREW, FUEL TANKWasher assembled,6x14 |
MF350791 |
US $1.78 |
||
|
69968D
|
69968D
MF455405 SCREW, LICENSE PLATETapping,6x12 |
MF455405 |
US $1.92 |
||
|
69977
|
69977
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
69977
|
69977
MS440542 NUT, AIR CLEANERWasher assembled,6 |
MS440542 |
US $4.10 |
||
|
83318
|
83318
MA439961 COVER, RR BODY HARNESS |
MA439961 |
US $161.32 |
