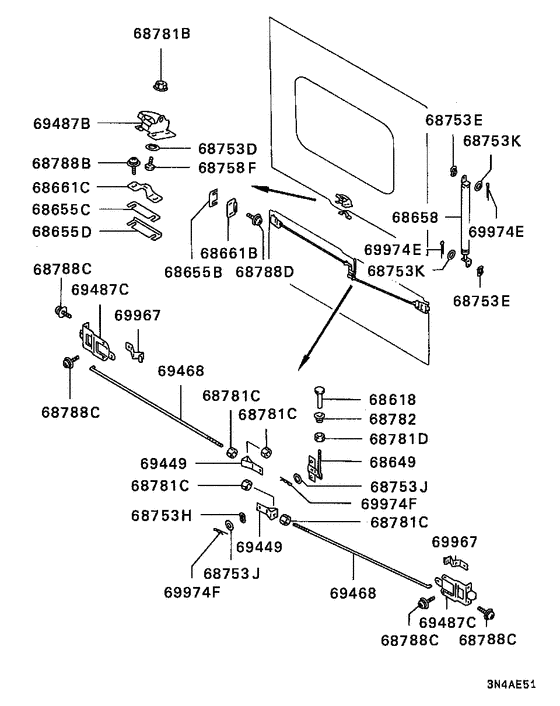

Panel van body (REAR BODY TAILGATE LOCK SYSTEM ETC.) Diagram Mitsubishi MINICAB
- Year
- 1991 - 1995
- Sales region
- Japan
- Note
- PANEL VAN(3DOOR/YUUSEISHOU),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- PANEL
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68618
|
68618
MT195557 KNOB, FR DOOR INSIDE LOCK |
MT195557 |
US $7.39 |
||
|
68649
|
68649
MA439871 LEVER, TAILGATE INSIDE LOCK |
MA439871 |
US $42.18 |
||
|
68655B
|
68655B
MB112984 SHIM, TRUNK LID STRIKER |
MB112984 |
US $3.70 |
||
|
68655C
|
68655C
MT195762 SHIM, RR BODY MOUNTING1.0 |
MT195762 |
US $2.52 |
||
|
68655D
|
68655D
MT195795 SHIM, RR BODY MOUNTING1.0 |
MT195795 |
US $3.85 |
||
|
68658
|
68658
MB043806 STOPPER, TAILGATE |
MB043806 |
US $83.62 |
||
|
68661B
|
68661B
MA439931 STRIKER, TAILGATE LATCH |
MA439931 |
US $22.94 |
||
|
68661C
|
68661C
MT195761 STRIKER, TAILGATE LATCH |
MT195761 |
US $17.02 |
||
|
68753D
|
68753D
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
68753E
|
68753E
MB893686 WASHER, TAILGATE LOCKING |
MB893686 |
US $3.26 |
||
|
68753H
|
68753H
MF451103 WASHER, FUEL FILLER LID LOCKINGWave,6 |
MF451103 |
US $1.63 |
||
|
68753H
|
68753H
MS450003 WASHER, RR DOOR LOCKINGWave,6 |
MS450003 |
US $3.11 |
||
|
68753J
|
68753J
MF450004 WASHER, ROCKER COVERPlain,6 |
MF450004 |
from US $0.82 |
||
|
68753K
|
68753K
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
68753K
|
68753K
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
68758F
|
68758F
MF200077 SCREW, VOLTAGE REGULATOR MOUNTINGMachine,6x16 |
MF200077 |
US $1.78 |
||
|
68781B
|
68781B
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
68781C
|
68781C
MF430003 NUT, FUEL TANK5 |
MF430003 |
from US $0.82 |
||
|
68781D
|
68781D
MF430002 NUT, FUEL TANK4 |
MF430002 |
from US $0.78 |
||
|
68782
|
68782
MT195558 GROMMET, FR DOOR LOCKING9.5 |
MT195558 |
US $2.96 |
||
|
68788B
|
68788B
MF350793 SCREW, RR DOOR LOCKINGWasher assembled,6x18 |
MF350793 |
US $2.37 |
||
|
68788C
|
68788C
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $0.82 |
||
|
68788D
|
68788D
MF350791 SCREW, FUEL TANKWasher assembled,6x14 |
MF350791 |
US $1.78 |
||
|
69449
|
69449
MT136117 CONNECTOR, RR BODY |
MT136117 |
US $13.47 |
||
|
69468
|
69468
MB044245 ROD, RR GATE LOCK RELEASE |
MB044245 |
US $29.60 |
||
|
69487B
|
69487B
MB846144 LOCK, RR BODY RR GATE |
MB846144 |
US $54.02 |
||
|
69487B
|
69487B
MR274563 STRIKER, TAILGATE LATCH |
MR274563 |
US $25.16 |
||
|
69487C
|
69487C
MT136031 LOCK, RR BODY RR GATE |
MT136031 |
US $59.20 |
||
|
69967
|
69967
MW029455 SNAP, RR BODY |
MW029455 |
US $4.29 |
||
|
69974E
|
69974E
MF472023 PIN, ACCEL CONTROL EQUIPSplit,1.6x12 |
MF472023 |
US $0.96 |
||
|
69974E
|
69974E
MF472036 PIN, FUEL TANK SUPPORTSplit,2x15 |
MF472036 |
from US $0.31 |
||
|
69974F
|
69974F
MF472303 PIN, HOIST CONTROL LINKSnap,6x21.2 |
MF472303 |
from US $0.99 |
