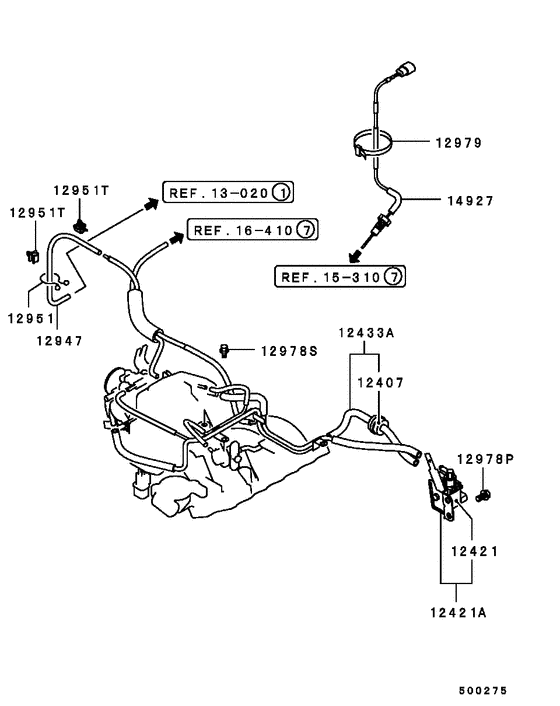

Emission control (DOHC..W/O TURBO) Diagram Mitsubishi MINICAB
- Year
- 1990 - 1991
- Sales region
- Japan
- Note
- BRAVO-MR-I(SUPER AERO-ROOF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- BRAVO-MR-I
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12407
|
12407
MD175372 CHAMBER, EMISSION VACUUM CONTROL |
MD175372 |
US $3.11 |
||
|
12421
|
12421
MD167135 VALVE, EMISSION SOLENOID |
MD167135 |
US $70.30 |
||
|
12421A
|
12421A
MD168805 VALVE ASSY, EMISSION SOLENOID |
MD168805 |
US $102.86 |
||
|
12433A
|
12433A
MD169536 HOSE & PIPE ASSY, EMISSION CONTROL |
MD169536 |
US $496.50 |
||
|
12947
|
12947
MD172492 HOSE, EMISSION CONTROL EQUIP3x860 |
MD172492 |
US $17.76 |
||
|
12951
|
12951
MD006494 CLIP, EMISSION CONTROL EQUIP30 |
MD006494 |
US $3.26 |
||
|
12951T
|
12951T
MB906309 CLIP, EMISSION VACUUM CONTROL EQUIP |
MB906309 |
US $2.07 |
||
|
12951T
|
12951T
MU481043 CLIP, CRUISE CONTROL EQUIP7 |
MU481043 |
from US $2.16 |
||
|
12978P
|
12978P
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
12978S
|
12978S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978S
|
12978S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12979
|
12979
MD005473 BAND, ROCKER COVER140 |
MD005473 |
US $3.26 |
||
|
14927
|
14927
MB957212 SENSOR, EXHAUST HIGH TEMPERATURE |
MB957212 |
US $236.80 |
||
|
14927
|
14927
MD167545 SENSOR, EXHAUST HIGH TEMPERATURE |
MD167545 |
US $245.68 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
