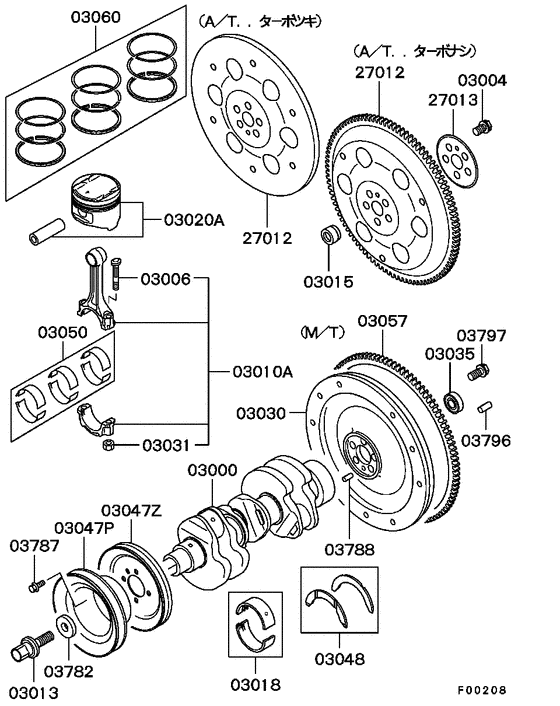

Piston & crankshaft (9308.1-..DOHC) Diagram Mitsubishi MINICAB
- Year
- 1990 - 1991
- Sales region
- Japan
- Note
- BRAVO-MR-I(SUPER AERO-ROOF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- BRAVO-MR-I
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD153334 CRANKSHAFT |
MD153334 |
US $1,483.20 |
||
|
03000
|
03000
MD196005 CRANKSHAFT |
MD196005 |
US $972.61 |
||
|
03004
|
03004
MD715097 BOLT, A/T DRIVE PLATEFlange,10x15.5 |
MD715097 |
US $2.52 |
||
|
03006
|
03006
MD155277
BOLT, CONNROD
|
MD155277 |
— | ||
|
03006
|
03006
MD179705 BOLT, CONNROD7x43.7 |
MD179705 |
from US $2.63 |
||
|
03010A
|
03010A
MD153643 CONNECTING ROD ASSY |
MD153643 |
US $180.56 |
||
|
03010A
|
03010A
MD195765 CONNECTING ROD ASSY |
MD195765 |
US $190.15 |
||
|
03013
|
03013
MD168761 CENTER BOLT, CRANKSHAFT PULLEY |
MD168761 |
US $13.54 |
||
|
03018
|
03018
MD198949
BEARING, CRANKSHAFT
|
MD198949 |
— | ||
| replacement | |||||
|
03018
|
03018
MD315909 BEARING, CRANKSHAFT (BROWN)Plain,std 1 |
MD315909 |
from US $14.92 |
||
|
03018
|
03018
MD198950 BEARING, CRANKSHAFTPlain,std 2 |
MD198950 |
US $27.38 |
||
|
03018
|
03018
MD198951 BEARING, CRANKSHAFTPlain,std 3 |
MD198951 |
US $27.38 |
||
|
03018
|
03018
MD198952 BEARING, CRANKSHAFTPlain,std 4 |
MD198952 |
US $27.38 |
||
|
03018
|
03018
MD198953 BEARING, CRANKSHAFTPlain,std 5 |
MD198953 |
US $27.38 |
||
|
03018
|
03018
MD315909 BEARING, CRANKSHAFT (BROWN)Plain,std 1 |
MD315909 |
from US $14.92 |
||
|
03018
|
03018
MD315910 BEARING, CRANKSHAFT (COLORLESS)Plain,std 2 |
MD315910 |
US $25.31 |
||
|
03018
|
03018
MD315911 BEARING, CRANKSHAFT (BLUE)Plain,std 3 |
MD315911 |
from US $16.95 |
||
|
03018
|
03018
MD315912 BEARING, CRANKSHAFT (YELLOW)Plain,std 4 |
MD315912 |
US $36.94 |
||
|
03018
|
03018
MD315913 BEARING, CRANKSHAFT (GREEN)Plain,std 5 |
MD315913 |
US $34.88 |
||
|
03020A
|
03020A
MD157631 PISTON & PIN ASSYStd a |
MD157631 |
US $87.32 |
||
|
03020A
|
03020A
MD157632 PISTON & PIN ASSYStd b |
MD157632 |
US $128.76 |
||
|
03020A
|
03020A
MD157633 PISTON & PIN ASSYStd c |
MD157633 |
US $87.32 |
||
|
03020A
|
03020A
MD160064 PISTON & PIN ASSYO/size 0.25 |
MD160064 |
US $120.62 |
||
|
03020A
|
03020A
MD160065 PISTON & PIN ASSYO/size 0.50 |
MD160065 |
US $120.62 |
||
|
03020A
|
03020A
MD160066 PISTON & PIN ASSYO/size 0.75 |
MD160066 |
US $120.62 |
||
|
03020A
|
03020A
MD160067 PISTON & PIN ASSYO/size 1.00 |
MD160067 |
US $120.62 |
||
|
03020A
|
03020A
MD161582
PISTON & PIN ASSY
|
MD161582 |
— | ||
|
03020A
|
03020A
MD161583 PISTON & PIN ASSYStd b |
MD161583 |
US $102.12 |
||
|
03020A
|
03020A
MD161584 PISTON & PIN ASSYStd c |
MD161584 |
US $87.32 |
||
|
03020A
|
03020A
MD171336 PISTON & PIN ASSYO/size 0.50 |
MD171336 |
US $102.12 |
||
|
03020A
|
03020A
MD171338 PISTON & PIN ASSYO/size 1.00 |
MD171338 |
US $102.12 |
||
|
03030
|
03030
MD140501
FLYWHEEL
|
MD140501 |
— | ||
| replacement | |||||
|
03030
|
03030
MD140500 FLYWHEEL ASSY |
MD140500 |
US $298.79 |
||
|
03031
|
03031
MD066045 NUT, CONNRODJam,7 |
MD066045 |
US $2.66 |
||
|
03031
|
03031
MD195747 NUT, CONNROD7 |
MD195747 |
from US $1.03 |
||
|
03035
|
03035
MD016653 BEARING, FLYWHEEL DRIVE PINIONBall,8x28 |
MD016653 |
from US $7.10 |
||
|
03047Z
|
03047Z
MD154361 PULLEY, CRANKSHAFT DAMPERRibbed |
MD154361 |
US $117.66 |
||
|
03047Z
|
03047Z
MD186288 PULLEY, CRANKSHAFT DAMPERRibbed |
MD186288 |
US $120.62 |
||
|
03048
|
03048
MD198954 THRUST BEARING SET, CRANKSHAFTPlain |
MD198954 |
from US $4.23 |
||
|
03050
|
03050
MD140836 BEARING SET, CONNRODPlain,std |
MD140836 |
US $65.12 |
||
|
03050
|
03050
MD140837 BEARING SET, CONNRODPlain,u/size 0.25 |
MD140837 |
US $65.12 |
||
|
03050
|
03050
MD140838 BEARING SET, CONNRODPlain,u/size 0.50 |
MD140838 |
US $65.12 |
||
|
03050
|
03050
MD140839 BEARING SET, CONNRODPlain,u/size 0.75 |
MD140839 |
US $65.12 |
||
|
03057
|
03057
MD101846 RING GEAR, FLYWHEELN=97 |
MD101846 |
US $142.27 |
||
|
03060
|
03060
MD160195 RING SET, PISTON (STD)Std |
MD160195 |
US $166.90 |
||
|
03060
|
03060
MD160197 RING SET, PISTONO/size 0.50 |
MD160197 |
US $155.40 |
||
|
03060
|
03060
MD160199 RING SET, PISTONO/size 1.00 |
MD160199 |
US $155.40 |
||
|
03060
|
03060
MD160200 RING SET, PISTONStd |
MD160200 |
US $248.64 |
||
|
03060
|
03060
MD160201 RING SET, PISTONO/size 0.25 |
MD160201 |
US $248.64 |
||
|
03060
|
03060
MD160202 RING SET, PISTONO/size 0.50 |
MD160202 |
US $248.64 |
||
|
03060
|
03060
MD160203 RING SET, PISTONO/size 0.75 |
MD160203 |
US $248.64 |
||
|
03060
|
03060
MD160204 RING SET, PISTONO/size 1.00 |
MD160204 |
US $248.64 |
||
|
03782
|
03782
MD016641
WASHER, CRANKSHAFT PULLEY
|
MD016641 |
— | ||
|
03787
|
03787
MD093792 BOLT, CRANKSHAFT PULLEYFlange,6x16 |
MD093792 |
US $4.65 |
||
|
03787
|
03787
MF140405 BOLT, CRANKSHAFT PULLEYFlange,6x16 |
MF140405 |
US $2.52 |
||
|
03788
|
03788
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.81 |
||
|
03797
|
03797
MD091434 BOLT, FLYWHEELFlange,10x19.5 |
MD091434 |
US $3.11 |
||
