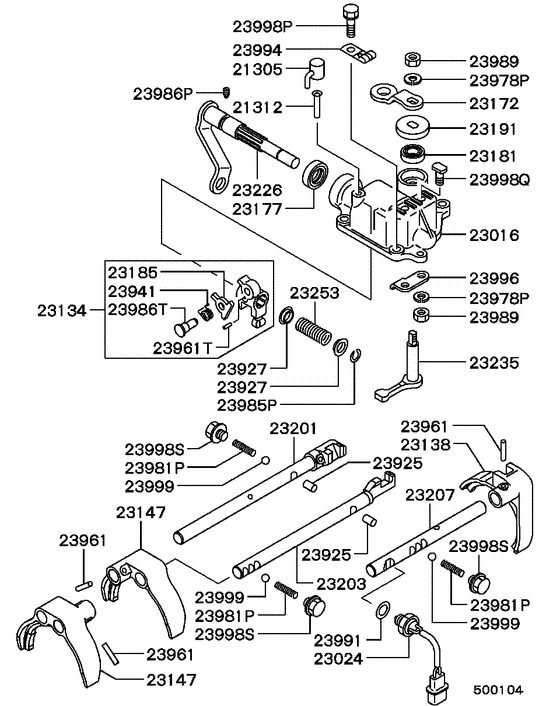

M/t gearshift control (5-SPEED W/TURBO) Diagram Mitsubishi MINICAB
- Year
- 1991 - 1993
- Sales region
- Japan
- Note
- BRAVO-MZ-G(SUPER AERO-ROOF),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- BRAVO-MZ-G
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21305
|
21305
MD723762 CAP, M/T EXTENSION HOUSING BREATHER PIPE |
MD723762 |
US $8.73 |
||
|
21312
|
21312
MD730766 BREATHER, ENG |
MD730766 |
US $5.48 |
||
|
23016
|
23016
MD742824 HOUSING, M/T GEARSHIFT |
MD742824 |
US $97.68 |
||
|
23024
|
23024
MD734044 SWITCH, M/T GEARSHIFT BACKUP LAMP |
MD734044 |
from US $22.74 |
||
|
23134
|
23134
MD742702 FINGER, M/T GEARSHIFT |
MD742702 |
US $70.30 |
||
|
23138
|
23138
MB919025 FORK, M/T GEARSHIFT O/D |
MB919025 |
US $79.18 |
||
|
23147
|
23147
MD742396 FORK, M/T GEARSHIFT O/D |
MD742396 |
US $33.30 |
||
|
23172
|
23172
MD742825 LEVER, M/T SELECT SHAFT |
MD742825 |
US $18.50 |
||
|
23177
|
23177
MD741496 OIL SEAL, M/T CTR DIFF LOCK ROD |
MD741496 |
US $6.81 |
||
|
23181
|
23181
MD710382 OIL SEAL, T/F CASE GEARSHIFT SHAFT |
MD710382 |
US $10.26 |
||
|
23185
|
23185
MB936992 PLATE, M/T GEARSHIFT SHAFT STOPPER |
MB936992 |
US $6.22 |
||
|
23185
|
23185
MD717882 PLATE, M/T GEARSHIFT SHAFT STOPPER |
MD717882 |
US $4.14 |
||
|
23191
|
23191
MD741481 PLATE, M/T SELECT LEVER BAFFLE |
MD741481 |
US $5.33 |
||
|
23201
|
23201
MB919077 RAIL, M/T GEARSHIFT O/D & REV |
MB919077 |
US $45.14 |
||
|
23203
|
23203
MB919075 RAIL, M/T GEARSHIFT REV |
MB919075 |
US $20.72 |
||
|
23207
|
23207
MB919127 RAIL, M/T GEARSHIFT REV |
MB919127 |
US $15.54 |
||
|
23226
|
23226
MD742847 SHAFT KIT, M/T GEARSHIFT |
MD742847 |
US $50.32 |
||
|
23235
|
23235
MD741476 SHAFT, M/T SELECT LEVER |
MD741476 |
US $60.68 |
||
|
23253
|
23253
MD740781 SPRING, M/T GEARSHIFT REV RESISTANCE |
MD740781 |
US $2.96 |
||
|
23925
|
23925
MD701550 PLUNGER, M/T GEARSHIFT RAIL INTERLOCK |
MD701550 |
US $4.51 |
||
|
23927
|
23927
MD901565 RETAINER, M/T GEARSHIFT SPRING |
MD901565 |
US $2.81 |
||
|
23941
|
23941
MD717907 SPRING, M/T GEARSHIFT ADJUSTING ARM RETURN |
MD717907 |
US $2.07 |
||
|
23961
|
23961
MF472572 SPRING PIN, M/T CLUTCH CONTROL EQUIP5x22 |
MF472572 |
US $2.60 |
||
|
23961T
|
23961T
MF472533 PIN, INSTRUMENT PANEL UNDER TRIMSpring,3x10 |
MF472533 |
US $1.50 |
||
|
23978P
|
23978P
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
23981P
|
23981P
MB936342 SPRING, M/T GEARSHIFT EQUIP |
MB936342 |
US $4.29 |
||
|
23985P
|
23985P
MD701615 SNAP RING, M/T GEARSHIFT EQUIP9 |
MD701615 |
US $2.66 |
||
|
23986P
|
23986P
MD722131 PIN, M/T GEARSHIFT EQUIP6x10 |
MD722131 |
US $4.29 |
||
|
23986T
|
23986T
MD717864 PIN, M/T GEARSHIFT EQUIP |
MD717864 |
US $2.81 |
||
|
23989
|
23989
MF430725 NUT, CYLINDER HEADJam,8 |
MF430725 |
from US $0.59 |
||
|
23991
|
23991
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.25 |
||
|
23994
|
23994
MS470057 CLIP, ENG BREATHERL=40 |
MS470057 |
US $3.69 |
||
|
23996
|
23996
MD741482 BRACKET, M/T GEARSHIFT EQUIP |
MD741482 |
US $20.72 |
||
|
23998P
|
23998P
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
23998Q
|
23998Q
MD703191 BOLT, M/T GEARSHIFT EQUIPSpecial,8x18 |
MD703191 |
from US $2.81 |
||
|
23998S
|
23998S
MD716936 BOLT, M/T GEARSHIFT EQUIPFlange,10x8 |
MD716936 |
US $3.26 |
||
| replacements | |||||
|
23998S
|
23998S
2940A009 BOLT, M/T GEARSHIFT EQUIPFlange,10x8 |
2940A009 |
US $1.18 |
||
|
23998S
|
23998S
2940A015 BOLT, M/T GEARSHIFT EQUIP |
2940A015 |
US $0.55 |
||
|
23999
|
23999
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
||
