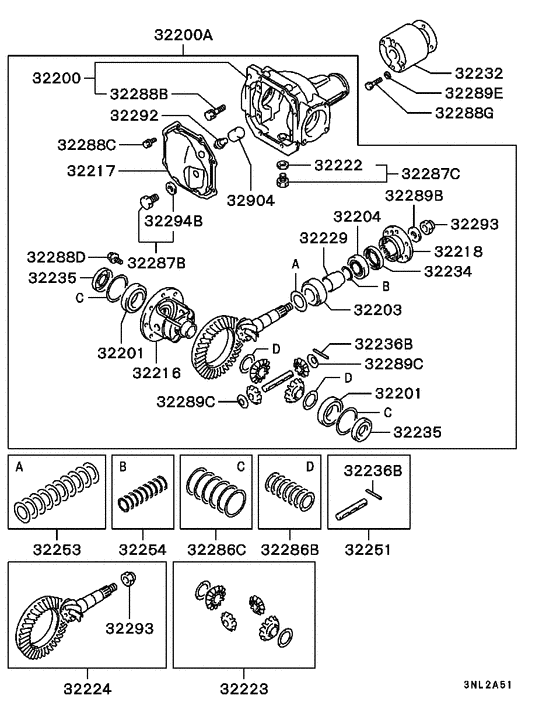

Front axle differential (FULL TIME 4WD) Diagram Mitsubishi MINICAB
- Year
- 1990 - 1993
- Sales region
- Japan
- Note
- BRAVO-JX(SUPER AERO-ROOF),3FA/T
- drive
- 4WD
- transmission
- 3FA/T
- grade
- BRAVO-JX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200
|
32200
MB664164 CARRIER, FR DIFF |
MB664164 |
US $292.66 |
||
|
32200
|
32200
MB664184 CARRIER, FR DIFF |
MB664184 |
US $226.44 |
||
|
32200A
|
32200A
MB860007 CARRIER ASSY, FR DIFF6.666 |
MB860007 |
US $1,271.09 |
||
|
32200A
|
32200A
MR981830 CARRIER ASSY, FR DIFF6.666 |
MR981830 |
US $1,785.60 |
||
|
32201
|
32201
MB393957 BEARING, RR DIFF CASETaper r0ller,72.00x18.25-35.00 |
MB393957 |
from US $18.21 |
||
|
32203
|
32203
MV033164 BEARING, FR DIFF DRIVE PINION, FRTaper roller,52x19.25-25 |
MV033164 |
US $41.72 |
||
|
32204
|
32204
MV033164 BEARING, FR DIFF DRIVE PINION, FRTaper roller,52x19.25-25 |
MV033164 |
US $41.72 |
||
|
32216
|
32216
MB290055 CASE, FR DIFF |
MB290055 |
US $143.56 |
||
|
32217
|
32217
MB393457 COVER, FR DIFF CARRIER |
MB393457 |
US $49.58 |
||
|
32218
|
32218
MB569768 FLANGE, FR DIFF COMPANION |
MB569768 |
US $36.26 |
||
|
32218
|
32218
MB664324 FLANGE, RR DIFF COMPANION |
MB664324 |
US $79.18 |
||
|
32218
|
32218
MR110791 FLANGE, RR DIFF COMPANION |
MR110791 |
US $70.30 |
||
|
32222
|
32222
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.11 |
||
|
32223
|
32223
MB283143 DIFF CASE GEAR KIT |
MB283143 |
from US $182.04 |
||
|
32224
|
32224
MB860008 GEAR KIT, FR DIFF FINAL DRIVE6.666 |
MB860008 |
US $761.49 |
||
|
32229
|
32229
MB664335 SPACER, RR DIFF PINION BEARING48.2 |
MB664335 |
US $27.36 |
||
|
32229
|
32229
MB664336 SPACER, RR DIFF PINION BEARING48.8 |
MB664336 |
US $7.10 |
||
|
32232
|
32232
MB664539 COUPLING UNIT, FR DIFF HYDRAULIC |
MB664539 |
US $1,555.20 |
||
|
32234
|
32234
MB092620
OIL SEAL, RR DIFF DRIVE PINION
|
MB092620 |
— | ||
| replacement | |||||
|
32234
|
32234
3515A059 OIL SEAL, FR DIFF DRIVE PINION |
3515A059 |
from US $14.55 |
||
|
32235
|
32235
MD706433
OIL SEAL, T/M FR DIFF CASE
|
MD706433 |
— | ||
| replacement | |||||
|
32235
|
32235
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
|
32235
|
32235
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
|
32236B
|
32236B
MT206970 PIN, FR DIFF4x32 |
MT206970 |
US $2.37 |
||
|
32251
|
32251
MB185337 SHAFT KIT, FR DIFF PINION |
MB185337 |
US $18.50 |
||
|
32253
|
32253
MB185352 SHIM SET, FR DIFF DRIVE PINION, FR |
MB185352 |
US $22.20 |
||
|
32254
|
32254
MB527864 SHIM SET, RR DIFF DRIVE PINION, FR |
MB527864 |
US $55.40 |
||
|
32286B
|
32286B
MB185340 SPACER SET, M/T DIFF SIDE GEAR |
MB185340 |
US $31.08 |
||
|
32286C
|
32286C
MB241903 SPACER SET, FR DIFF |
MB241903 |
from US $17.32 |
||
|
32287B
|
32287B
MB001261 PLUG KIT, FR AXLE HOUSING |
MB001261 |
from US $3.08 |
||
|
32287C
|
32287C
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
32288B
|
32288B
MB160801 BOLT, FR DIFFWasher assembled,10x52.6 |
MB160801 |
US $4.44 |
||
|
32288C
|
32288C
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
32288D
|
32288D
MB001256 BOLT, FR DIFFFlange,8x16 |
MB001256 |
US $2.52 |
||
|
32288G
|
32288G
MB393979 BOLT, RR DIFF8x22 |
MB393979 |
US $2.52 |
||
|
32289B
|
32289B
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.76 |
||
|
32289C
|
32289C
MB073182 WASHER, M/T POWER TRAINPlain,15 |
MB073182 |
from US $3.35 |
||
|
32289E
|
32289E
MS450042 WASHER, PROPELLER SHAFTSpring,8 |
MS450042 |
from US $1.79 |
||
|
32292
|
32292
MB160950 PLUG, FR DIFFVent |
MB160950 |
from US $8.58 |
||
|
32293
|
32293
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.76 |
||
|
32294B
|
32294B
MF660066 GASKET, PLUGD=16 |
MF660066 |
from US $1.01 |
||
|
32904
|
32904
MB393232 COVER, RR AXLE HOUSING BREATHER PLUG |
MB393232 |
from US $3.14 |
||
