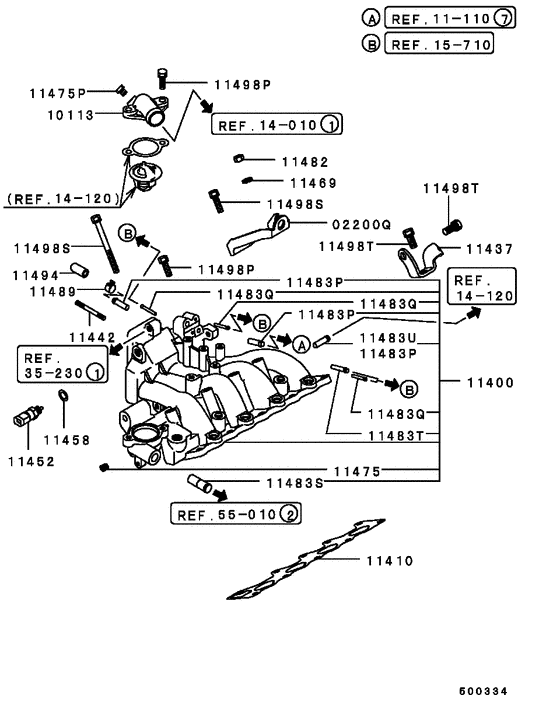

Inlet manifold (MPI) Diagram Mitsubishi MINICAB
- Year
- 1993 - 1999
- Sales region
- Japan
- Note
- BRAVO SUPER EXCEED(SUPER AERO-RF),3FA/T
- drive
- 2WD
- transmission
- 3FA/T
- grade
- BRAVO SUPER EXC
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD306179 ENGINE HANGER |
MD306179 |
US $13.32 |
||
|
10113
|
10113
MD181330 FITTING, COOLING WATER OUTLET HOSE |
MD181330 |
US $27.38 |
||
|
11400
|
11400
MD306537 MANIFOLD, INLET |
MD306537 |
US $470.29 |
||
|
11400
|
11400
MD321439 MANIFOLD, INLET |
MD321439 |
US $473.20 |
||
|
11410
|
11410
MD302762 GASKET, INLET MANIFOLD |
MD302762 |
from US $8.99 |
||
|
11437
|
11437
MD306580 STAY, INLET MANIFOLD |
MD306580 |
US $11.10 |
||
|
11442
|
11442
MS401115 STUD, INLET MANIFOLD6x50 |
MS401115 |
US $7.70 |
||
|
11452
|
11452
MD180682 SENSOR, SURGE TANK AIR TEMPERATURE |
MD180682 |
US $61.42 |
||
|
11458
|
11458
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11475
|
11475
MS661140 PLUG, CYLINDER HEADTaper,1/8 |
MS661140 |
US $3.15 |
||
|
11475
|
11475
MS661141 PLUG, CYLINDER HEADTaper,1/4 |
MS661141 |
US $1.92 |
||
|
11475P
|
11475P
MD165226 PLUG, INLET MANIFOLDTaper,1/8 |
MD165226 |
US $4.24 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483P
|
11483P
MD024599 NIPPLE, ROCKER COVER8 |
MD024599 |
US $5.03 |
||
|
11483Q
|
11483Q
MD010528 NIPPLE, ROCKER COVER4 |
MD010528 |
US $4 |
||
|
11483Q
|
11483Q
MD141670 NIPPLE, INLET MANIFOLD4 |
MD141670 |
US $6.22 |
||
|
11483S
|
11483S
MD016574 PIPE, INLET MANIFOLD |
MD016574 |
US $4.44 |
||
|
11483T
|
11483T
MD168141 NIPPLE, INLET MANIFOLD6 |
MD168141 |
US $7.84 |
||
|
11483U
|
11483U
MD177542 NIPPLE, INLET MANIFOLD8.8 |
MD177542 |
US $6.22 |
||
|
11498P
|
11498P
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
11498S
|
11498S
MF240056 BOLTWasher assembled,8x28 |
MF240056 |
from US $0.88 |
||
|
11498S
|
11498S
MF240071 BOLT, ROCKER COVERWasher assembled,8x90 |
MF240071 |
US $1.92 |
||
|
11498S
|
11498S
MF240656 BOLT, INLET MANIFOLDWasher assembled,8x28 |
MF240656 |
US $2.52 |
||
|
11498T
|
11498T
MF240080 BOLT, ENG RR MOUNTINGWasher assembled,10x20 |
MF240080 |
from US $1.21 |
||
|
11 110
|
Rocker cover
11 110
|
||||
|
11 110
|
Rocker cover
11 110
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
