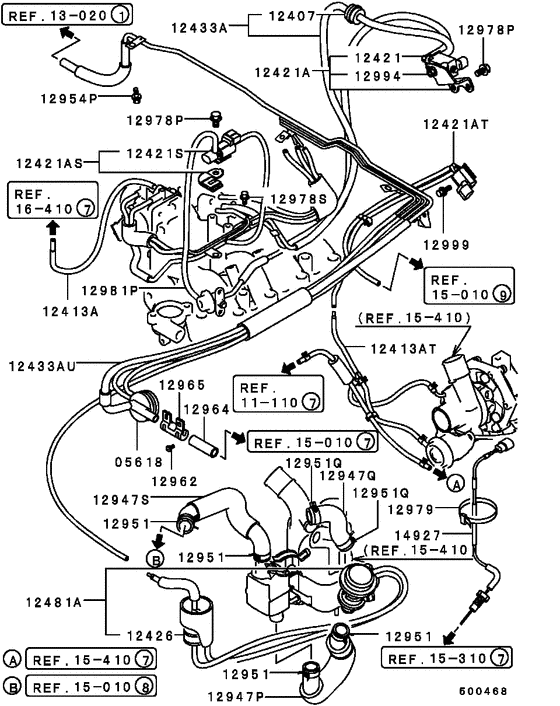

Emission control (-9511.3 MPI..W/TURBO) Diagram Mitsubishi MINICAB
- Year
- 1993 - 1997
- Sales region
- Japan
- Note
- BRAVO-GT(SUPER AERO-ROOF),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- BRAVO-GT
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MB906253 VALVE, PURGE CONTROL |
MB906253 |
US $71.04 |
||
|
12407
|
12407
MD175372 CHAMBER, EMISSION VACUUM CONTROL |
MD175372 |
US $3.11 |
||
|
12413A
|
12413A
MR161846 HOSE ASSY, EMISSION VACUUM CONTROL |
MR161846 |
US $7.70 |
||
|
12413AT
|
12413AT
MR160349 HOSE ASSY, EMISSION VACUUM CONTROL |
MR160349 |
US $52.54 |
||
|
12421
|
12421
MD199631 VALVE, EMISSION SOLENOID |
MD199631 |
US $69.56 |
||
|
12421A
|
12421A
MR126525 VALVE ASSY, EMISSION SOLENOID |
MR126525 |
US $66.60 |
||
|
12421AS
|
12421AS
MR160541 VALVE ASSY, EMISSION SOLENOID |
MR160541 |
US $72.52 |
||
|
12421AT
|
12421AT
MR187329 VALVE ASSY, EMISSION SOLENOID |
MR187329 |
US $72.52 |
||
|
12421S
|
12421S
MD134751 VALVE, EMISSION SOLENOID |
MD134751 |
US $72.52 |
||
|
12426
|
12426
MD017917 VALVE, EMISSION CONTROL DELAY |
MD017917 |
US $20.72 |
||
|
12433A
|
12433A
MR126497 HOSE & PIPE ASSY, EMISSION CONTROL |
MR126497 |
US $219.04 |
||
|
12433A
|
12433A
MR239211 HOSE & PIPE ASSY, EMISSION CONTROL |
MR239211 |
US $52.54 |
||
|
12433AU
|
12433AU
MD190586 HOSE & PIPE ASSY, EMISSION CONTROL |
MD190586 |
US $159.84 |
||
|
12433AU
|
12433AU
MR239210 HOSE & PIPE ASSY, EMISSION CONTROL |
MR239210 |
US $63.64 |
||
|
12481A
|
12481A
MB890855 VALVE, EMISSION CONTROL RELIEF |
MB890855 |
US $186.48 |
||
|
12947P
|
12947P
MB890856 HOSE, EMISSION VACUUM CONTROL EQUIP |
MB890856 |
US $67.34 |
||
|
12947Q
|
12947Q
MD178171 HOSE, EMISSION VACUUM CONTROL EQUIP |
MD178171 |
US $36.26 |
||
|
12947S
|
12947S
MR187659 HOSE, EMISSION VACUUM CONTROL EQUIP |
MR187659 |
US $66.60 |
||
|
12951
|
12951
MD006494 CLIP, EMISSION CONTROL EQUIP30 |
MD006494 |
US $3.26 |
||
|
12951
|
12951
MS660248 CLIP, T/CD=23 |
MS660248 |
from US $1.27 |
||
|
12951Q
|
12951Q
MS660170 CLIP, ENG BREATHERD=26 |
MS660170 |
US $3.42 |
||
|
12954P
|
12954P
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
12962
|
12962
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
12964
|
12964
MB925723 HOSE, FUEL VAPOR CONTROL11x50 |
MB925723 |
US $4.29 |
||
|
12965
|
12965
MB658570 CLIP, FUEL VAPOR CONTROL LINE17.5 |
MB658570 |
US $5.18 |
||
|
12978P
|
12978P
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
12978S
|
12978S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MD005473 BAND, ROCKER COVER140 |
MD005473 |
US $3.26 |
||
|
12981P
|
12981P
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12994
|
12994
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
12999
|
12999
MF243626 BOLT, ENG WIRINGWasher assembled,6x20 |
MF243626 |
from US $1.13 |
||
|
14927
|
14927
MB957213 SENSOR, EXHAUST HIGH TEMPERATURE |
MB957213 |
US $236.80 |
||
|
