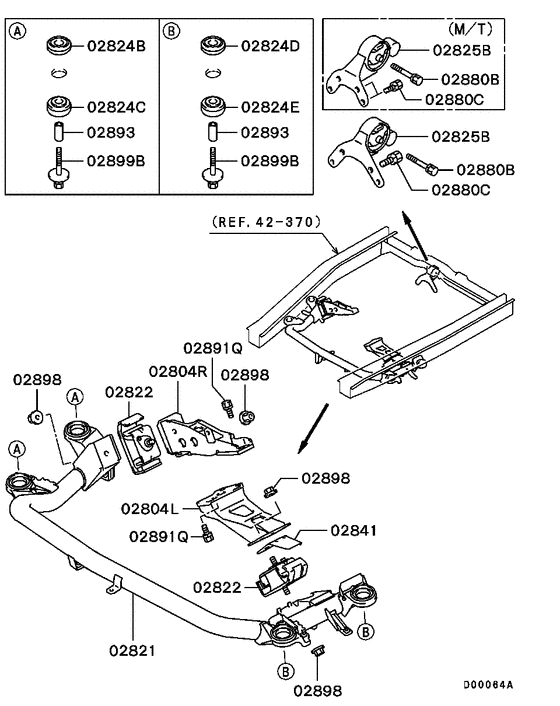

Engine mounting & support (TURBO) Diagram Mitsubishi MINICAB
- Year
- 2002 - 2009
- Sales region
- Japan
- Note
- T-BOX RX(HIGH-ROOF)TLEV,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- T-BOX RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD360954 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD360954 |
US $113.96 |
||
|
02804L
|
02804L
MD378777 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD378777 |
US $81.40 |
||
|
02804R
|
02804R
MD362064 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD362064 |
US $74.74 |
||
|
02804R
|
02804R
MN122392 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MN122392 |
US $65.86 |
||
|
02821
|
02821
MN110296 CROSSMEMBER, ENG MOUNTING |
MN110296 |
US $210.16 |
||
|
02821
|
02821
MN113757 CROSSMEMBER, ENG MOUNTING |
MN113757 |
US $156.88 |
||
|
02821
|
02821
MR353829 CROSSMEMBER, ENG MOUNTING |
MR353829 |
US $156.88 |
||
|
02821
|
02821
MR554554 CROSSMEMBER, ENG MOUNTING |
MR554554 |
US $156.88 |
||
|
02822
|
02822
MN110275 CUSHION, CROSSMEMBER ENG MOUNTING |
MN110275 |
US $56.24 |
||
|
02822
|
02822
MR353833 CUSHION, CROSSMEMBER ENG MOUNTING |
MR353833 |
US $56.24 |
||
|
02822
|
02822
MR353834 CUSHION, CROSSMEMBER ENG MOUNTING |
MR353834 |
US $56.24 |
||
|
02824B
|
02824B
MR353840 CUSHION, ENG FR MOUNTING |
MR353840 |
US $9.32 |
||
|
02824C
|
02824C
MR353839 CUSHION, ENG FR MOUNTING |
MR353839 |
US $12.43 |
||
|
02824D
|
02824D
MR491055 CUSHION, ENG FR MOUNTING |
MR491055 |
US $9.32 |
||
|
02824E
|
02824E
MR491054 CUSHION, ENG FR MOUNTING |
MR491054 |
US $12.43 |
||
|
02825B
|
02825B
MN110209 CUSHION, ENG RR MOUNTING |
MN110209 |
US $58.46 |
||
|
02841
|
02841
MN110177 PROTECTOR, ENG MOUNTING HEAT |
MN110177 |
US $13.02 |
||
|
02841
|
02841
MN110280 PROTECTOR, ENG MOUNTING HEAT |
MN110280 |
US $9.77 |
||
|
02841
|
02841
MR353550 PROTECTOR, ENG MOUNTING HEAT |
MR353550 |
US $9.92 |
||
|
02880B
|
02880B
MU240029 BOLT, ENG RR MOUNTINGWasher assembled,10x74 |
MU240029 |
US $5.75 |
||
|
02880C
|
02880C
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02880C
|
02880C
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
02891Q
|
02891Q
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02893
|
02893
MR234041 SPACER, ENG RR MOUNTING |
MR234041 |
US $2.96 |
||
|
02898
|
02898
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02899B
|
02899B
MR353841 BOLT, ENG FR MOUNTINGWasher assembled,10x85 |
MR353841 |
US $4.44 |
||
|
