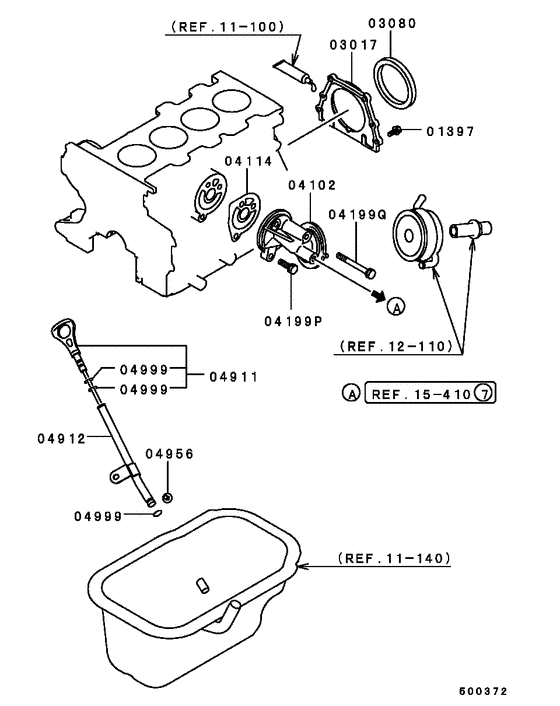

Cylinder block (ALL (OIL FILTER BRACKET ETC.)) Diagram Mitsubishi MINICAB
- Year
- 1998 - 2002
- Sales region
- Japan
- Note
- T-BOX RX(HIGH-ROOF),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- T-BOX RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01397
|
01397
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
03017
|
03017
MD179584 CASE, CRANKSHAFT RR OIL SEAL |
MD179584 |
US $30.78 |
||
|
03080
|
03080
MD329374 OIL SEAL, CRANKSHAFT, RR |
MD329374 |
from US $30.78 |
||
|
04102
|
04102
MD352109 BRACKET, OIL FILTER |
MD352109 |
US $129.50 |
||
|
04114
|
04114
MD193627 GASKET, OIL FILTER BRACKET |
MD193627 |
US $6.36 |
||
|
04199P
|
04199P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
04199Q
|
04199Q
MF241267 BOLT, TIMING CHAIN CASEWasher assembled,8x70 |
MF241267 |
US $3.40 |
||
|
04911
|
04911
MD361946 GAUGE, ENG OIL LEVEL |
MD361946 |
US $16.28 |
||
|
04911
|
04911
MD373424 GAUGE, ENG OIL LEVEL |
MD373424 |
US $17.76 |
||
|
04912
|
04912
MD361945 GUIDE, ENG OIL LEVEL GAUGE |
MD361945 |
US $22.20 |
||
|
04956
|
04956
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
04999
|
04999
MD075834 O-RING, ENG OIL FILLER9 |
MD075834 |
from US $1.15 |
||
|
04999
|
04999
MD317089 O-RING, ENG OIL FILLER |
MD317089 |
from US $1.35 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
11 140
|
Cover,rear plate & oil pan
11 140
|
||||
|
12 110
|
Oil pump & oil filter
12 110
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
