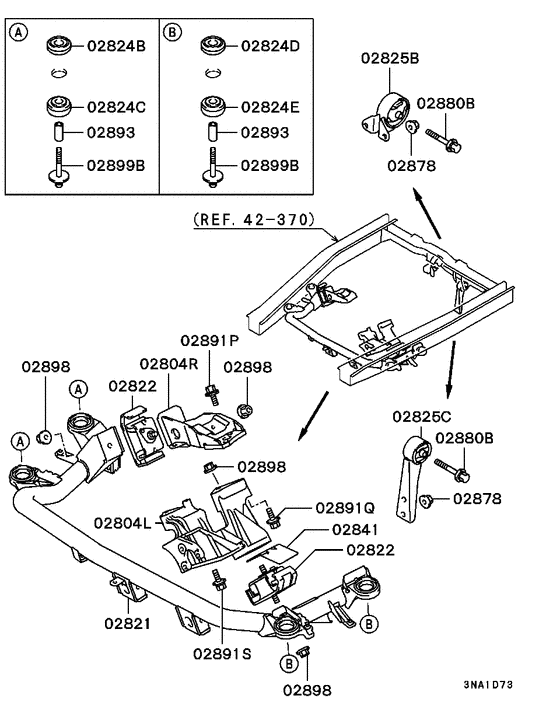

Engine mounting & support (ALL) Diagram Mitsubishi MINICAB
- Year
- 1998 - 2002
- Sales region
- Japan
- Note
- T-BOX RX(HIGH-ROOF),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- T-BOX RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD360956 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD360956 |
US $168.72 |
||
|
02804R
|
02804R
MD362284 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD362284 |
US $108.04 |
||
|
02821
|
02821
MR353832 CROSSMEMBER, ENG MOUNTING |
MR353832 |
US $251.60 |
||
|
02822
|
02822
MR353834 CUSHION, CROSSMEMBER ENG MOUNTING |
MR353834 |
US $56.24 |
||
|
02822
|
02822
MR353835 CUSHION, CROSSMEMBER ENG MOUNTING |
MR353835 |
US $83.62 |
||
|
02824B
|
02824B
MR353840 CUSHION, ENG FR MOUNTING |
MR353840 |
US $9.32 |
||
|
02824C
|
02824C
MR353839 CUSHION, ENG FR MOUNTING |
MR353839 |
US $12.43 |
||
|
02824D
|
02824D
MR491055 CUSHION, ENG FR MOUNTING |
MR491055 |
US $9.32 |
||
|
02824E
|
02824E
MR491054 CUSHION, ENG FR MOUNTING |
MR491054 |
US $12.43 |
||
|
02825B
|
02825B
MR353847 CUSHION, ENG RR MOUNTING |
MR353847 |
US $44.40 |
||
|
02825B
|
02825B
MR961915 CUSHION, ENG RR MOUNTING |
MR961915 |
US $48.10 |
||
|
02825C
|
02825C
MR353849 CUSHION, ENG RR MOUNTING |
MR353849 |
US $37.74 |
||
|
02841
|
02841
MR353550 PROTECTOR, ENG MOUNTING HEAT |
MR353550 |
US $9.92 |
||
|
02878
|
02878
MB200979 NUT, ENG RR MOUNTINGFlange,10 |
MB200979 |
from US $1.58 |
||
|
02880B
|
02880B
MU240029 BOLT, ENG RR MOUNTINGWasher assembled,10x74 |
MU240029 |
US $5.75 |
||
|
02891P
|
02891P
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02891Q
|
02891Q
MF244892 BOLT, ENG SUPPORT RODWasher assembled,10x70 |
MF244892 |
US $3.70 |
||
|
02891S
|
02891S
MF244863 BOLT, A/C COMPRESSORWasher assembled,8x60 |
MF244863 |
US $3.11 |
||
|
02893
|
02893
MR234041 SPACER, ENG RR MOUNTING |
MR234041 |
US $2.96 |
||
|
02898
|
02898
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02899B
|
02899B
MR353841 BOLT, ENG FR MOUNTINGWasher assembled,10x85 |
MR353841 |
US $4.44 |
||
|
