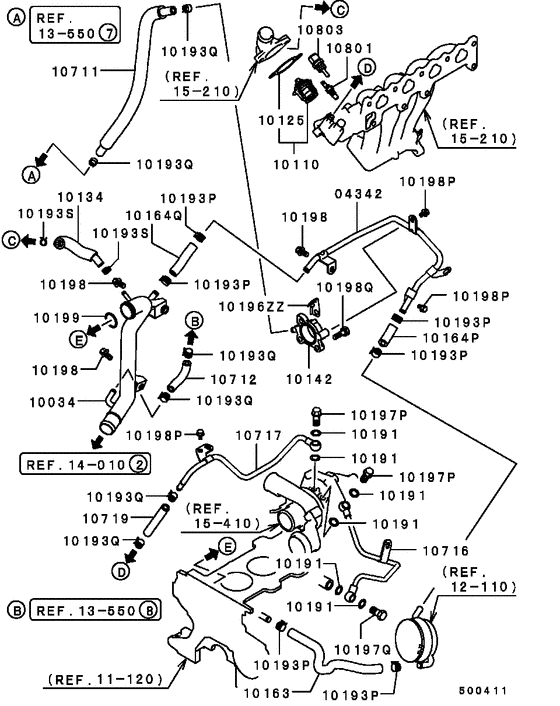

Water pipe & thermostat (ALL) Diagram Mitsubishi MINICAB
- Year
- 1998 - 2002
- Sales region
- Japan
- Note
- T-BOX RX(SUNROOF),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- T-BOX RX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04342
|
04342
MD358827 PIPE, ENG OIL COOLER WATER OUTLET |
MD358827 |
US $31.82 |
||
|
10034
|
10034
MD363210 PIPE, WATER PUMP INLET |
MD363210 |
US $88.06 |
||
|
10110
|
10110
MD972910
THERMOSTAT KIT
|
MD972910 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A025 THERMOSTAT |
1305A025 |
from US $44.05 |
||
|
10110
|
10110
MD972911
THERMOSTAT KIT
|
MD972911 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A026
THERMOSTAT KIT
|
1305A026 |
— | ||
|
10125
|
10125
MD107395
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD107395 |
— | ||
| replacement | |||||
|
10125
|
10125
MN115087 GASKET, COOLING WATER INLET HOSE FITTING |
MN115087 |
US $3.69 |
||
|
10134
|
10134
MD363211 HOSE, THROTTLE BODY WATER FEED6x200 |
MD363211 |
US $9.03 |
||
|
10142
|
10142
MD358829 FITTING, COOLING WATER INLET PIPE |
MD358829 |
US $42.18 |
||
|
10142
|
10142
MD367999 FITTING, COOLING WATER INLET PIPE |
MD367999 |
US $25.90 |
||
|
10163
|
10163
MD347774 HOSE, THROTTLE BODY WATER FEED |
MD347774 |
US $15.54 |
||
|
10164P
|
10164P
MD358909 HOSE, THROTTLE BODY WATER FEED |
MD358909 |
US $6.07 |
||
|
10164Q
|
10164Q
MD133517 HOSE, THROTTLE BODY WATER RETURN9x108 |
MD133517 |
US $8.21 |
||
|
10191
|
10191
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
10193P
|
10193P
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
10193Q
|
10193Q
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
10193S
|
10193S
MS660236 CLIPD=11 |
MS660236 |
from US $1.44 |
||
|
10196ZZ
|
10196ZZ
MR420049 BRACKET, COOLING WATER LINE |
MR420049 |
US $2.81 |
||
|
10197P
|
10197P
MD199646 EYEBOLT, COOLING WATER LINE12x23 |
MD199646 |
US $7.11 |
||
|
10197Q
|
10197Q
MF650113
EYEBOLT, ENG OIL LINE
|
MF650113 |
— | ||
| replacement | |||||
|
10197Q
|
10197Q
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
10198
|
10198
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
10198P
|
10198P
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
10198Q
|
10198Q
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
10199
|
10199
MD008434 O-RING, COOLING WATER LINE28.6 |
MD008434 |
US $6.43 |
||
|
10711
|
10711
MD357047 HOSE, THROTTLE BODY WATER RETURN8x380 |
MD357047 |
US $15.54 |
||
|
10712
|
10712
MD349147 HOSE, INLET MANIFOLD WATER RETURN |
MD349147 |
US $5.33 |
||
|
10716
|
10716
MD352398 PIPE, T/C WATER FEED |
MD352398 |
US $22.94 |
||
|
10717
|
10717
MD360961 PIPE, T/C WATER RETURN |
MD360961 |
US $20.72 |
||
|
10719
|
10719
MD323255 HOSE, THROTTLE BODY WATER FEED8x140 |
MD323255 |
from US $3.01 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD177572
SENSOR UNIT, WATER TEMPERATURE
|
MD177572 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
