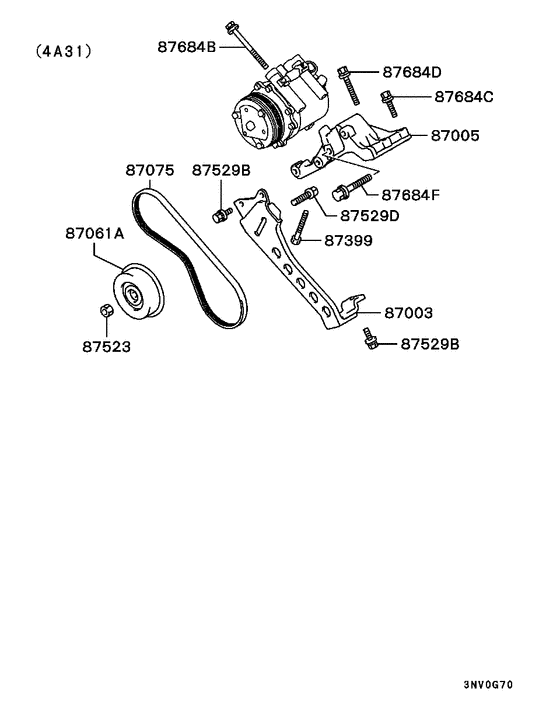

A/c condenser, piping (COMPRESSOR BRACKET) Diagram Mitsubishi MINICAB
- Year
- 1999 - 2001
- Sales region
- Japan
- Note
- M-LINE(MPI),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87003
|
87003
MR460801 BRACKET, A/C COMPRESSOR TENSION PULLEY |
MR460801 |
US $77.70 |
||
|
87005
|
87005
MR460800
BRACKET, A/C COMPRESSOR
|
MR460800 |
— | ||
|
87061A
|
87061A
MD308882 TENSIONER, ALTERNATOR DRIVE BELT |
MD308882 |
from US $54.19 |
||
|
87075
|
87075
MR460894 BELT, A/C |
MR460894 |
US $32.56 |
||
|
87399
|
87399
MD106821 BOLT, COOLING FAN10x75 |
MD106821 |
US $10.94 |
||
|
87523
|
87523
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
87529B
|
87529B
MF244851 BOLT, WATER HEATERWasher assembled,8x20 |
MF244851 |
from US $1.19 |
||
|
87529D
|
87529D
MD348954 STUD, A/C DRIVING |
MD348954 |
US $9.47 |
||
|
87684B
|
87684B
MF244870 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MF244870 |
from US $2.05 |
||
|
87684C
|
87684C
MF244857 BOLT, A/C DRIVINGWasher assembled,8x35 |
MF244857 |
from US $1.56 |
||
|
87684D
|
87684D
MF244864
BOLT, COOLING FAN
|
MF244864 |
— | ||
|
87684F
|
87684F
MF244891
BOLT, A/C COMPRESSOR
|
MF244891 |
— |
