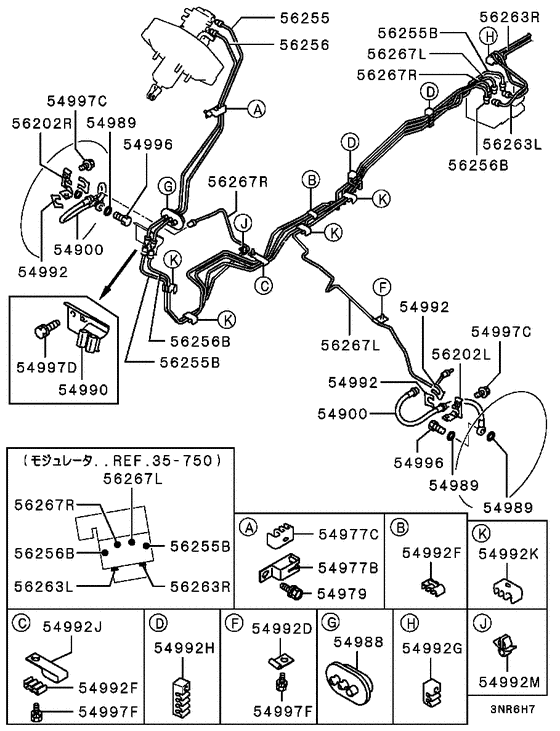

Brake line (FRONT..W/ABS(9904.1-)) Diagram Mitsubishi MINICAB
- Year
- 1999 - 2001
- Sales region
- Japan
- Note
- M-LINE(MPI),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR370451 HOSE, FR BRAKE260+185 |
MR370451 |
US $34.78 |
||
|
54977B
|
54977B
MB658518 CLIP, BRAKE FLUID LINE |
MB658518 |
US $6.66 |
||
|
54977C
|
54977C
MB658519 CLIP, BRAKE FLUID LINE |
MB658519 |
US $6.66 |
||
|
54979
|
54979
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
54988
|
54988
MR370490 GROMMET, BRAKE FLUID LINE9,3.8,3.8 |
MR370490 |
US $6.66 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54990
|
54990
MR370452 JOINT, BRAKE FLUID LINE |
MR370452 |
US $18.50 |
||
|
54990
|
54990
MR370453 JOINT, BRAKE FLUID LINE |
MR370453 |
US $18.50 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992D
|
54992D
MB316286 CLIP, FRAME BRAKE FLUID LINED=4.76 |
MB316286 |
US $8.48 |
||
|
54992F
|
54992F
MB668684 CLIP, BRAKE FLUID LINE4.7-4.7-4.7 |
MB668684 |
from US $1.66 |
||
|
54992G
|
54992G
MB895797 CLIP, BRAKE FLUID LINE4.8-4.8 |
MB895797 |
from US $2.40 |
||
|
54992H
|
54992H
MR205046 CLIP, BRAKE FLUID LINE4.8-4.8-4.8-4.8 |
MR205046 |
US $3.97 |
||
|
54992J
|
54992J
MB858606 CLIP, BRAKE FLUID LINE |
MB858606 |
US $4.44 |
||
|
54992K
|
54992K
MB658519 CLIP, BRAKE FLUID LINE |
MB658519 |
US $6.66 |
||
|
54992M
|
54992M
MU481005 CLIP, TRUNK LID LOCKING4.8 |
MU481005 |
US $2.74 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997C
|
54997C
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
54997C
|
54997C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
54997D
|
54997D
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
54997F
|
54997F
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
56202L
|
56202L
MR370512 BRACKET, BRAKE HOSE, LH |
MR370512 |
US $4.14 |
||
|
56202L
|
56202L
MR370518 BRACKET, BRAKE HOSE, LH |
MR370518 |
US $6.22 |
||
|
56202R
|
56202R
MR370513 BRACKET, BRAKE HOSE, RH |
MR370513 |
US $4.14 |
||
|
56202R
|
56202R
MR370519 BRACKET, BRAKE HOSE, RH |
MR370519 |
US $6.22 |
||
|
56255
|
56255
MR370431 TUBE, BRAKE M/CYL PRIMARY |
MR370431 |
US $13.91 |
||
|
56255B
|
56255B
MR370521 TUBE, BRAKE M/CYL PRIMARY |
MR370521 |
US $40.70 |
||
|
56255B
|
56255B
MR475872 TUBE, BRAKE M/CYL PRIMARY |
MR475872 |
US $75.48 |
||
|
56255B
|
56255B
MR569013 TUBE, BRAKE M/CYL PRIMARY |
MR569013 |
US $54.02 |
||
|
56256
|
56256
MR370432 TUBE, BRAKE M/CYL SECONDARY |
MR370432 |
US $13.62 |
||
|
56256B
|
56256B
MR370522 TUBE, BRAKE M/CYL SECONDARY |
MR370522 |
US $39.96 |
||
|
56256B
|
56256B
MR475873 TUBE, BRAKE M/CYL SECONDARY |
MR475873 |
US $73.26 |
||
|
56256B
|
56256B
MR569014 TUBE, BRAKE M/CYL SECONDARY |
MR569014 |
US $54.02 |
||
|
56263L
|
56263L
MR370525 TUBE, BRAKE MAIN, FR LH |
MR370525 |
US $48.84 |
||
|
56263R
|
56263R
MR370526 TUBE, BRAKE MAIN, FR RH |
MR370526 |
US $46.62 |
||
|
56267L
|
56267L
MR370523 TUBE, FR BRAKE, LH |
MR370523 |
US $44.40 |
||
|
56267L
|
56267L
MR475870 TUBE, FR BRAKE, LH |
MR475870 |
US $30.34 |
||
|
56267R
|
56267R
MR370524 TUBE, FR BRAKE, RH |
MR370524 |
US $44.40 |
||
|
56267R
|
56267R
MR475871 TUBE, FR BRAKE, RH |
MR475871 |
US $19.98 |
||
|
35 750
|
Modulator
35 750
|
||||
