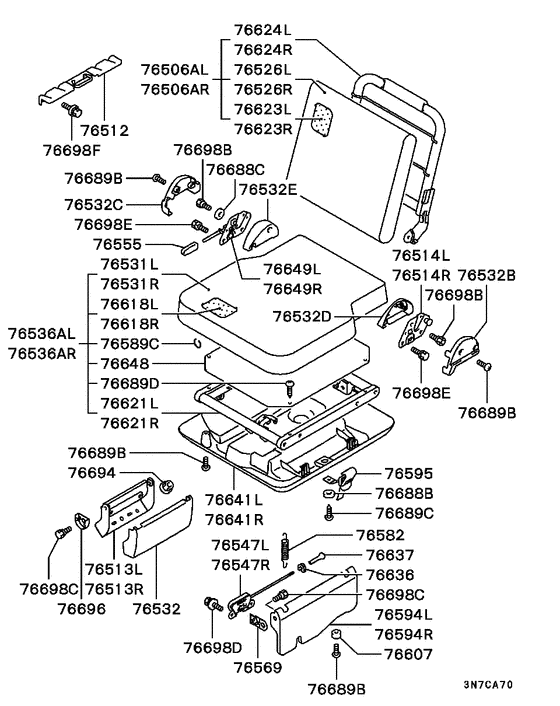

Third seat Diagram Mitsubishi MINICAB
- Year
- 1999 - 2001
- Sales region
- Japan
- Note
- M-LINE(MPI),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76506AL
|
76506AL
MR613326 BACK ASSY, 3RD SEAT, LH |
MR613326 |
US $569.30 |
||
|
76506AR
|
76506AR
MR613326 BACK ASSY, 3RD SEAT, LH |
MR613326 |
US $569.30 |
||
|
76512
|
76512
MR457855 BRACKET, 3RD SEAT |
MR457855 |
US $35.52 |
||
|
76513L
|
76513L
MR474814 BRACKET, 3RD SEAT ATTACHING, LH |
MR474814 |
US $40.70 |
||
|
76513R
|
76513R
MR474814 BRACKET, 3RD SEAT ATTACHING, LH |
MR474814 |
US $40.70 |
||
|
76514L
|
76514L
MR474805 BRACKET, 3RD SEAT HINGE, LH |
MR474805 |
US $13.76 |
||
|
76514R
|
76514R
MR474804 BRACKET, 3RD SEAT HINGE, RH |
MR474804 |
US $13.76 |
||
|
76526L
|
76526L
MR613329 COVER, 3RD SEAT BACK, LH |
MR613329 |
US $256.04 |
||
|
76526R
|
76526R
MR613329 COVER, 3RD SEAT BACK, LH |
MR613329 |
US $256.04 |
||
|
76531L
|
76531L
MR613327 COVER, 3RD SEAT CUSHION, LH |
MR613327 |
US $285.64 |
||
|
76531R
|
76531R
MR613328 COVER, 3RD SEAT CUSHION, RH |
MR613328 |
US $285.64 |
||
|
76532
|
76532
MR605938 COVER, 3RD SEAT HINGE |
MR605938 |
US $16.28 |
||
|
76532B
|
76532B
MR474820 COVER, 3RD SEAT HINGE |
MR474820 |
US $12.88 |
||
|
76532C
|
76532C
MR474819 COVER, 3RD SEAT HINGE |
MR474819 |
US $12.88 |
||
|
76532D
|
76532D
MR474822 COVER, 3RD SEAT HINGE |
MR474822 |
US $12.88 |
||
|
76532E
|
76532E
MR474821 COVER, 3RD SEAT HINGE |
MR474821 |
US $12.88 |
||
|
76536AL
|
76536AL
MR613324 CUSHION ASSY, 3RD SEAT, LH |
MR613324 |
US $615.89 |
||
|
76536AR
|
76536AR
MR613325 CUSHION ASSY, 3RD SEAT, RH |
MR613325 |
US $615.89 |
||
|
76547L
|
76547L
MR474809 LATCH, 3RD SEAT, LH |
MR474809 |
US $15.54 |
||
|
76547R
|
76547R
MR474810 LATCH, 3RD SEAT, RH |
MR474810 |
US $15.54 |
||
|
76555
|
76555
MR595484 LEVER, 3RD SEAT HINGE |
MR595484 |
US $5.33 |
||
|
76569
|
76569
MR524502 PLATE, 3RD SEAT CUSHION LOCK |
MR524502 |
US $2.66 |
||
|
76582
|
76582
MR474808 SPRING, 3RD SEAT |
MR474808 |
US $8.14 |
||
|
76582
|
76582
MR474837 SPRING, 3RD SEAT |
MR474837 |
US $8.14 |
||
|
76589C
|
76589C
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
||
|
76594L
|
76594L
MR474806 STAY, 3RD SEAT, LH |
MR474806 |
US $54.76 |
||
|
76594R
|
76594R
MR474807 STAY, 3RD SEAT, RH |
MR474807 |
US $54.76 |
||
|
76595
|
76595
MR617375 STRAP, 3RD SEAT CUSHION |
MR617375 |
US $87.32 |
||
|
76607
|
76607
MB165597 DAMPER, FR SEAT CUSHION |
MB165597 |
US $3.69 |
||
|
76618L
|
76618L
MR474828 PAD, 3RD SEAT CUSHION, LH |
MR474828 |
US $177.60 |
||
|
76618R
|
76618R
MR474829 PAD, 3RD SEAT CUSHION, RH |
MR474829 |
US $177.60 |
||
|
76621L
|
76621L
MR474826 FRAME, 3RD SEAT CUSHION, LH |
MR474826 |
US $236.80 |
||
|
76621R
|
76621R
MR474827 FRAME, 3RD SEAT CUSHION, RH |
MR474827 |
US $236.80 |
||
|
76623L
|
76623L
MR474834 PAD, 3RD SEAT BACK, LH |
MR474834 |
US $158.36 |
||
|
76623R
|
76623R
MR474834 PAD, 3RD SEAT BACK, LH |
MR474834 |
US $158.36 |
||
|
76624L
|
76624L
MR474833 FRAME, 3RD SEAT BACK, LH |
MR474833 |
US $236.80 |
||
|
76624R
|
76624R
MR474833 FRAME, 3RD SEAT BACK, LH |
MR474833 |
US $236.80 |
||
|
76636
|
76636
MR474811 GARNISH, 3RD SEAT CUSHION TIP UP KNOB |
MR474811 |
US $3.85 |
||
|
76637
|
76637
MR474836 KNOB, 3RD SEAT CUSHION TIP UP |
MR474836 |
US $7.40 |
||
|
76641L
|
76641L
MR617373 COVER, 3RD SEAT CUSHION UNDER, LH |
MR617373 |
US $64.38 |
||
|
76641R
|
76641R
MR617374 COVER, 3RD SEAT CUSHION UNDER, RH |
MR617374 |
US $64.38 |
||
|
76648
|
76648
MR474832 PANEL, 3RD SEAT CUSHION |
MR474832 |
US $51.06 |
||
|
76649L
|
76649L
MR474802 HINGE, 3RD SEAT, LH |
MR474802 |
US $22.20 |
||
|
76649R
|
76649R
MR474803 HINGE, 3RD SEAT, RH |
MR474803 |
US $22.20 |
||
|
76688B
|
76688B
MF450271 WASHER, FUEL LINEPlain,6 |
MF450271 |
US $2.60 |
||
|
76688C
|
76688C
MB941325 WASHER, 3RD SEAT |
MB941325 |
US $9.18 |
||
|
76688C
|
76688C
MF590008 WASHER, 3RD SEAT |
MF590008 |
US $2.07 |
||
|
76688C
|
76688C
MR524790 WASHER, 3RD SEATConical disk spring,m11 |
MR524790 |
US $1.92 |
||
|
76689B
|
76689B
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
76689C
|
76689C
MS450177 SCREW, OVERFENDERTapping,5x16 |
MS450177 |
from US $2.75 |
||
|
76689D
|
76689D
MU466001 SCREW, RR SEATTapping,4x16 |
MU466001 |
US $1.63 |
||
|
76694
|
76694
MU431508 NUT, HEATER8 |
MU431508 |
from US $1.07 |
||
|
76696
|
76696
MR474815 BUSHING, 3RD SEAT |
MR474815 |
US $4 |
||
|
76698B
|
76698B
MR474824 BOLT, 3RD SEAT |
MR474824 |
US $2.81 |
||
|
76698C
|
76698C
MB873362 BOLT, FR SEAT |
MB873362 |
US $4.44 |
||
|
76698C
|
76698C
MB941782 BOLT, 3RD SEAT |
MB941782 |
US $14.50 |
||
|
76698D
|
76698D
MR474825 BOLT, 3RD SEAT |
MR474825 |
US $2.81 |
||
|
76698E
|
76698E
MS240942 BOLT, PTO GEARSHIFT LINKWasher assembled,8x16 |
MS240942 |
US $2.46 |
||
|
76698F
|
76698F
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
