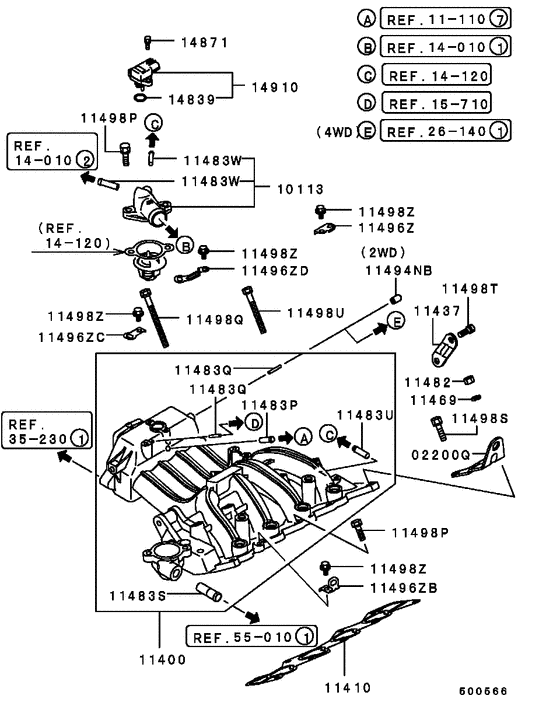

Inlet manifold (ALL) Diagram Mitsubishi MINICAB
- Year
- 1999 - 2001
- Sales region
- Japan
- Note
- M-LINE(MPI),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MR420695 ENGINE HANGER |
MR420695 |
US $12.58 |
||
|
10113
|
10113
MR420910 FITTING, COOLING WATER OUTLET HOSE |
MR420910 |
US $27.38 |
||
|
11400
|
11400
MR420694 MANIFOLD, INLET |
MR420694 |
US $474.66 |
||
|
11410
|
11410
MR420375 GASKET, INLET MANIFOLD |
MR420375 |
US $10.80 |
||
|
11437
|
11437
MR420151 STAY, INLET MANIFOLD |
MR420151 |
US $7.99 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483P
|
11483P
MD024599 NIPPLE, ROCKER COVER8 |
MD024599 |
US $5.03 |
||
|
11483Q
|
11483Q
MD010528 NIPPLE, ROCKER COVER4 |
MD010528 |
US $4 |
||
|
11483Q
|
11483Q
MR561234 NIPPLE, INLET MANIFOLD4 |
MR561234 |
US $4.14 |
||
|
11483S
|
11483S
MD016574 PIPE, INLET MANIFOLD |
MD016574 |
US $4.44 |
||
|
11483U
|
11483U
MD177542 NIPPLE, INLET MANIFOLD8.8 |
MD177542 |
US $6.22 |
||
|
11483W
|
11483W
MD061576 JOINT, INLET MANIFOLD6 |
MD061576 |
US $8.14 |
||
|
11483W
|
11483W
MD177542 NIPPLE, INLET MANIFOLD8.8 |
MD177542 |
US $6.22 |
||
|
11496Z
|
11496Z
MR420753 BRACKET, INLET MANIFOLD |
MR420753 |
US $1.48 |
||
|
11496ZB
|
11496ZB
MR420237 BRACKET, INLET MANIFOLD |
MR420237 |
US $2.22 |
||
|
11496ZC
|
11496ZC
MR420238 BRACKET, INLET MANIFOLD |
MR420238 |
US $1.48 |
||
|
11496ZD
|
11496ZD
MR507081 BRACKET, INLET MANIFOLD |
MR507081 |
US $1.48 |
||
|
11498P
|
11498P
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
11498Q
|
11498Q
MF240071 BOLT, ROCKER COVERWasher assembled,8x90 |
MF240071 |
US $1.92 |
||
|
11498S
|
11498S
MF240056 BOLTWasher assembled,8x28 |
MF240056 |
from US $0.88 |
||
|
11498S
|
11498S
MF240656 BOLT, INLET MANIFOLDWasher assembled,8x28 |
MF240656 |
US $2.52 |
||
|
11498T
|
11498T
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.01 |
||
|
11498U
|
11498U
MF240067 BOLT, TIMING POWER TRAIN CASEWasher assembled,8x70 |
MF240067 |
US $2.07 |
||
|
11498U
|
11498U
MF240666 BOLT, FUEL INJECTORWasher assembled,8x65 |
MF240666 |
US $2.81 |
||
|
11498Z
|
11498Z
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
14839
|
14839
MD632053 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632053 |
US $2.96 |
||
|
14871
|
14871
MF244804 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x16 |
MF244804 |
US $2.33 |
||
|
14910
|
14910
MD355556 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD355556 |
US $261.29 |
||
|
