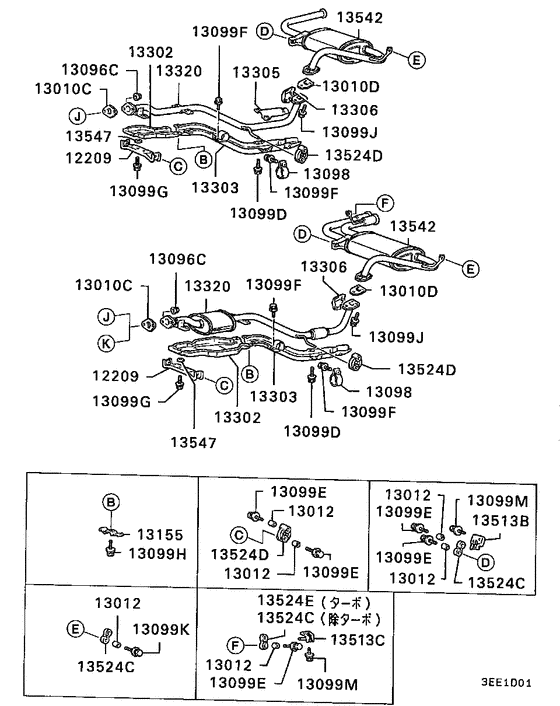

Exhaust pipe & muffler (CENTER & REAR) Diagram Mitsubishi MIRAGE 2DOOR HATCHBACK
- Year
- 1989 - 1990
- Sales region
- Japan
- Note
- FABIO(SUMMER SPECIAL),4FM/T
- drive
- 2WD
- transmission
- 4FM/T
- grade
- FABIO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB376933 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB376933 |
US $22.20 |
||
|
13010C
|
13010C
MB156180
GASKET, EXHAUST PIPE
|
MB156180 |
— | ||
| replacement | |||||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010D
|
13010D
MB313111 GASKET, EXHAUST PIPE |
MB313111 |
US $6.81 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13098
|
13098
MB514437 CLAMP, EXHAUST PIPE |
MB514437 |
US $5.92 |
||
|
13099D
|
13099D
MF247222 BOLT, FUEL TANK PROTECTORWasher assembled,6x12 |
MF247222 |
US $1.78 |
||
|
13099D
|
13099D
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
13099E
|
13099E
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099E
|
13099E
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099F
|
13099F
MF243626 BOLT, ENG WIRINGWasher assembled,6x20 |
MF243626 |
US $2.60 |
||
|
13099G
|
13099G
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099H
|
13099H
MF140002 BOLT, ROCKER COVERFlange,6x10 |
MF140002 |
US $0.96 |
||
| replacement | |||||
|
13099H
|
13099H
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
13099J
|
13099J
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099J
|
13099J
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099K
|
13099K
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13155
|
13155
MB059541 SPRING, EXHAUST MANIFOLD HEAT PROTECTOR |
MB059541 |
US $2.52 |
||
|
13302
|
13302
MB514500 PROTECTOR, EXHAUST CTR PIPE, FR LWR |
MB514500 |
US $20.72 |
||
|
13303
|
13303
MB514514 PROTECTOR, EXHAUST CTR PIPE, RR LWR |
MB514514 |
US $34.78 |
||
|
13305
|
13305
MB577363 PROTECTOR, EXHAUST CTR PIPE, UPR |
MB577363 |
US $17.02 |
||
|
13306
|
13306
MB549110 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549110 |
US $7.84 |
||
|
13320
|
13320
MB514117 PIPE, EXHAUST, CTR |
MB514117 |
US $266.40 |
||
|
13524C
|
13524C
MB252856 HANGER, CATALYTIC CONVERTER |
MB252856 |
US $9.92 |
||
|
13524D
|
13524D
MB376954 HANGER, EXHAUST MUFFLER |
MB376954 |
from US $10.43 |
||
|
13542
|
13542
MB514121 MUFFLER, EXHAUST MAIN |
MB514121 |
US $375.65 |
||
|
13542
|
13542
MB687510 MUFFLER, EXHAUST MAIN |
MB687510 |
US $375.65 |
||
|
13547
|
13547
MB111793 SEAT, EXHAUST MUFFLER HANGER |
MB111793 |
US $3.55 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
