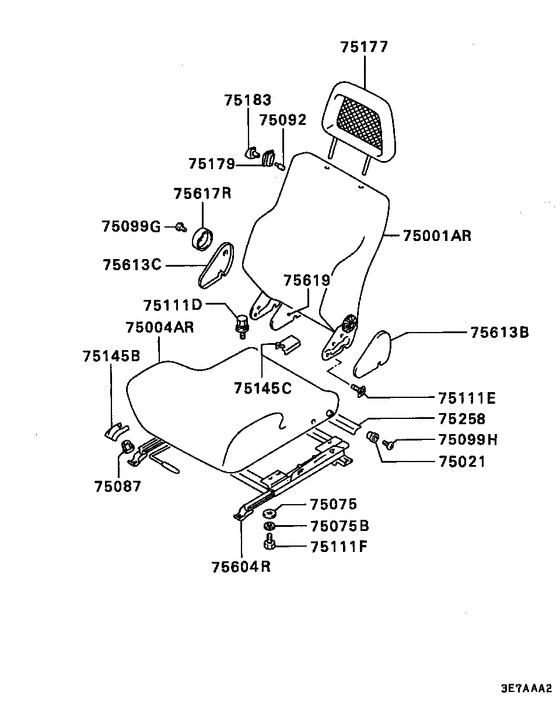

Front seat (RH(RECARO)) Diagram Mitsubishi MIRAGE 2DOOR HATCHBACK
- Year
- 1989 - 1990
- Sales region
- Japan
- Note
- SUPER SWIFT-R(CYBORG BUMPER),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- SUPER SWIFT-R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB781035 BACK ASSY, FR SEAT, RH |
MB781035 |
US $827.01 |
||
|
75004AR
|
75004AR
MB781031 CUSHION ASSY, FR SEAT, RH |
MB781031 |
US $758.58 |
||
|
75075
|
75075
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75075B
|
75075B
MF450464 WASHER, ENG AIR INTAKE LINESpring,6 |
MF450464 |
US $1.48 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75099G
|
75099G
MB850916 SCREW, FR SEAT |
MB850916 |
US $3.11 |
||
|
75099H
|
75099H
MB850917
SCREW, FR SEAT
|
MB850917 |
— | ||
|
75111D
|
75111D
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111E
|
75111E
MB850911 CLIP, FR SEAT |
MB850911 |
US $4.74 |
||
|
75111F
|
75111F
MS100059 BOLT, FR SEAT |
MS100059 |
US $4.59 |
||
|
75145B
|
75145B
MB715924
COVER, FR SEAT ANCHOR
|
MB715924 |
— | ||
|
75145C
|
75145C
MB715925
COVER, FR SEAT ANCHOR, RR
|
MB715925 |
— | ||
|
75177
|
75177
MB737202 HEADREST, FR SEAT |
MB737202 |
US $235.32 |
||
|
75617R
|
75617R
MB728427 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB728427 |
from US $6.88 |
