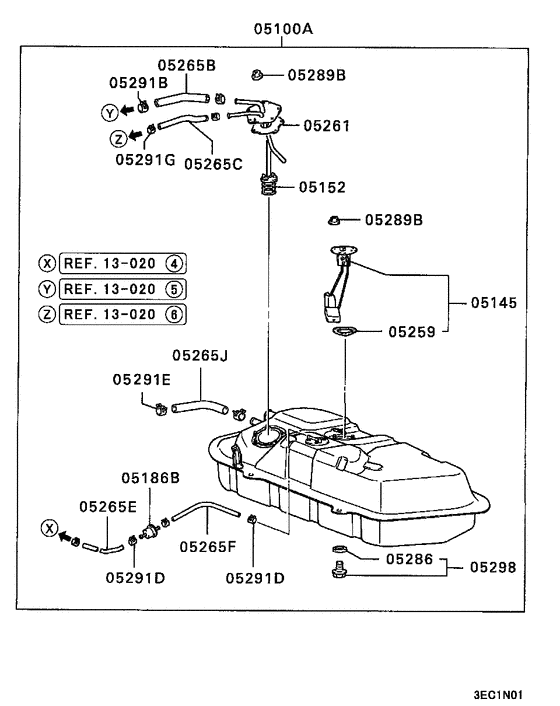

Fuel tank (TANK DISASSEMBLED PARTS 8909.2-) Diagram Mitsubishi MIRAGE 2DOOR HATCHBACK
- Year
- 1989 - 1991
- Sales region
- Japan
- Note
- FABIO-4,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- FABIO-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100A
|
05100A
MB621839 FUEL TANK ASSY |
MB621839 |
US $525.62 |
||
|
05145
|
05145
MB617230 GAUGE UNIT, FUEL TANK |
MB617230 |
US $90.28 |
||
|
05152
|
05152
MB129895 FILTER, FUEL IN TANK |
MB129895 |
from US $4.72 |
||
|
05186B
|
05186B
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05259
|
05259
MB382513 GASKET, FUEL TANK GAUGE |
MB382513 |
from US $5.21 |
||
|
05261
|
05261
MB400686 GASKET, FUEL TANK PUMP |
MB400686 |
from US $5.09 |
||
|
05265B
|
05265B
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05265C
|
05265C
MB678012 HOSE, FUEL TANK |
MB678012 |
US $12.73 |
||
|
05265E
|
05265E
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265F
|
05265F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265J
|
05265J
MB621897 HOSE, FUEL TANK |
MB621897 |
US $7.84 |
||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05291B
|
05291B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05291D
|
05291D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MS660174 CLIP, ENG OIL LINED=19.8 |
MS660174 |
US $2.81 |
||
|
05291G
|
05291G
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
