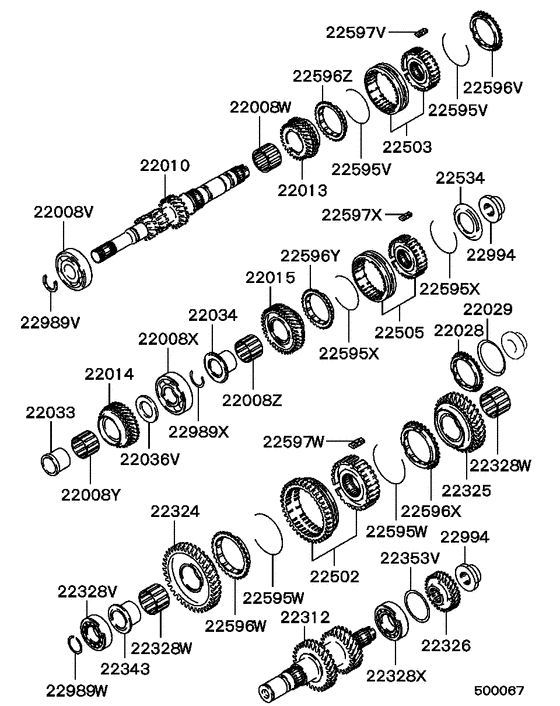

M/t gear (ALL (IN/SHAFT,INTM/SHAFT)) Diagram Mitsubishi MIRAGE 2DOOR HATCHBACK
- Year
- 1989 - 1991
- Sales region
- Japan
- Note
- FABIO-4,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- FABIO-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22008V
|
22008V
MD706495
BEARING, M/T INPUT SHAFT
|
MD706495 |
— | ||
| replacement | |||||
|
22008V
|
22008V
2526A001 BEARING, M/T INPUT SHAFTBall,68 |
2526A001 |
from US $28.12 |
||
|
22008W
|
22008W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22008X
|
22008X
MD718030 BEARING, M/T INPUT SHAFTBall,72 |
MD718030 |
from US $36.94 |
||
|
22008Y
|
22008Y
MD718031 BEARING, M/T 4TH SPEED GEARNeedle,42 |
MD718031 |
US $16.42 |
||
|
22008Z
|
22008Z
MD719137 BEARING, M/T INPUT SHAFTNeedle,37 |
MD719137 |
from US $10.04 |
||
|
22010
|
22010
MD730793 SHAFT, M/T INPUT |
MD730793 |
US $275.28 |
||
|
22013
|
22013
MD730488 GEAR, M/T INPUT SHAFT 3RD SPEEDN=26 |
MD730488 |
US $147.26 |
||
|
22014
|
22014
MD730490 GEAR, M/T INPUT SHAFT 4TH SPEEDN=31 |
MD730490 |
US $158.36 |
||
|
22015
|
22015
MD730894
GEAR, M/T INPUT SHAFT 5TH SPEED
|
MD730894 |
— | ||
|
22033
|
22033
MD718026 SLEEVE, M/T INPUT SHAFT 4TH GEAR BEARING |
MD718026 |
US $36.26 |
||
|
22034
|
22034
MD730783 SLEEVE, M/T INPUT SHAFT 5TH GEAR BEARING |
MD730783 |
US $39.96 |
||
|
22036V
|
22036V
MD730794
SPACER, M/T INPUT SHAFT
|
MD730794 |
— | ||
|
22312
|
22312
MD721377 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD721377 |
US $551.82 |
||
|
22324
|
22324
MD730482 GEAR, M/T INTERMEDIATE SHAFT 1ST SPEEDN=37 |
MD730482 |
US $190.92 |
||
|
22324
|
22324
MD743172 GEAR, M/T MAIN SHAFT 1ST SPEEDN=37 |
MD743172 |
US $198.32 |
||
|
22325
|
22325
MD730486 GEAR, M/T INTERMEDIATE SHAFT 2ND SPEEDN=32 |
MD730486 |
US $179.08 |
||
|
22325
|
22325
MD743183 GEAR, M/T MAIN SHAFT 2ND SPEEDN=32 |
MD743183 |
US $185 |
||
|
22326
|
22326
MD729560 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=28 |
MD729560 |
US $152.44 |
||
|
22326
|
22326
MD742116 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=28 |
MD742116 |
US $339.25 |
||
|
22328V
|
22328V
MD707506 BEARING, M/T OUTPUT SHAFTTaper roller,62 |
MD707506 |
from US $22.68 |
||
|
22328W
|
22328W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22328X
|
22328X
MD724118
BEARING, M/T INTERMEDIATE GEAR
|
MD724118 |
— | ||
|
22343
|
22343
MD719302 SLEEVE, M/T INTERMEDIATE SHAFT 1ST GEAR BEARING |
MD719302 |
US $36.26 |
||
|
22353V
|
22353V
MD712329
SPACER, M/T INTERMEDIATE SHAFT
|
MD712329 |
— | ||
|
22353V
|
22353V
MD712330 SPACER, M/T INTERMEDIATE SHAFT1.40 |
MD712330 |
US $7.10 |
||
|
22353V
|
22353V
MD712331 SPACER, M/T INTERMEDIATE SHAFT1.43 |
MD712331 |
US $6.70 |
||
|
22353V
|
22353V
MD712332 SPACER, M/T INTERMEDIATE SHAFT1.46 |
MD712332 |
US $7.84 |
||
|
22353V
|
22353V
MD712333 SPACER, M/T INTERMEDIATE SHAFT1.49 |
MD712333 |
US $7.84 |
||
|
22353V
|
22353V
MD712334 SPACER, M/T INTERMEDIATE SHAFT1.52 |
MD712334 |
US $7.84 |
||
|
22353V
|
22353V
MD712335 SPACER, M/T INTERMEDIATE SHAFT1.55 |
MD712335 |
US $7.84 |
||
|
22353V
|
22353V
MD712336 SPACER, M/T INTERMEDIATE SHAFT1.58 |
MD712336 |
US $7.84 |
||
|
22353V
|
22353V
MD712337 SPACER, M/T INTERMEDIATE SHAFT1.61 |
MD712337 |
US $7.84 |
||
|
22353V
|
22353V
MD712338 SPACER, M/T INTERMEDIATE SHAFT1.64 |
MD712338 |
US $7.84 |
||
|
22353V
|
22353V
MD712339 SPACER, M/T INTERMEDIATE SHAFT1.67 |
MD712339 |
US $7.84 |
||
|
22353V
|
22353V
MD712340 SPACER, M/T INTERMEDIATE SHAFT1.70 |
MD712340 |
US $7.84 |
||
|
22353V
|
22353V
MD712341 SPACER, M/T INTERMEDIATE SHAFT1.73 |
MD712341 |
US $7.84 |
||
|
22353V
|
22353V
MD712342 SPACER, M/T INTERMEDIATE SHAFT1.76 |
MD712342 |
US $7.84 |
||
|
22353V
|
22353V
MD712343 SPACER, M/T INTERMEDIATE SHAFT1.79 |
MD712343 |
US $7.84 |
||
|
22353V
|
22353V
MD712344 SPACER, M/T INTERMEDIATE SHAFT1.82 |
MD712344 |
US $7.84 |
||
|
22353V
|
22353V
MD712345 SPACER, M/T INTERMEDIATE SHAFT1.85 |
MD712345 |
US $7.84 |
||
|
22353V
|
22353V
MD712346
SPACER, M/T OUTPUT SHAFT
|
MD712346 |
— | ||
|
22353V
|
22353V
MD712347 SPACER, M/T OUTPUT SHAFT1.28 |
MD712347 |
US $6.36 |
||
|
22353V
|
22353V
MD712348 SPACER, M/T OUTPUT SHAFT1.31 |
MD712348 |
US $6.84 |
||
|
22353V
|
22353V
MD712349 SPACER, M/T OUTPUT SHAFT1.34 |
MD712349 |
US $6.84 |
||
|
22353V
|
22353V
MD720961 SPACER, M/T OUTPUT SHAFT1.19 |
MD720961 |
US $6.36 |
||
|
22353V
|
22353V
MD720962 SPACER, M/T OUTPUT SHAFT1.22 |
MD720962 |
US $6.36 |
||
|
22502
|
22502
MD724636 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD724636 |
US $202.76 |
||
|
22502
|
22502
MD742462 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD742462 |
US $136.90 |
||
|
22502
|
22502
MD742467 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD742467 |
US $201.28 |
||
|
22503
|
22503
MD735298 HUB & SLEEVE, M/T 3RD & 4TH SYNCH |
MD735298 |
US $136.90 |
||
|
22503
|
22503
MD741549
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD741549 |
— | ||
| replacement | |||||
|
22503
|
22503
MD747646
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD747646 |
— | ||
|
22505
|
22505
MD735299 HUB & SLEEVE, M/T 5TH SYNCH |
MD735299 |
US $136.90 |
||
|
22505
|
22505
MD741396
HUB & SLEEVE, M/T H-L SYNCH
|
MD741396 |
— | ||
| replacement | |||||
|
22505
|
22505
MD747639 HUB & SLEEVE, M/T 5TH SYNCH |
MD747639 |
US $196.99 |
||
|
22534
|
22534
MD723919 PLATE, M/T 5TH SYNCH HUB STOPPER |
MD723919 |
from US $2.65 |
||
|
22595V
|
22595V
MD728907 SPRING, M/T 1ST & 2ND SYNCH KEY |
MD728907 |
US $4.88 |
||
|
22595V
|
22595V
MD738050 SPRING, M/T SYNCH KEY |
MD738050 |
US $3.42 |
||
|
22595V
|
22595V
MD742441 SPRING, M/T SYNCH KEY |
MD742441 |
US $5.88 |
||
|
22595W
|
22595W
MD728906 SPRING, M/T SYNCH KEY |
MD728906 |
US $4.88 |
||
|
22595W
|
22595W
MD739065
SPRING, M/T SYNCH KEY
|
MD739065 |
— | ||
|
22595W
|
22595W
MD742445 SPRING, M/T SYNCH KEY |
MD742445 |
US $5.88 |
||
|
22595X
|
22595X
MD728908
SPRING, M/T 3RD & 4TH SYNCH KEY
|
MD728908 |
— | ||
| replacement | |||||
|
22595X
|
22595X
MD739066 SPRING, M/T SYNCH KEY |
MD739066 |
US $4.38 |
||
|
22595X
|
22595X
MD739066 SPRING, M/T SYNCH KEY |
MD739066 |
US $4.38 |
||
|
22596V
|
22596V
MD730086 RING, M/T HIGH SPEED GEAR SYNCH |
MD730086 |
US $71.14 |
||
|
22596V
|
22596V
MD742541
RING, M/T SYNCH
|
MD742541 |
— | ||
| replacement | |||||
|
22596V
|
22596V
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596W
|
22596W
MD727565
RING, M/T SYNCH
|
MD727565 |
— | ||
|
22596W
|
22596W
MD742419 RING, M/T SYNCH |
MD742419 |
US $46.51 |
||
|
22596X
|
22596X
MD727557
RING, M/T 2ND SPEED GEAR SYNCH
|
MD727557 |
— | ||
|
22596X
|
22596X
MD742536 RING, M/T SYNCH |
MD742536 |
US $43.09 |
||
|
22596Y
|
22596Y
MD727453
RING, M/T HIGH SPEED GEAR SYNCH
|
MD727453 |
— | ||
|
22596Y
|
22596Y
MD738532 RING, M/T HIGH SPEED GEAR SYNCH |
MD738532 |
US $54.04 |
||
|
22596Z
|
22596Z
MD730086 RING, M/T HIGH SPEED GEAR SYNCH |
MD730086 |
US $71.14 |
||
|
22596Z
|
22596Z
MD742541
RING, M/T SYNCH
|
MD742541 |
— | ||
| replacement | |||||
|
22596Z
|
22596Z
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22597V
|
22597V
MD734268
KEY, M/T SYNCH
|
MD734268 |
— | ||
| replacement | |||||
|
22597V
|
22597V
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22597V
|
22597V
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22597W
|
22597W
MD728902 KEY, M/T SYNCH |
MD728902 |
US $7.10 |
||
|
22597W
|
22597W
MD742775 KEY, M/T SYNCH |
MD742775 |
US $6.98 |
||
|
22597X
|
22597X
MD735288 KEY, M/T SYNCH |
MD735288 |
US $7.10 |
||
|
22597X
|
22597X
MD742778 KEY, M/T SYNCH |
MD742778 |
from US $3.67 |
||
|
22989V
|
22989V
MD706537 SNAP RING, M/T POWER TRAIN2.24 |
MD706537 |
US $5.88 |
||
|
22989V
|
22989V
MD706538 SNAP RING, M/T POWER TRAIN2.31 |
MD706538 |
US $5.88 |
||
|
22989V
|
22989V
MD706539 SNAP RING, M/T POWER TRAIN2.38 |
MD706539 |
from US $5.66 |
||
|
22989W
|
22989W
MD723276 SNAP RING, M/T POWER TRAIN1.4 |
MD723276 |
US $8.62 |
||
|
22989W
|
22989W
MD723277 SNAP RING, M/T POWER TRAIN1.5 |
MD723277 |
US $7.66 |
||
|
22989W
|
22989W
MD723278
SNAP RING, M/T POWER TRAIN
|
MD723278 |
— | ||
|
22989W
|
22989W
MD723279
SNAP RING, M/T POWER TRAIN
|
MD723279 |
— | ||
|
22989X
|
22989X
MD723276 SNAP RING, M/T POWER TRAIN1.4 |
MD723276 |
US $8.62 |
||
|
22989X
|
22989X
MD723277 SNAP RING, M/T POWER TRAIN1.5 |
MD723277 |
US $7.66 |
||
|
22989X
|
22989X
MD723278
SNAP RING, M/T POWER TRAIN
|
MD723278 |
— | ||
|
22989X
|
22989X
MD723279
SNAP RING, M/T POWER TRAIN
|
MD723279 |
— | ||
|
22989X
|
22989X
MD730889 SNAP RING, M/T POWER TRAIN1.45 |
MD730889 |
US $7.25 |
||
|
22989X
|
22989X
MD730890
SNAP RING, M/T POWER TRAIN
|
MD730890 |
— | ||
|
22989X
|
22989X
MD730891
SNAP RING, M/T POWER TRAIN
|
MD730891 |
— | ||
|
22989X
|
22989X
MD730892 SNAP RING, M/T POWER TRAIN1.75 |
MD730892 |
US $7.25 |
||
|
22994
|
22994
MD718035 NUT, M/T POWER TRAINLock,22 |
MD718035 |
US $11.63 |
||
