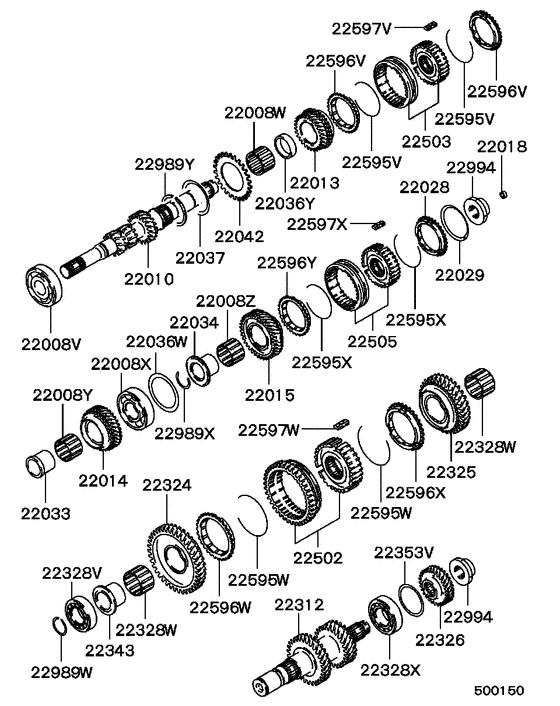

M/t gear (W/TURBO (IN/SHAFT,INTM/SHAFT)) Diagram Mitsubishi MIRAGE 2DOOR HATCHBACK
- Year
- 1989 - 1991
- Sales region
- Japan
- Note
- CYBORG(TURBO),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- CYBORG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22008V
|
22008V
MT372041
BEARING, M/T INPUT SHAFT
|
MT372041 |
— | ||
| replacement | |||||
|
22008V
|
22008V
MD732314 BEARING, M/T INPUT SHAFT |
MD732314 |
US $35.57 |
||
|
22008W
|
22008W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22008X
|
22008X
MD726235
BEARING, M/T INPUT SHAFT
|
MD726235 |
— | ||
|
22008Y
|
22008Y
MD718031 BEARING, M/T 4TH SPEED GEARNeedle,42 |
MD718031 |
US $16.42 |
||
|
22008Z
|
22008Z
MD719137 BEARING, M/T INPUT SHAFTNeedle,37 |
MD719137 |
from US $10.04 |
||
|
22010
|
22010
MD730905 SHAFT, M/T INPUT |
MD730905 |
US $278.24 |
||
|
22010
|
22010
MD741634 SHAFT, M/T INPUT |
MD741634 |
US $278.24 |
||
|
22013
|
22013
MD731026 GEAR, M/T INPUT SHAFT 3RD SPEEDN=26 |
MD731026 |
US $170.20 |
||
|
22013
|
22013
MD742728 GEAR, M/T INPUT SHAFT 3RD SPEEDN=26 |
MD742728 |
US $138.38 |
||
|
22014
|
22014
MD730492 GEAR, M/T INPUT SHAFT 4TH SPEEDN=30 |
MD730492 |
US $182.04 |
||
|
22014
|
22014
MD742729 GEAR, M/T INPUT SHAFT 4TH SPEEDN=30 |
MD742729 |
US $138.38 |
||
|
22015
|
22015
MD730496 GEAR, M/T INPUT SHAFT 5TH SPEEDN=33 |
MD730496 |
US $153.92 |
||
|
22015
|
22015
MD742580 GEAR, M/T INPUT SHAFT 5TH SPEEDN=33 |
MD742580 |
US $153.92 |
||
|
22018
|
22018
MD739390 OIL SEAL, M/T INPUT SHAFT RR END |
MD739390 |
US $12.45 |
||
|
22028
|
22028
MD724884 RING, M/T SYNCH |
MD724884 |
US $44.40 |
||
|
22028
|
22028
MD742051
RING, M/T INPUT SHAFT REV BRAKE
|
MD742051 |
— | ||
|
22029
|
22029
MD737197 SPRING, M/T REV BRAKE WAVE |
MD737197 |
US $6.96 |
||
|
22033
|
22033
MD728102 SLEEVE, M/T INPUT SHAFT 4TH GEAR BEARING |
MD728102 |
US $37 |
||
|
22034
|
22034
MD730744
SLEEVE, M/T INPUT SHAFT 5TH GEAR BEARING
|
MD730744 |
— | ||
|
22036W
|
22036W
MD700270 SPACER, M/T DIFF1.13 |
MD700270 |
US $6.02 |
||
|
22036W
|
22036W
MD700271 SPACER, M/T DIFF1.22 |
MD700271 |
from US $5.11 |
||
|
22036W
|
22036W
MD706573 SPACER, M/T DIFF1.40 |
MD706573 |
from US $4.93 |
||
|
22036W
|
22036W
MD706574 SPACER, M/T DIFF1.31 |
MD706574 |
US $6.84 |
||
|
22036W
|
22036W
MD710454 SPACER, M/T DIFF1.10 |
MD710454 |
US $6.02 |
||
|
22036W
|
22036W
MD710455 SPACER, M/T DIFF1.16 |
MD710455 |
US $6.02 |
||
|
22036W
|
22036W
MD710456 SPACER, M/T DIFF1.19 |
MD710456 |
from US $4.93 |
||
|
22036W
|
22036W
MD710457 SPACER, M/T DIFF1.25 |
MD710457 |
US $6.02 |
||
|
22036W
|
22036W
MD710458 SPACER, M/T DIFF1.28 |
MD710458 |
US $6.84 |
||
|
22036W
|
22036W
MD710459 SPACER, M/T DIFF1.34 |
MD710459 |
US $6.84 |
||
|
22036W
|
22036W
MD710460 SPACER, M/T DIFF1.37 |
MD710460 |
from US $5.11 |
||
|
22036W
|
22036W
MD710461 SPACER, M/T DIFF1.43 |
MD710461 |
US $15.05 |
||
|
22036W
|
22036W
MD710462 SPACER, M/T DIFF1.46 |
MD710462 |
US $15.05 |
||
|
22036W
|
22036W
MD720937 SPACER, M/T DIFF0.83 |
MD720937 |
from US $5.07 |
||
|
22036W
|
22036W
MD720938 SPACER, M/T DIFF0.86 |
MD720938 |
US $6.02 |
||
|
22036W
|
22036W
MD720939 SPACER, M/T DIFF0.89 |
MD720939 |
from US $5.11 |
||
|
22036W
|
22036W
MD720940 SPACER, M/T DIFF0.92 |
MD720940 |
from US $5.11 |
||
|
22036W
|
22036W
MD720941 SPACER, M/T DIFF0.95 |
MD720941 |
US $6.02 |
||
|
22036W
|
22036W
MD720942 SPACER, M/T DIFF0.98 |
MD720942 |
from US $5.11 |
||
|
22036W
|
22036W
MD720943 SPACER, M/T DIFF1.01 |
MD720943 |
US $6.02 |
||
|
22036W
|
22036W
MD720944 SPACER, M/T DIFF1.04 |
MD720944 |
US $6.02 |
||
|
22036W
|
22036W
MD720945 SPACER, M/T DIFF1.07 |
MD720945 |
US $6.02 |
||
|
22036W
|
22036W
MD727661 SPACER, M/T DIFF0.80 |
MD727661 |
US $5.18 |
||
|
22036Y
|
22036Y
MD723128 SPACER, M/T INPUT SHAFT6.9 |
MD723128 |
US $8.88 |
||
|
22037
|
22037
MD723535 SPRING, M/T INPUT SHAFT SUB GEAR |
MD723535 |
US $5.48 |
||
|
22042
|
22042
MD730051 SUB GEAR, M/T INPUT SHAFT |
MD730051 |
US $34.78 |
||
|
22042
|
22042
MD741925
SUB GEAR, M/T INPUT SHAFT
|
MD741925 |
— | ||
|
22312
|
22312
MD727990 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD727990 |
US $553.28 |
||
|
22312
|
22312
MD738952 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD738952 |
US $567.84 |
||
|
22312
|
22312
MD740193 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD740193 |
US $535.81 |
||
|
22324
|
22324
MD731025 GEAR, M/T INTERMEDIATE SHAFT 1ST SPEEDN=37 |
MD731025 |
US $253.08 |
||
|
22324
|
22324
MD738976 GEAR, M/T INTERMEDIATE SHAFT 1ST SPEEDN=37 |
MD738976 |
US $253.08 |
||
|
22324
|
22324
MD743177 GEAR, M/T MAIN SHAFT 1ST SPEEDN=37 |
MD743177 |
US $236.80 |
||
|
22325
|
22325
MD729454 GEAR, M/T INTERMEDIATE SHAFT 2ND SPEEDN=32 |
MD729454 |
US $179.08 |
||
|
22325
|
22325
MD740215 GEAR, M/T INTERMEDIATE SHAFT 2ND SPEEDN=32 |
MD740215 |
US $179.08 |
||
|
22325
|
22325
MD743190 GEAR, M/T MAIN SHAFT 2ND SPEEDN=32 |
MD743190 |
US $179.08 |
||
|
22326
|
22326
MD727755 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=22 |
MD727755 |
US $245.68 |
||
|
22326
|
22326
MD742581 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=22 |
MD742581 |
US $227.92 |
||
|
22328V
|
22328V
MD726236
BEARING, M/T INTERMEDIATE GEAR
|
MD726236 |
— | ||
|
22328W
|
22328W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22328W
|
22328W
MD737652 BEARING, M/T INTERMEDIATE GEARNeedle,47 |
MD737652 |
US $28.73 |
||
|
22328X
|
22328X
MD724117
BEARING, M/T INTERMEDIATE GEAR
|
MD724117 |
— | ||
|
22328X
|
22328X
MD736638
BEARING, M/T INTERMEDIATE GEAR
|
MD736638 |
— | ||
|
22343
|
22343
MD726228 SLEEVE, M/T INTERMEDIATE SHAFT 1ST GEAR BEARING |
MD726228 |
US $45.14 |
||
|
22343
|
22343
MD737651 SLEEVE, M/T OUTPUT SHAFT 1ST SPEED GEAR |
MD737651 |
US $37.62 |
||
|
22353V
|
22353V
MD712329
SPACER, M/T INTERMEDIATE SHAFT
|
MD712329 |
— | ||
|
22353V
|
22353V
MD712330 SPACER, M/T INTERMEDIATE SHAFT1.40 |
MD712330 |
US $7.10 |
||
|
22353V
|
22353V
MD712331 SPACER, M/T INTERMEDIATE SHAFT1.43 |
MD712331 |
US $6.70 |
||
|
22353V
|
22353V
MD712346
SPACER, M/T OUTPUT SHAFT
|
MD712346 |
— | ||
|
22353V
|
22353V
MD712347 SPACER, M/T OUTPUT SHAFT1.28 |
MD712347 |
US $6.36 |
||
|
22353V
|
22353V
MD712348 SPACER, M/T OUTPUT SHAFT1.31 |
MD712348 |
US $6.84 |
||
|
22353V
|
22353V
MD712349 SPACER, M/T OUTPUT SHAFT1.34 |
MD712349 |
US $6.84 |
||
|
22353V
|
22353V
MD720948 SPACER, M/T OUTPUT SHAFT0.80 |
MD720948 |
US $6.02 |
||
|
22353V
|
22353V
MD720949 SPACER, M/T OUTPUT SHAFT0.83 |
MD720949 |
US $6.36 |
||
|
22353V
|
22353V
MD720950 SPACER, M/T OUTPUT SHAFT0.86 |
MD720950 |
US $6.36 |
||
|
22353V
|
22353V
MD720951 SPACER, M/T OUTPUT SHAFT0.89 |
MD720951 |
US $6.36 |
||
|
22353V
|
22353V
MD720952 SPACER, M/T OUTPUT SHAFT0.92 |
MD720952 |
US $6.36 |
||
|
22353V
|
22353V
MD720953 SPACER, M/T OUTPUT SHAFT0.95 |
MD720953 |
US $6.36 |
||
|
22353V
|
22353V
MD720954 SPACER, M/T OUTPUT SHAFT0.98 |
MD720954 |
US $6.36 |
||
|
22353V
|
22353V
MD720955 SPACER, M/T OUTPUT SHAFT1.01 |
MD720955 |
US $6.36 |
||
|
22353V
|
22353V
MD720956 SPACER, M/T OUTPUT SHAFT1.04 |
MD720956 |
US $6.36 |
||
|
22353V
|
22353V
MD720957 SPACER, M/T OUTPUT SHAFT1.07 |
MD720957 |
US $6.36 |
||
|
22353V
|
22353V
MD720958 SPACER, M/T OUTPUT SHAFT1.10 |
MD720958 |
US $6.36 |
||
|
22353V
|
22353V
MD720959 SPACER, M/T OUTPUT SHAFT1.13 |
MD720959 |
US $6.36 |
||
|
22353V
|
22353V
MD720960
SPACER, M/T OUTPUT SHAFT
|
MD720960 |
— | ||
|
22353V
|
22353V
MD720961 SPACER, M/T OUTPUT SHAFT1.19 |
MD720961 |
US $6.36 |
||
|
22353V
|
22353V
MD720962 SPACER, M/T OUTPUT SHAFT1.22 |
MD720962 |
US $6.36 |
||
|
22502
|
22502
MD724636 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD724636 |
US $202.76 |
||
|
22502
|
22502
MD738868 HUB & SLEEVE, M/T H-L SYNCH |
MD738868 |
US $202.76 |
||
|
22502
|
22502
MD742465 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD742465 |
US $195.36 |
||
|
22502
|
22502
MD742468
HUB & SLEEVE, M/T 1ST & 2ND SYNCH
|
MD742468 |
— | ||
|
22503
|
22503
MD735298 HUB & SLEEVE, M/T 3RD & 4TH SYNCH |
MD735298 |
US $136.90 |
||
|
22503
|
22503
MD741549
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD741549 |
— | ||
| replacement | |||||
|
22503
|
22503
MD747646
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD747646 |
— | ||
|
22505
|
22505
MD735299 HUB & SLEEVE, M/T 5TH SYNCH |
MD735299 |
US $136.90 |
||
|
22505
|
22505
MD742730 HUB & SLEEVE, M/T H-L SYNCH |
MD742730 |
US $195.36 |
||
|
22595V
|
22595V
MD728907 SPRING, M/T 1ST & 2ND SYNCH KEY |
MD728907 |
US $4.88 |
||
|
22595V
|
22595V
MD738050 SPRING, M/T SYNCH KEY |
MD738050 |
US $3.42 |
||
|
22595V
|
22595V
MD742441 SPRING, M/T SYNCH KEY |
MD742441 |
US $5.88 |
||
|
22595W
|
22595W
MD728906 SPRING, M/T SYNCH KEY |
MD728906 |
US $4.88 |
||
|
22595W
|
22595W
MD739065
SPRING, M/T SYNCH KEY
|
MD739065 |
— | ||
|
22595W
|
22595W
MD742445 SPRING, M/T SYNCH KEY |
MD742445 |
US $5.88 |
||
|
22595X
|
22595X
MD728908
SPRING, M/T 3RD & 4TH SYNCH KEY
|
MD728908 |
— | ||
| replacement | |||||
|
22595X
|
22595X
MD739066 SPRING, M/T SYNCH KEY |
MD739066 |
US $4.38 |
||
|
22595X
|
22595X
MD739066 SPRING, M/T SYNCH KEY |
MD739066 |
US $4.38 |
||
|
22595X
|
22595X
MD742441 SPRING, M/T SYNCH KEY |
MD742441 |
US $5.88 |
||
|
22596V
|
22596V
MD730086 RING, M/T HIGH SPEED GEAR SYNCH |
MD730086 |
US $71.14 |
||
|
22596V
|
22596V
MD742541
RING, M/T SYNCH
|
MD742541 |
— | ||
| replacement | |||||
|
22596V
|
22596V
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596W
|
22596W
MD727565
RING, M/T SYNCH
|
MD727565 |
— | ||
|
22596W
|
22596W
MD742419 RING, M/T SYNCH |
MD742419 |
US $46.51 |
||
|
22596X
|
22596X
MD734842 RING, M/T SYNCH |
MD734842 |
US $44.40 |
||
|
22596X
|
22596X
MD741645
RING, M/T SYNCH
|
MD741645 |
— | ||
| replacement | |||||
|
22596X
|
22596X
MD742536 RING, M/T SYNCH |
MD742536 |
US $43.09 |
||
|
22596Y
|
22596Y
MD727453
RING, M/T HIGH SPEED GEAR SYNCH
|
MD727453 |
— | ||
|
22596Y
|
22596Y
MD742541
RING, M/T SYNCH
|
MD742541 |
— | ||
| replacement | |||||
|
22596Y
|
22596Y
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22597V
|
22597V
MD734268
KEY, M/T SYNCH
|
MD734268 |
— | ||
| replacement | |||||
|
22597V
|
22597V
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22597W
|
22597W
MD728902 KEY, M/T SYNCH |
MD728902 |
US $7.10 |
||
|
22597X
|
22597X
MD734268
KEY, M/T SYNCH
|
MD734268 |
— | ||
| replacement | |||||
|
22597X
|
22597X
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22989W
|
22989W
MD703779 SNAP RING, M/T POWER TRAIN1.4 |
MD703779 |
from US $6.16 |
||
|
22989W
|
22989W
MD703780 SNAP RING, M/T POWER TRAIN1.5 |
MD703780 |
US $5.20 |
||
|
22989W
|
22989W
MD703781 SNAP RING, M/T POWER TRAIN1.6 |
MD703781 |
US $5.03 |
||
|
22989X
|
22989X
MD723276 SNAP RING, M/T POWER TRAIN1.4 |
MD723276 |
US $8.62 |
||
|
22989X
|
22989X
MD723277 SNAP RING, M/T POWER TRAIN1.5 |
MD723277 |
US $7.66 |
||
|
22989X
|
22989X
MD723278
SNAP RING, M/T POWER TRAIN
|
MD723278 |
— | ||
|
22989X
|
22989X
MD723279
SNAP RING, M/T POWER TRAIN
|
MD723279 |
— | ||
|
22989X
|
22989X
MD730889 SNAP RING, M/T POWER TRAIN1.45 |
MD730889 |
US $7.25 |
||
|
22989X
|
22989X
MD730890
SNAP RING, M/T POWER TRAIN
|
MD730890 |
— | ||
|
22989X
|
22989X
MD730891
SNAP RING, M/T POWER TRAIN
|
MD730891 |
— | ||
|
22989X
|
22989X
MD730892 SNAP RING, M/T POWER TRAIN1.75 |
MD730892 |
US $7.25 |
||
|
22989Y
|
22989Y
MD724392 SNAP RING, M/T POWER TRAIN1.75 |
MD724392 |
US $4.44 |
||
|
22994
|
22994
MD731948 NUT, M/T POWER TRAINLock,22 |
MD731948 |
from US $10.12 |
||
