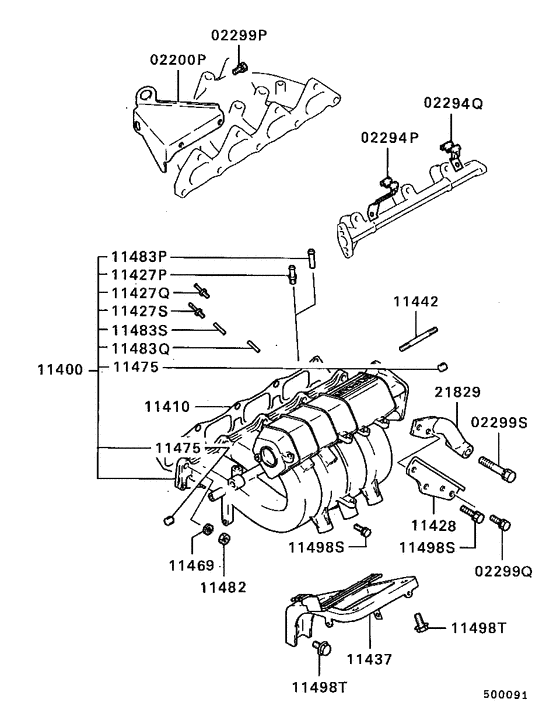

Inlet manifold (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1988 - 1989
- Sales region
- PUERTO RICO&GUAM
- Note
- PREMIUM LINE,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200P
|
02200P
MD132573 ENGINE HANGER |
MD132573 |
US $20.72 |
||
|
02294P
|
02294P
MD124863
CLAMP, ENG HANGER
|
MD124863 |
— | ||
|
02294Q
|
02294Q
MD124864
CLAMP, ENG HANGER
|
MD124864 |
— | ||
|
02299P
|
02299P
MF244249 BOLT, ENG HANGERWasher assembled,8x16 |
MF244249 |
US $2.19 |
||
|
02299Q
|
02299Q
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02299S
|
02299S
MF241319 BOLT, ENG HANGERWasher assembled,12x70 |
MF241319 |
US $4.51 |
||
|
11400
|
11400
MD127644
MANIFOLD,INLET
|
MD127644 |
— | ||
|
11400
|
11400
MD152338
MANIFOLD,INLET
|
MD152338 |
— | ||
|
11410
|
11410
MD117728 GASKET, INLET MANIFOLD |
MD117728 |
US $20.72 |
||
|
11410
|
11410
MD117729 GASKET, INLET MANIFOLD |
MD117729 |
US $14.06 |
||
|
11427P
|
11427P
MD000428
NIPPLE, CYLINDER HEAD
|
MD000428 |
— | ||
|
11427Q
|
11427Q
MD040973
JOINT, INLET MANIFOLD
|
MD040973 |
— | ||
|
11427S
|
11427S
MD000579
JOINT, INLET MANIFOLD
|
MD000579 |
— | ||
|
11428
|
11428
MD127988 BRACKET, INLET MANIFOLD TENSION ROD |
MD127988 |
US $9.18 |
||
|
11437
|
11437
MD125844 STAY, INLET MANIFOLD |
MD125844 |
US $80.66 |
||
|
11437
|
11437
MD127749
STAY,INLET MANIFOLD
|
MD127749 |
— | ||
|
11437
|
11437
MD127750
STAY,INLET MANIFOLD
|
MD127750 |
— | ||
|
11442
|
11442
MD127824 STUD, THROTTLE BODY8x65 |
MD127824 |
US $4.14 |
||
|
11442
|
11442
MD127825 STUD, THROTTLE BODY8x95 |
MD127825 |
US $3.70 |
||
|
11469
|
11469
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
11475
|
11475
MS661141 PLUG, CYLINDER HEADTaper,1/4 |
MS661141 |
US $1.92 |
||
|
11482
|
11482
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
11483P
|
11483P
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11483S
|
11483S
MD141033
NIPPLE,INLET MANIFOLD
|
MD141033 |
— | ||
|
11498S
|
11498S
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
11498S
|
11498S
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
11498T
|
11498T
MF140057 BOLT, INLET MANIFOLDFlange,10x18 |
MF140057 |
US $3.28 |
||
|
21829
|
21829
MD127987 ROD, T/M CASE TENSION |
MD127987 |
US $54.76 |
