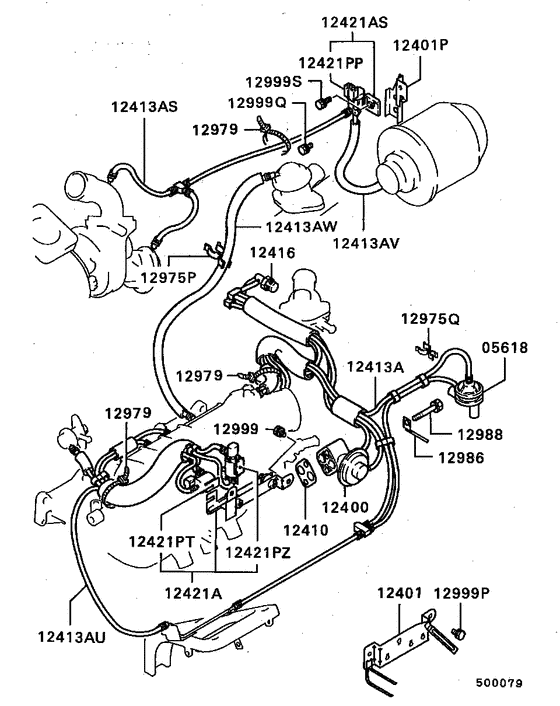

Emission control (FEDERAL) Diagram Mitsubishi MIRAGE
- Year
- 1988 - 1989
- Sales region
- MMNA
- Note
- PREMIUM LINE,5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD011227
VALVE, PURGE CONTROL
|
MD011227 |
— | ||
|
12400
|
12400
MD132987 VALVE, EGR |
MD132987 |
US $182.04 |
||
|
12401
|
12401
MD119953 BRACKET, EMISSION CONTROL EQUIP |
MD119953 |
US $63.64 |
||
|
12401P
|
12401P
MD129609
BRACKET,EMISSION CONTROL EQUIP
|
MD129609 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD133223
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD133223 |
— | ||
|
12413AS
|
12413AS
MD140326
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD140326 |
— | ||
|
12413AU
|
12413AU
MD133224
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD133224 |
— | ||
|
12413AV
|
12413AV
MD130779 HOSE ASSY, EMISSION VACUUM CONTROL |
MD130779 |
US $9.62 |
||
|
12413AW
|
12413AW
MD130710 HOSE ASSY, EMISSION VACUUM CONTROL |
MD130710 |
US $15.54 |
||
|
12416
|
12416
MD103867
THERMO-VALVE, EMISSION CONTROL
|
MD103867 |
— | ||
|
12421A
|
12421A
MD132910
VALVE,EMISSION SOLENOID
|
MD132910 |
— | ||
|
12421AS
|
12421AS
MD130772 VALVE, EMISSION SOLENOID |
MD130772 |
US $68.08 |
||
|
12421PP
|
12421PP
MD115466
VALVE, EMISSION SOLENOID
|
MD115466 |
— | ||
|
12421PT
|
12421PT
MD110681
VALVE, EMISSION SOLENOID
|
MD110681 |
— | ||
|
12421PZ
|
12421PZ
MD134751 VALVE, EMISSION SOLENOID |
MD134751 |
US $72.52 |
||
|
12975P
|
12975P
MD148395 CLIP, EMISSION CONTROL EQUIP |
MD148395 |
US $5.92 |
||
|
12975P
|
12975P
MS470465 CLIP, FUEL RETURN LINED=13-16.5 |
MS470465 |
US $3.69 |
||
|
12975Q
|
12975Q
MS470393 CLIP, FUEL RETURN LINE6-16.5 |
MS470393 |
US $4.14 |
||
|
12979
|
12979
MB084139 BAND, FUEL TANKL=270 |
MB084139 |
US $4 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MD129688 BAND, AIR CLEANER275 |
MD129688 |
US $7.25 |
||
|
12986
|
12986
MS470058 CLIP, ROCKER COVERL=60 |
MS470058 |
from US $1.74 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF244822 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x12 |
MF244822 |
US $2.60 |
||
|
12999P
|
12999P
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
12999Q
|
12999Q
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
12999S
|
12999S
MF244826 BOLTWasher assembled,6x20 |
MF244826 |
from US $1.03 |
||
