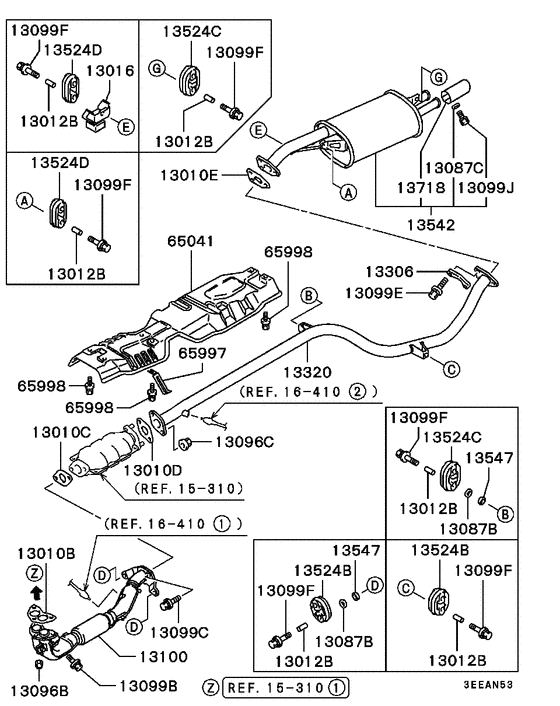

Exhaust pipe & muffler (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1994 - 1996
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- MEDIUM LINE
- body
- SEDAN/HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010E
|
13010E
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $6.20 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13016
|
13016
MB924337 DAMPER, EXHAUST PIPE |
MB924337 |
US $40.70 |
||
|
13087B
|
13087B
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
13087C
|
13087C
MS450024 WASHER, EXHAUST PIPEPlain,6 |
MS450024 |
US $3.97 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13099B
|
13099B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099C
|
13099C
MS240118 BOLT, ENG SUPPORT RODWasher assembled,12x30 |
MS240118 |
from US $1.62 |
||
|
13099E
|
13099E
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099J
|
13099J
MU240115 BOLT, EXHAUST PIPE6x10 |
MU240115 |
US $3.28 |
||
|
13100
|
13100
MB810553
PIPE,EXHAUST,FR
|
MB810553 |
— | ||
|
13306
|
13306
MB549111 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549111 |
US $8.88 |
||
|
13320
|
13320
MB924590
PIPE,EXHAUST,CTR
|
MB924590 |
— | ||
|
13524B
|
13524B
MB906128 HANGER, EXHAUST MUFFLER |
MB906128 |
from US $6.20 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB906121 HANGER, EXHAUST MUFFLER |
MB906121 |
US $7.39 |
||
|
13542
|
13542
MR160145 MUFFLER, EXHAUST MAIN |
MR160145 |
US $413.50 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13718
|
13718
MB868897 DIFFUSER, EXHAUST TAIL PIPE |
MB868897 |
US $85.84 |
||
|
65041
|
65041
MB830950 PROTECTOR, UNDER FR FLOOR HEAT, FR |
MB830950 |
US $85.10 |
||
|
65997
|
65997
MB056748 CLIP, EMISSION CONTROL EQUIP80 |
MB056748 |
US $4.29 |
||
|
65998
|
65998
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
|
16 410
|
Electrical control
16 410
|
||||
