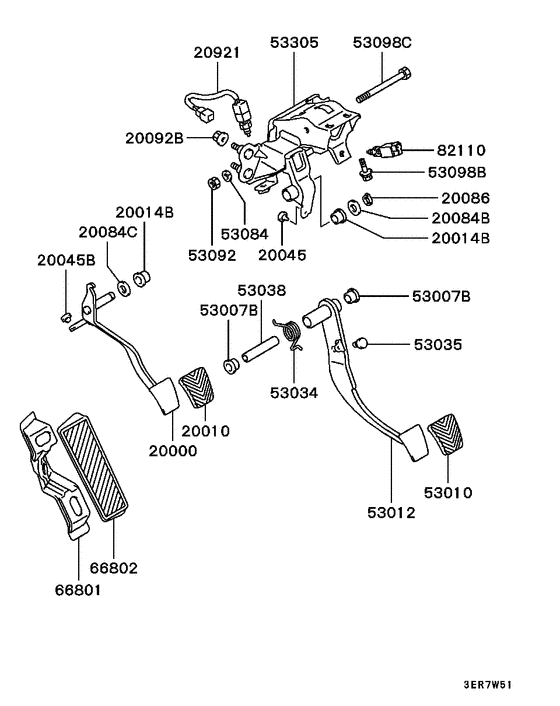

Brake & clutch pedal (M/T) Diagram Mitsubishi MIRAGE
- Year
- 1992 - 1996
- Sales region
- MMNA
- Note
- LOW LINE,5FM/T FED
- transmission
- 5FM/T
- grade
- LOW LINE
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB807259
PEDAL,CLUTCH
|
MB807259 |
— | ||
|
20010
|
20010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014B
|
20014B
MB003682 BUSHING, CLUTCH PEDAL14x10 |
MB003682 |
from US $2.40 |
||
|
20014B
|
20014B
MB500966 BUSHING, BRAKE PEDAL14x10 |
MB500966 |
US $4.14 |
||
|
20045
|
20045
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
20045
|
20045
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
20045B
|
20045B
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
20084B
|
20084B
MF450008 WASHER, ENG MOUNTINGPlain,14 |
MF450008 |
from US $1.01 |
||
|
20084C
|
20084C
MF451107 WASHER, FUEL FILLER LID LOCKINGWave,14 |
MF451107 |
US $3.28 |
||
|
20086
|
20086
MF522005 SNAP RING, CLUTCH PEDAL14 |
MF522005 |
US $2.22 |
||
|
20092B
|
20092B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20921
|
20921
MB605790
SWITCH,CLUTCH
|
MB605790 |
— | ||
|
53007B
|
53007B
MB003682 BUSHING, CLUTCH PEDAL14x10 |
MB003682 |
from US $2.40 |
||
|
53007B
|
53007B
MB500966 BUSHING, BRAKE PEDAL14x10 |
MB500966 |
US $4.14 |
||
|
53010
|
53010
MA126093 PAD, BRAKE PEDAL68x48 |
MA126093 |
from US $3.47 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MB807255
PEDAL,BRAKE
|
MB807255 |
— | ||
|
53034
|
53034
MB911101
SPRING,BRAKE PEDAL RETURN
|
MB911101 |
— | ||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53038
|
53038
MB807265
LEVER,CLUTCH CABLE
|
MB807265 |
— | ||
|
53084
|
53084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
53092
|
53092
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
53098B
|
53098B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53098B
|
53098B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
53098C
|
53098C
MB911455
BOLT,BRAKE PEDAL
|
MB911455 |
— | ||
|
53305
|
53305
MB911500
MEMBER,PEDAL SUPPORT
|
MB911500 |
— | ||
|
66801
|
66801
MB907818
BRACKET,FOOTREST
|
MB907818 |
— | ||
|
66802
|
66802
MB879768
FOOTREST
|
MB879768 |
— | ||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $9.52 |
||
