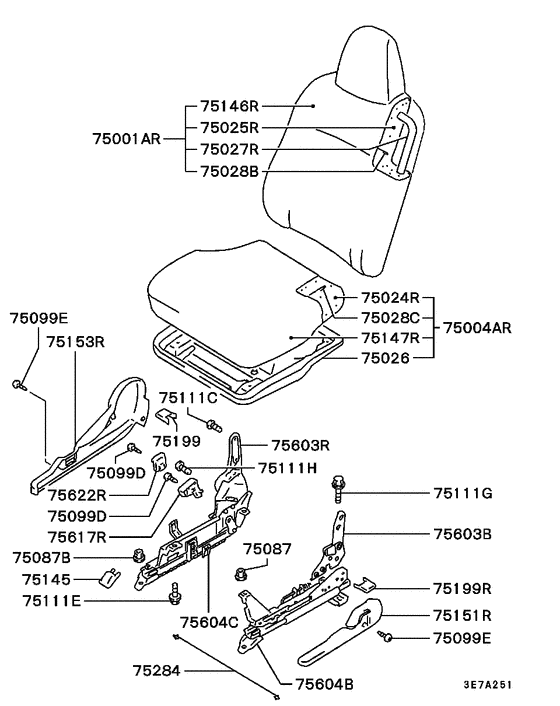

Front seat (HIGH BACK..RH) Diagram Mitsubishi MIRAGE
- Year
- 1992 - 1996
- Sales region
- MMNA
- Note
- LOW LINE,5FM/T FED
- transmission
- 5FM/T
- grade
- LOW LINE
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR703157
BACK ASSY,FR SEAT,RH
|
MR703157 |
— | ||
|
75001AR
|
75001AR
MR703158
BACK ASSY,FR SEAT,RH
|
MR703158 |
— | ||
|
75001AR
|
75001AR
MR726291
BACK ASSY,FR SEAT,RH
|
MR726291 |
— | ||
|
75001AR
|
75001AR
MR726292
BACK ASSY,FR SEAT,RH
|
MR726292 |
— | ||
|
75004AR
|
75004AR
MR703109
CUSHION ASSY,FR SEAT,RH
|
MR703109 |
— | ||
|
75004AR
|
75004AR
MR703110
CUSHION ASSY,FR SEAT,RH
|
MR703110 |
— | ||
|
75004AR
|
75004AR
MR726281
CUSHION ASSY,FR SEAT,RH
|
MR726281 |
— | ||
|
75004AR
|
75004AR
MR726282
CUSHION ASSY,FR SEAT,RH
|
MR726282 |
— | ||
|
75024R
|
75024R
MB940346
PAD,FR SEAT CUSHION,RH
|
MB940346 |
— | ||
|
75025R
|
75025R
MB916404 PAD, FR SEAT BACK, RH |
MB916404 |
US $187.96 |
||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $62.24 |
||
|
75027R
|
75027R
MB902404
FRAME,FR SEAT BACK,RH
|
MB902404 |
— | ||
|
75028B
|
75028B
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028B
|
75028B
MB592073 WIRE, FR SEAT TRIMMING1.6x420 |
MB592073 |
US $2.07 |
||
|
75028C
|
75028C
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028C
|
75028C
MB144642 WIRE, FR SEAT TRIMMING2.0x400 |
MB144642 |
US $2.37 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $2.60 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.56 |
||
|
75145
|
75145
MB778517
COVER, FR SEAT ANCHOR
|
MB778517 |
— | ||
|
75145
|
75145
MB784487 COVER, FR SEAT ANCHOR |
MB784487 |
US $3.85 |
||
|
75145
|
75145
MR759757 COVER, FR SEAT ANCHOR |
MR759757 |
US $3.69 |
||
|
75146R
|
75146R
MR703292
COVER,FR SEAT BACK,RH
|
MR703292 |
— | ||
|
75146R
|
75146R
MR703293
COVER,FR SEAT BACK,RH
|
MR703293 |
— | ||
|
75146R
|
75146R
MR726303
COVER,FR SEAT BACK,RH
|
MR726303 |
— | ||
|
75146R
|
75146R
MR726304
COVER,FR SEAT BACK,RH
|
MR726304 |
— | ||
|
75147R
|
75147R
MB979025 COVER, FR SEAT CUSHION, RH |
MB979025 |
US $425.15 |
||
|
75147R
|
75147R
MR703261
COVER,FR SEAT CUSHION,RH
|
MR703261 |
— | ||
|
75147R
|
75147R
MR724572 COVER, FR SEAT CUSHION, RH |
MR724572 |
US $425.15 |
||
|
75147R
|
75147R
MR726268
COVER,FR SEAT CUSHION,RH
|
MR726268 |
— | ||
|
75153R
|
75153R
MB969477 COVER, FR SEAT SIDE SHIELD, RH |
MB969477 |
US $33.52 |
||
|
75153R
|
75153R
MB975085
COVER,FR SEAT SIDE SHIELD,RH
|
MB975085 |
— | ||
|
75153R
|
75153R
MR703180
COVER,FR SEAT SIDE SHIELD,RH
|
MR703180 |
— | ||
|
75153R
|
75153R
MR703181
COVER,FR SEAT SIDE SHIELD,RH
|
MR703181 |
— | ||
|
75153R
|
75153R
MR734697 COVER, FR SEAT SIDE SHIELD, RH |
MR734697 |
US $22.94 |
||
|
75199
|
75199
MB873969 COVER, FR SEAT ANCHOR |
MB873969 |
US $4.59 |
||
|
75199
|
75199
MB960264 COVER, FR SEAT ANCHOR |
MB960264 |
US $4.59 |
||
|
75199
|
75199
MR748265 COVER, FR SEAT ANCHOR |
MR748265 |
US $4.59 |
||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $4 |
||
|
75603B
|
75603B
MB916551
ADJUSTER,FR SEAT RECLINING,RH
|
MB916551 |
— | ||
|
75603R
|
75603R
MB592749 ADJUSTER, FR SEAT RECLINING, RH |
MB592749 |
US $208.68 |
||
|
75603R
|
75603R
MB592795
ADJUSTER, FR SEAT RECLINING, RH
|
MB592795 |
— | ||
|
75604B
|
75604B
MB916554
ADJUSTER,FR SEAT SLIDE
|
MB916554 |
— | ||
|
75604C
|
75604C
MB874482 ADJUSTER, FR SEAT SLIDE |
MB874482 |
US $86.58 |
||
|
75617R
|
75617R
MB797369 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB797369 |
US $7.40 |
||
|
75617R
|
75617R
MB797370 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB797370 |
US $7.40 |
||
|
75617R
|
75617R
MR734689 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR734689 |
from US $5.60 |
||
|
75622R
|
75622R
MB797365 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB797365 |
US $13.32 |
||
|
75622R
|
75622R
MB797366 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MB797366 |
US $13.32 |
||
|
75622R
|
75622R
MR734687 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR734687 |
US $13.32 |
