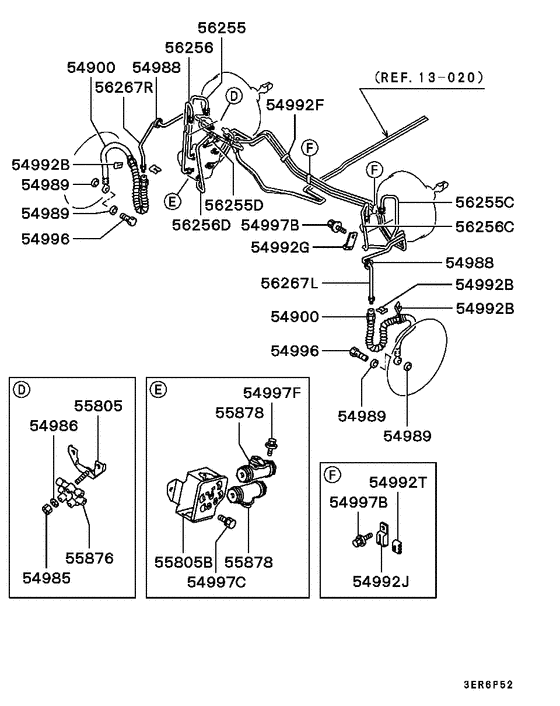

Brake line (FRONT) Diagram Mitsubishi MIRAGE
- Year
- 1992 - 1996
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL(DIESEL-TURBO),5FM/T
- transmission
- 5FM/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MB857426 HOSE, FR BRAKE BODY SIDE242+190 |
MB857426 |
US $41.04 |
||
|
54900
|
54900
MR129799 HOSE, FR BRAKE BODY SIDE242+190 |
MR129799 |
US $42.92 |
||
|
54900
|
54900
MR129882 HOSE, FR BRAKE252+200 |
MR129882 |
US $49.93 |
||
|
54985
|
54985
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54986
|
54986
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54992B
|
54992B
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992F
|
54992F
MB344693 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MB344693 |
from US $2.63 |
||
|
54992G
|
54992G
MB500569 CLIP, FRAME BRAKE FLUID LINE4.76 |
MB500569 |
US $2.96 |
||
|
54992J
|
54992J
MB668000 CLIP, BRAKE FLUID LINE |
MB668000 |
US $6.96 |
||
|
54992T
|
54992T
MB668684 CLIP, BRAKE FLUID LINE4.7-4.7-4.7 |
MB668684 |
from US $1.66 |
||
|
54996
|
54996
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $5.58 |
||
|
54997B
|
54997B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
54997C
|
54997C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
54997F
|
54997F
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
55805
|
55805
MB277015
BRACKET, BRAKE FLUID LINE VALVE
|
MB277015 |
— | ||
|
55805B
|
55805B
MB928774 BRACKET, BRAKE FLUID LINE VALVE |
MB928774 |
US $63.64 |
||
|
55876
|
55876
MB699641 VALVE, BRAKE FLUID PROPORTIONING |
MB699641 |
US $86.58 |
||
|
55878
|
55878
MB587493 VALVE, BRAKE CHANGE |
MB587493 |
US $768.77 |
||
|
56255
|
56255
MB928766 TUBE, BRAKE M/CYL PRIMARY |
MB928766 |
US $10.95 |
||
|
56255C
|
56255C
MB928770 TUBE, BRAKE M/CYL PRIMARY |
MB928770 |
US $31.82 |
||
|
56255D
|
56255D
MB928772 TUBE, BRAKE M/CYL PRIMARY |
MB928772 |
US $7.99 |
||
|
56256
|
56256
MB928767 TUBE, BRAKE M/CYL SECONDARY |
MB928767 |
US $11.40 |
||
|
56256C
|
56256C
MB928771 TUBE, BRAKE M/CYL SECONDARY |
MB928771 |
US $37 |
||
|
56256D
|
56256D
MB928773 TUBE, BRAKE M/CYL SECONDARY |
MB928773 |
US $10.80 |
||
|
56267L
|
56267L
MB928768 TUBE, FR BRAKE, LH |
MB928768 |
US $30.34 |
||
|
56267R
|
56267R
MB699491 TUBE, FR BRAKE, RH |
MB699491 |
US $21.89 |
||
|
